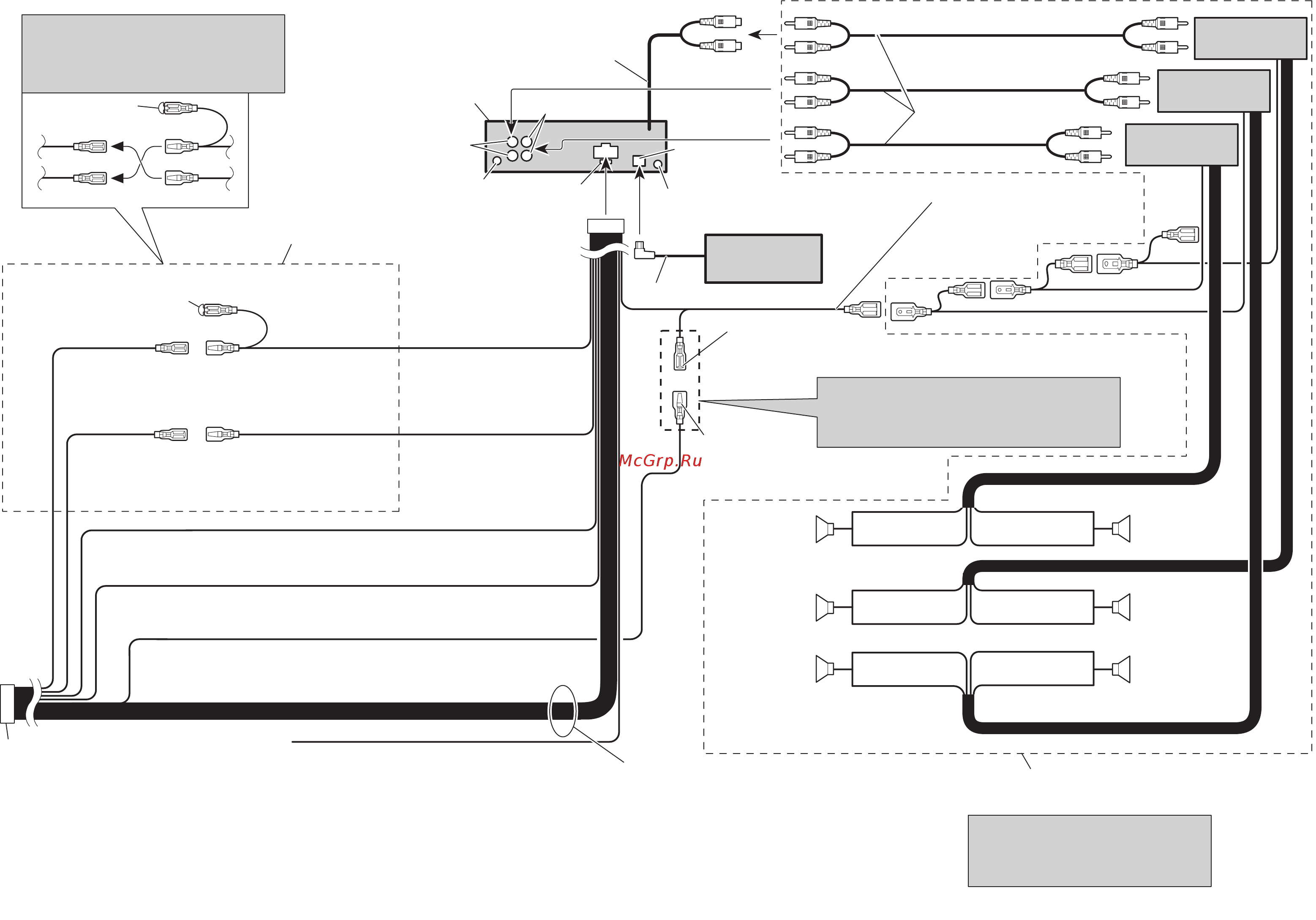

1*
2*
4*
3*
5*
11.
3. Subwoofer output or
non fading output
4. Antenna jack
1. This product
2. Front output
5. Fuse
7. IP-BUS input
(Blue)
Note:
Depending on the kind of vehicle, the function
of 3* and 5* may be different. In this case, be
sure to connect 2* to 5* and 4* to 3*.
12. Connect leads of the same
color to each other.
13. Cap (1*)
When not using this terminal,
do not remove the cap.
14. Yellow (3*)
Back-up
(or accessory)
15. Yellow (2*)
To terminal always supplied
with power regardless of
ignition switch position.
16. Red (5*)
Accessory
(or back-up)
17. Red (4*)
To electric terminal controlled
by ignition switch (12 V DC)
ON/OFF.
18. Orange/white
To lighting switch terminal.
19. Black (ground)
To vehicle (metal) body.
20. ISO connector
Note:
In some vehicles, the ISO connector may be
divided into two. In this case, be sure to
connect to both connectors.
21. Yellow/black
If you use a cellular telephone, connect it via the
Audio Mute lead on the cellular telephone. If not,
keep the Audio Mute lead free of any connections.
22. Speaker leads
White : Front left +
White/black: Front left ≠
Gray : Front right +
Gray/black : Front right ≠
Green : Rear left + or Subwoofer +
Green/black: Rear left ≠ or Subwoofer ≠
Violet : Rear right + or Subwoofer +
Violet/black: Rear right ≠ or Subwoofer ≠
25. Blue/white
To system control terminal of
the power amp (max. 300 mA
12 V DC).
27. Blue/white (7*)
To Auto-antenna relay control terminal
(max. 300 mA 12 V DC).
28. Blue/white (6*)
29. The pin position of the ISO connector will differ
depends on the type of vehicle. Connect 6* and 7*
when Pin 5 is an antenna control type. In another
type of vehicle, never connect 6* and 7*.
9. IP-BUS cable
10.Multi-CD player
(sold separately)
≠
+
≠
+
+
≠
+
≠
≠
+
≠
+
6. Rear output
(REAR OUTPUT)
8. Jack for Wired Remote Control
Please see the Instruction Manual for the
Wired Remote Control (sold separately).
15 cm
35. Use this for connections when you have the separately
available amplifier.
36.
23.Connecting cords
with RCA pin plugs
(sold separately)
26. System remote control
34. Subwoofer
31. Rear speaker
30. Front speaker
32. Left 33. Right
Note:
Change the Initial Setting of this Product
(refer to the Operation Manual). The
subwoofer output of this unit is monaural.
24.Power amp
(sold separately)
24.Power amp
(sold separately)
24.Power amp
(sold separately)
30. Front speaker
31. Rear speaker
