Hyundai H-LCD1502 [11/30] Osd operations

OSD operations

Menu Operation

1. Press MENU button to display the main menu.

2. Press VOLUME UP/DOWN (VOL+/-) buttons to enter the needed menu.

3. Press PROGRAM DOWN (PROG-) button to highlight the desired menu/item.

4. Press VOLUME UP/DOWN (VOL+/-) buttons to adjust the setting.

5. Press MENU button to save setting and go back to last menu.

6. Press MENU button to exit the menu.

Note: The buttons on the front panel have the same functions as the corresponding RC buttons.

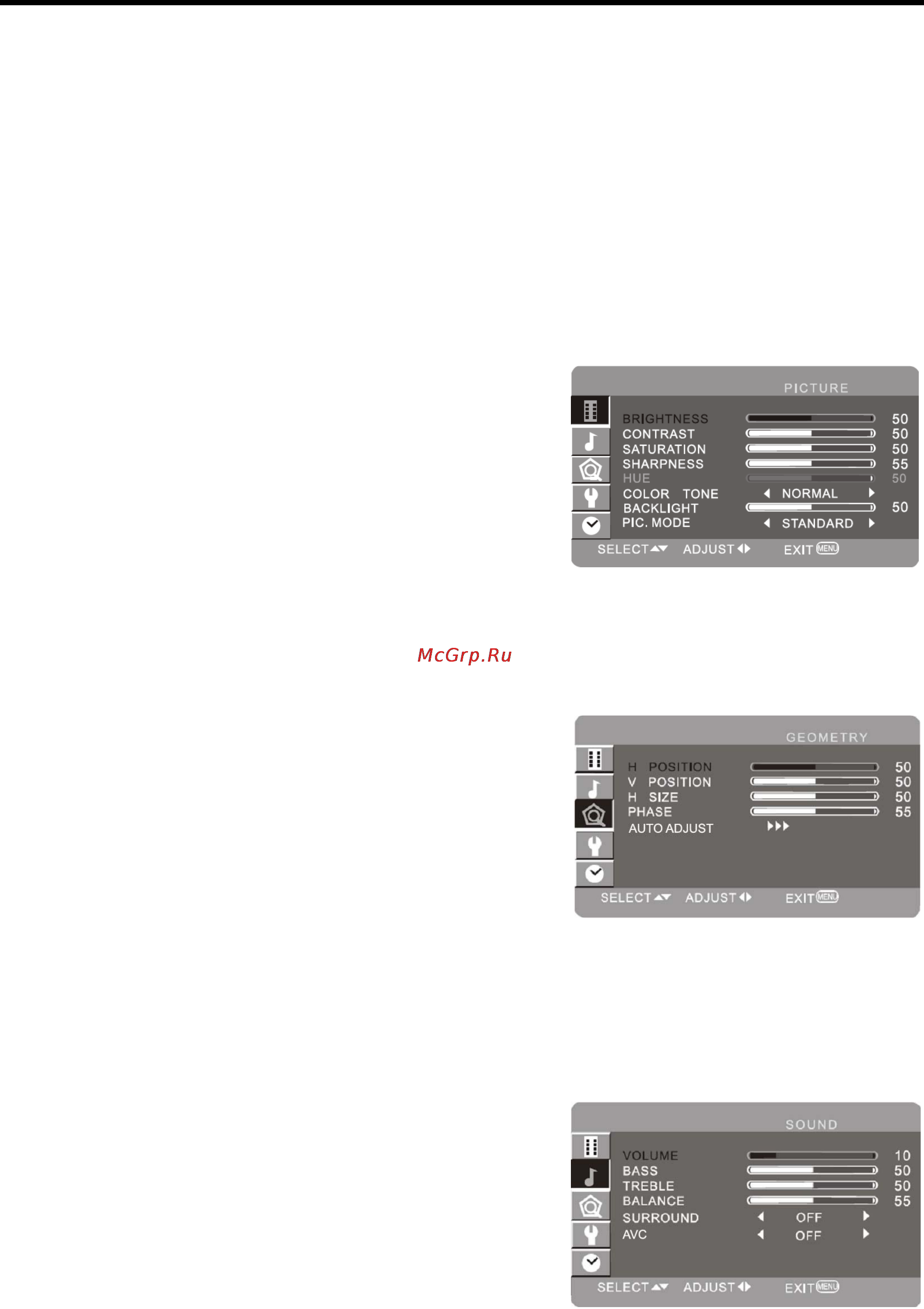

PICTURE MENU

Enter Picture menu. You can adjust following parameters:

brightness, contrast (to adjust the difference between the

light and dark areas of the picture), saturation (to adjust the

richness of the color), sharpness, hue, color tone, backlight

(to adjust the level of back light, depending on room

lighting), picture mode (to adjust the brightness, contrast,

saturation and sharpness of the picture simultaneously).

Notes: Saturation and sharpness are not available in PC mode. Hue is only available in NTSC

mode. For Color Tone: Cool is for a more blue palette of picture colors, Warm is for a more red

palette of picture colors, and Normal is between the two. Personal is only available in PC mode.

GEOMETRY MENU

Enter Geometry menu. The menu is only available in PC

and component input modes. You can adjust following

parameters: H-position (to adjust the horizontal position of

the picture), V-position (to adjust the vertical position of the

picture), H-size (to adjust the sampling frequency of A/D),

Phase (to adjust the sampling phase of A/D), AUTO (to

adjust the screen display to the best state automatically).

Notes: For H-size: the option is usually adjusted with H-position and V-position; this can make

picture get better quality. You also can use AUTO function to make picture better. For Phase: you

can adjust this value accordingly if there are close bright dots on the picture or linear shimmer

phenomenon happens.

SOUND MENU

Enter Sound menu. You can adjust following parameters:

volume, bass, treble, balance (to adjust how much loudness

is sent to the left and right speaker), surround (ON/OFF),

AV (auto volume level function ON/OFF).

Note: Surround and AV are not available in TV mode.
