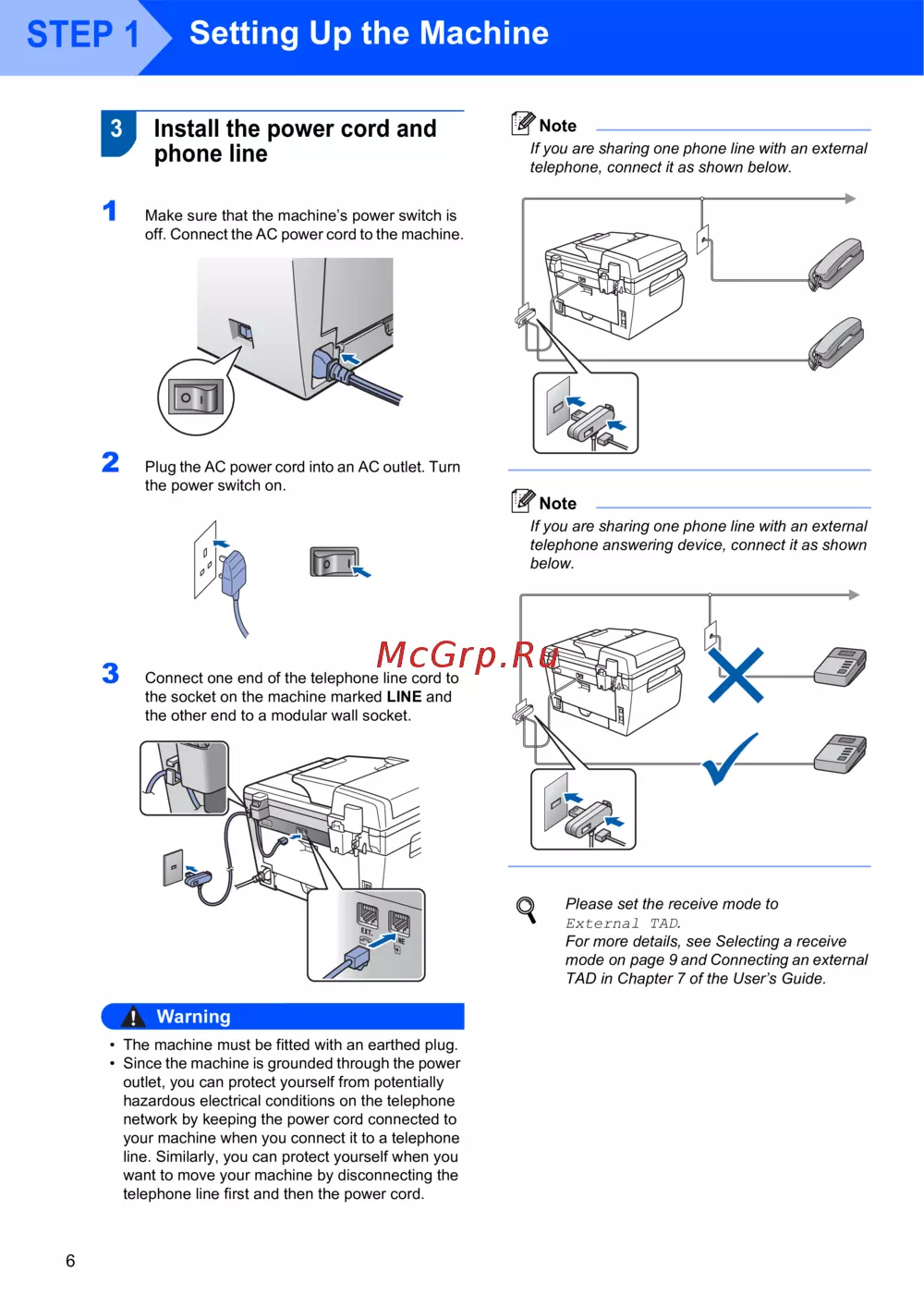

Brother MFC-7440N [8/32] Step 1

Setting Up the Machine

STEP 1

3 Install the power cord and

phone line

1 Make sure that the machine’s power switch is

off. Connect the AC power cord to the machine.

2 Plug the AC power cord into an AC outlet. Turn

the power switch on.

3 Connect one end of the telephone line cord to

the socket on the machine marked LINE and

the other end to a modular wall socket.

Warning

• The machine must be fitted with an earthed plug.

• Since the machine is grounded through the power

outlet, you can protect yourself from potentially

hazardous electrical conditions on the telephone

network by keeping the power cord connected to

your machine when you connect it to a telephone

line. Similarly, you can protect yourself when you

want to move your machine by disconnecting the

telephone line first and then the power cord.

Note

If you are sharing one phone line with an external

telephone, connect it as shown below.

Note

If you are sharing one phone line with an external

telephone answering device, connect it as shown

below.

Please set the receive mode to

External TAD.

For more details, see Selecting a receive

mode on page 9 and Connecting an external

TAD in Chapter 7 of the User’s Guide.
