1.3 Appearance

1.3.1 The Front Panel

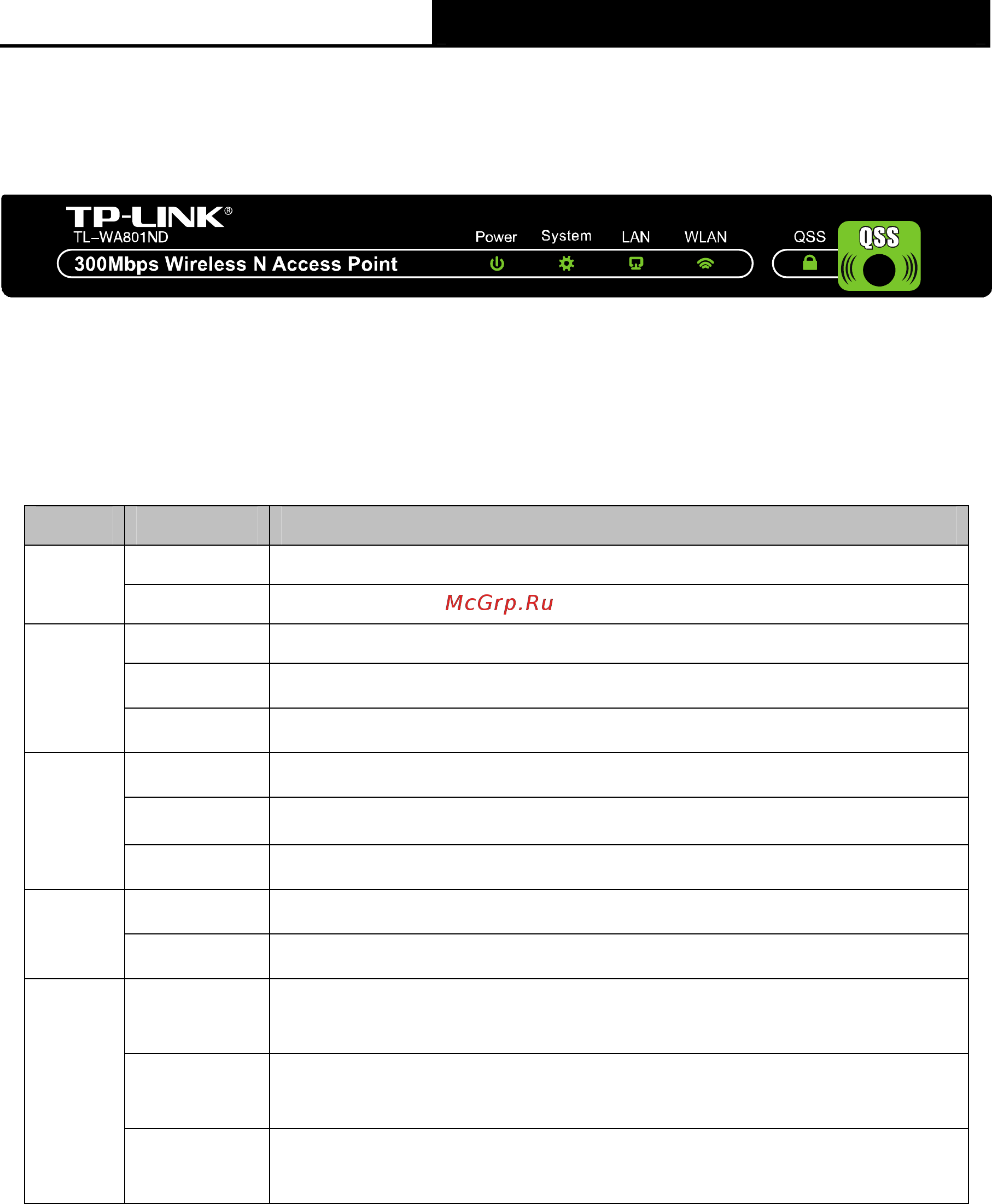

Figure 1-1

The front panel of the TL-WA801ND consists of several LED indicators, which is designed to

indicate connections. View from left to right, Table 1-1 describes the LEDs o

n the front panel of the

device.

LED Explanation

Name Status Indication

Off No Power

Power

On Power on

Off The device has a system error

The device is initialising

System

Flashing

The device is working properly

Off

There is no device linked to the corresponding port

There is a device linked to the corresponding port but no activity

LAN

Flashing

There is an active device linked to the corresponding port

Off

The Wireless function is disabled

WLAN

Flashing

The Wireless function is enabled

Slow Flash

A wireless device is connecting to the network by QSS function.

This process will last in the first 2 minutes.

A wireless device has been successfully added to the network by

QSS function.

QSS

Quick Flash

A wireless device failed to be added to the network by QSS

function.

Table 1-1
