V-AVM700
8

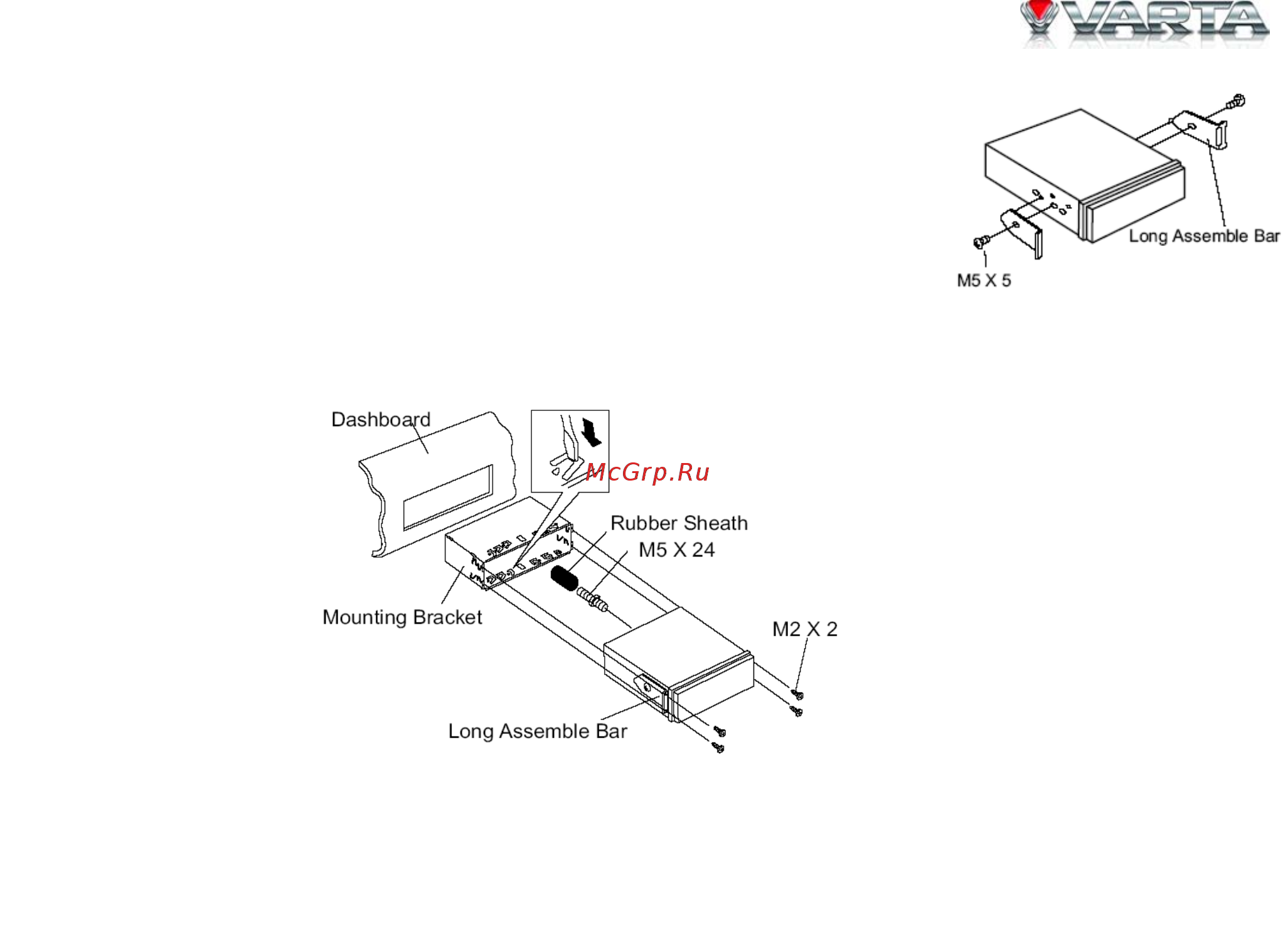

Installation Method A
1. Insert mounting bracket into dash board, choose appropriate mounting tab
according to the gap width, bending the mounting tab outwards with a
screwdriver to fix the mounting bracket in place.
2. Use 2 pieces of M5X5 cone shaped screw to fix two assemble bars on both
sides of the unit.
3. Screw in 1 piece of M5X24 to the hole of the unit back and put on a rubber
sheath over the screw.
4. Insert the unit into the bracket, fasten the M4X6 screw to the fireproofing board available at the back of the
dashboard, and use 4 pieces of M2X2 screw to lock the assemble bars and the mounting bracket in position.
Note: According to the depth of the opening, use different length of assemble bar accordingly. If the opening is too
shallow, the monitor may be extended out 10 mm from the dashboard.
