2.2 Rear Panel

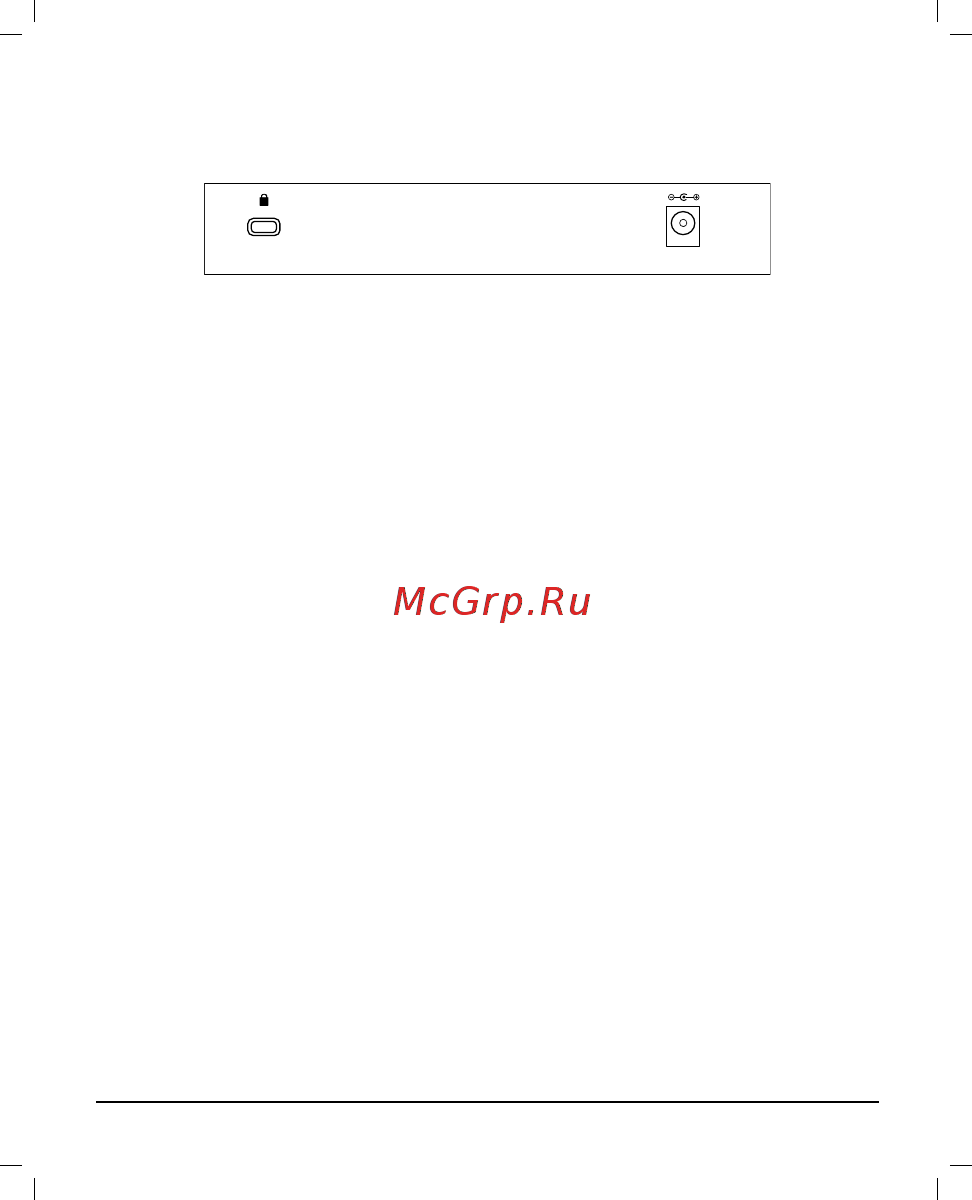

Figure 2-2 TL-SG108 Switch Rear Panel

The following parts are located on the rear panel:

 Kensington Security Slot: The switch provides one security slot.

 Power socket: The power socket, located at the right side of the

rear panel, is where you will connect the power adapter. Please

use the power adapter provided with the TL-SG108 switch.

Chapter 3 Installation

The switch can be either located on a desktop or mounted on a wall.

3.1 Mounting the Switch on a Desk

To locate the switch on a desktop, please follow these steps:

1) Place the switch on a flat desk.

2) Inspect the Power Adapter carefully and make sure that it is

properly connected to a power source.

3) Ensure adequate ventilation space around the switch for

dissipating heat and air.

Note:

Please avoid any heavy thing placed on the switch.
