V-AVM651F

Mid Center Freq: you should select different Mid Center Frequency

according to different sources to get a better Mid effect (500Hz, 1.0kHz,

1.5kHz, 2.0kHz).

Mid Q-Factor: change the sharpness of the Mid output (1.0, 2.0). The larger

the Q-Factor is, the sharper the Mid.

Treble Center Freq: according to audio source disks, select the treble center

frequency to get the best treble effect (10kHz, 12.5kHz, 15kHz, 17.5 kHz).

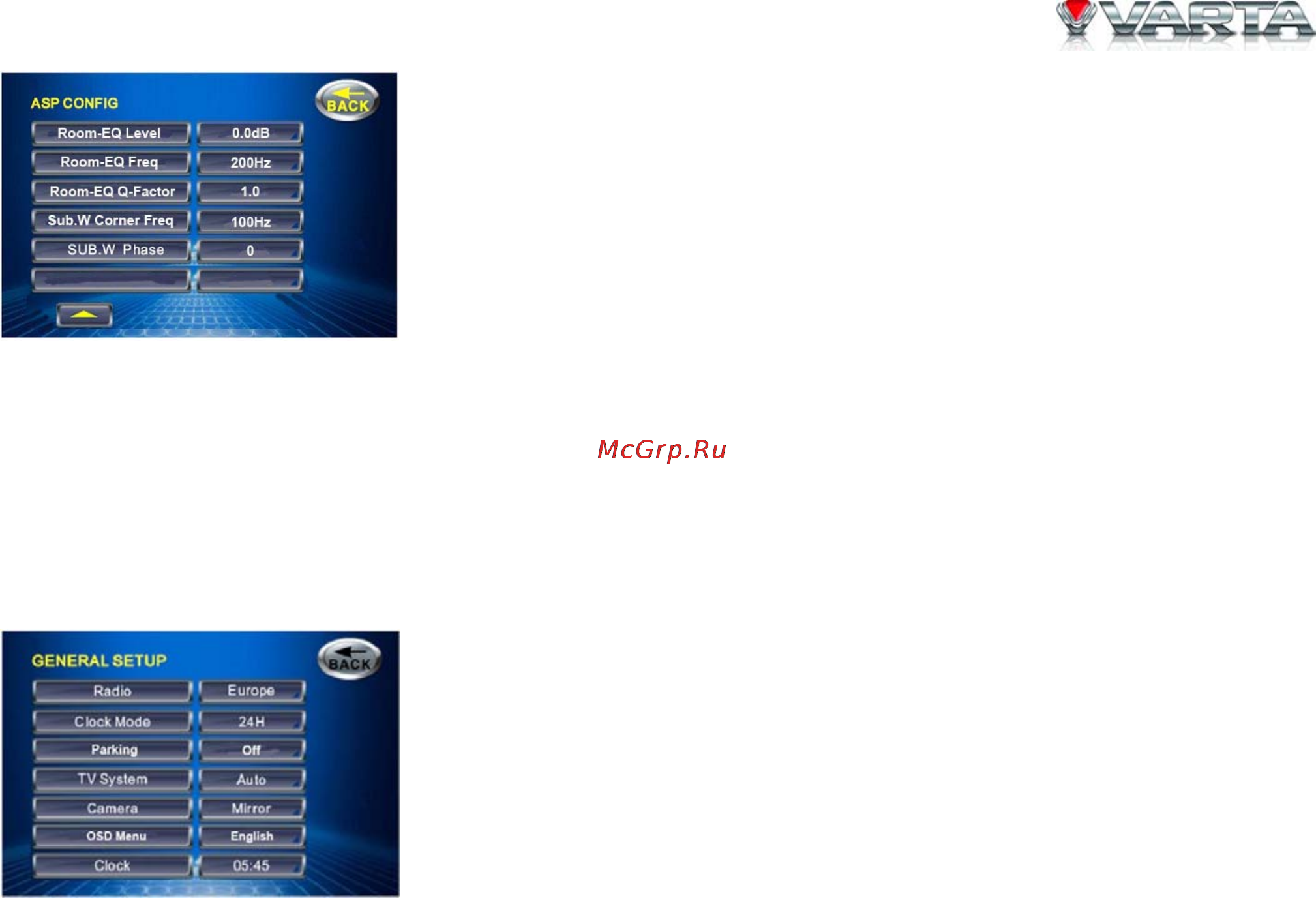

Room-EQ Level: adjust the gain of Room EQ (0.0dB, 1.0dB, 2.0dB, 3.0dB, 4.0dB, 5.5dB, 7.0dB, 9.0dB).

Room-EQ Freq: adjust the center frequency of Room EQ (180Hz, 200Hz, 220Hz, 240Hz).

Room-EQ Q-Factor: adjust the Q-factor of Room EQ (1.0, 2.0).

Sub. W Corner Freq: Set a cut-off frequency of the subwoofer’s low pass filter (50, 60, 80, 100, 120Hz).

Sub. W Phase: Set an output phase of the subwoofer’s low pass filter (0D, 180D).

General setup

Radio: select the radio system: USA, S. America 1, Arabia, China, S. America

2, Europe, Korea, OIRT.

Clock mode: select the time format: 12 hours, 24 hours.

Parking: select the parking image mode: On (image is displayed when the car

has been parked only), Off (image is displayed all the time).

TV system: Auto (the color signal output is switched automatically according

to the recording system of the current disc), NTSC, PAL.
