Chapter 3. Identifying External Components

This Chapter describes the front panel, rear panel and LED indicators of the Switch.

3.1 Front Panel

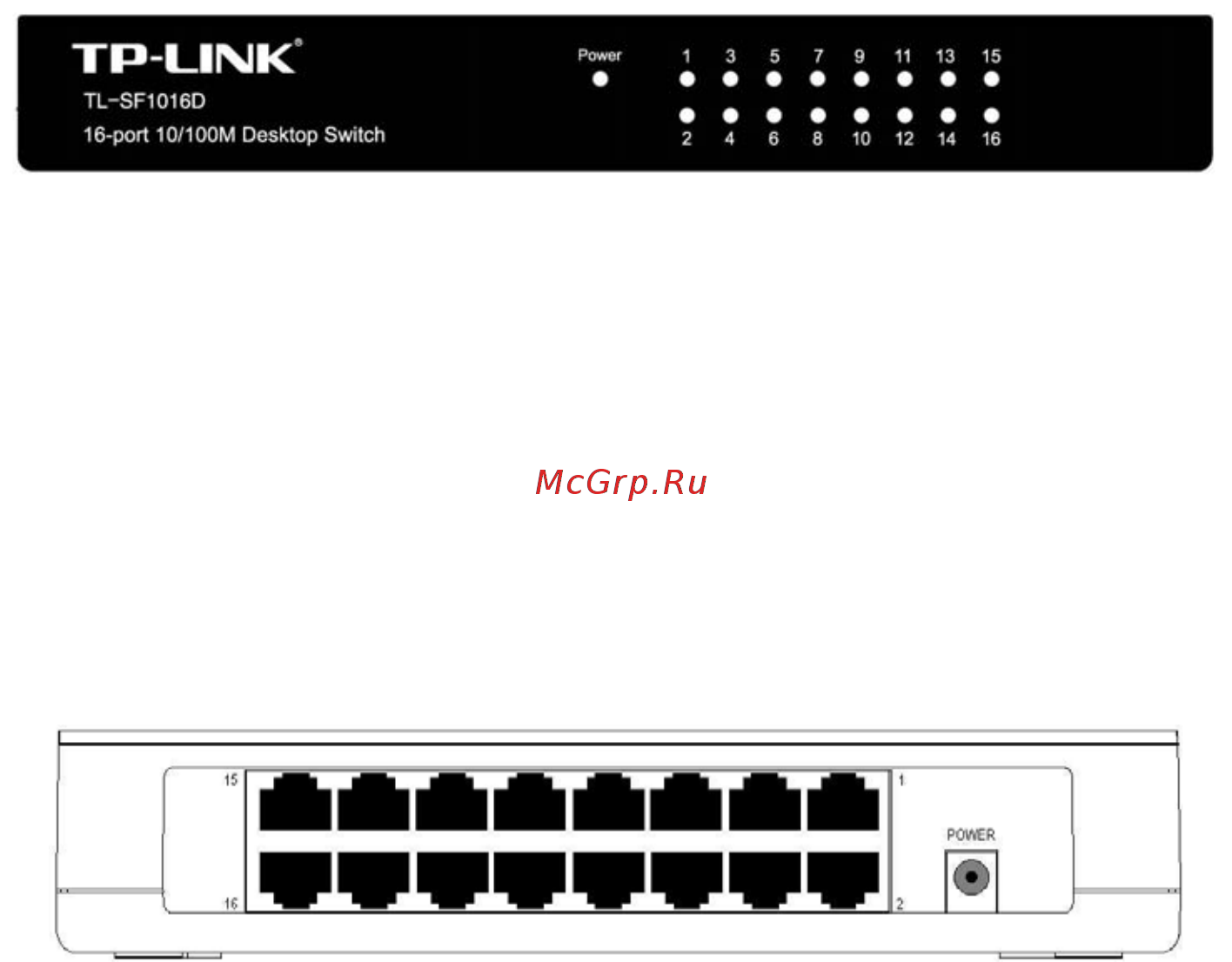

Figure 3-1 TL-SF1016D Switch Front Panel

The Switch’s LEDs are located on the front panel.

¾ Power LED:

This indicator will light up when the Switch powers on.

¾ LEDs (1-16):

One LED indicator will light green when a device is connected to the

corresponding port. It flashes when data is being transmitted or received

on the connection.

3.2 Rear Panel

Figure 3-2 TL-SF1016D Switch Rear Panel

The following parts are located on the rear panel:

¾ Power:

The Power socket is where you will connect the power adapter. Please use

the power adapter provided with this TL-SF1016D Switch.

¾ Port (1-16):

The TL-SF1016D Switch is equipped with 16 10/100Mbps Auto-Negociation

RJ45 ports where you will connect your network devices. The working

status can be indicated by the corresponding LEDs on the front panel.
