NC450

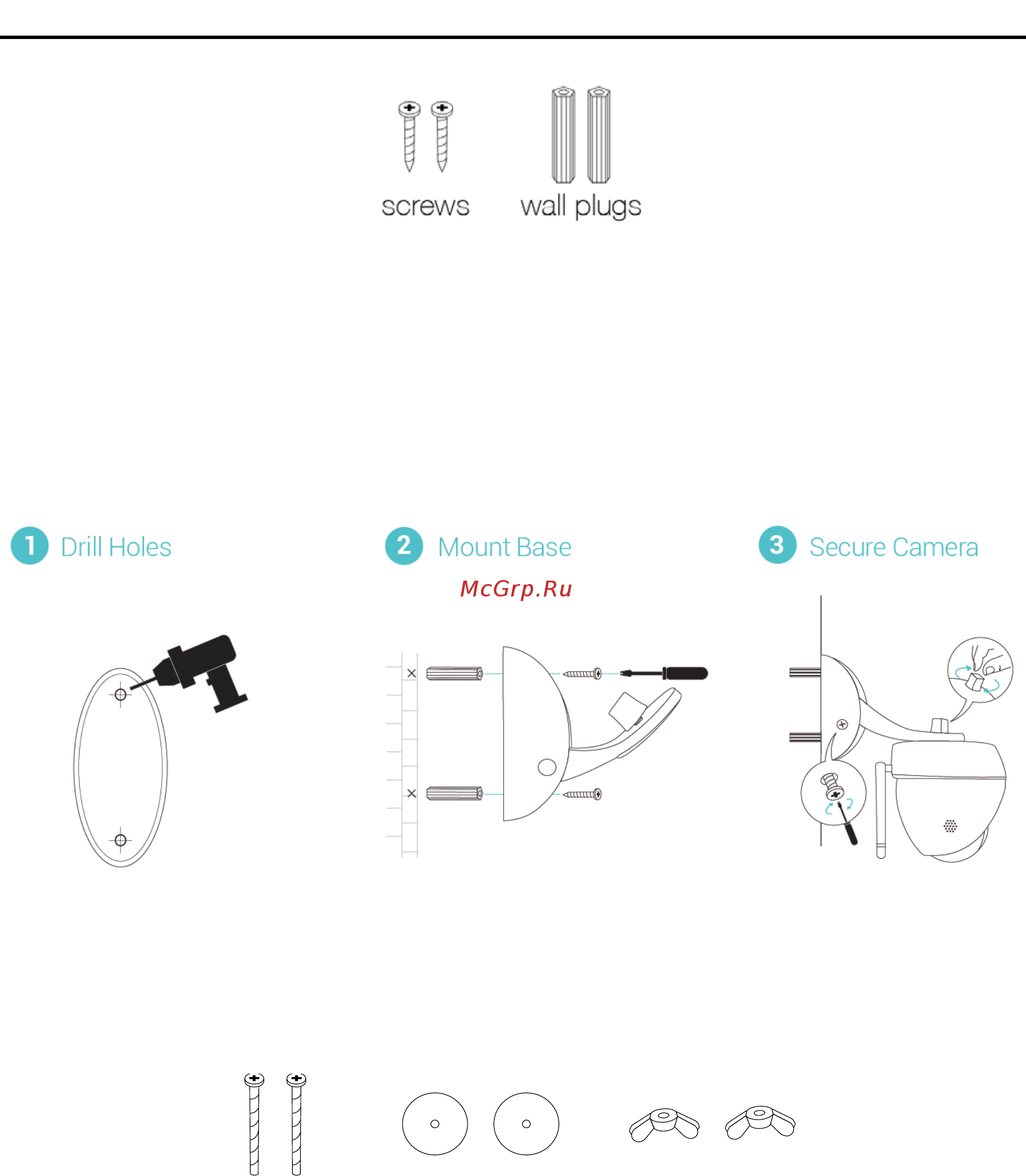

a) Place the paper drill guide where you want the camera. Check the alignment using a level.

b) Using a 0.24 inch (6mm) drill bit, drill holes through the two circles on the guide. Remove

the paper.

c) Insert the two anchors into the holes and place the camera mount over the anchor.

d) Attach the camera and use the screws to secure it.

Ceiling Mounting

Get the provided accessories for camera’s wall mounting ready, and follow the instructions below

to mount the camera. After relocating your camera, remember to power on it.

screws

wing nuts washers

a) Place the paper drill guide where you want the camera*.

*Camera placement can affect viewing angle. For best results, place the camera near a wall

or corner.

b) Using a 0.24 inch (6mm) drill bit, drill holes through the two circles on the guide. Remove

the paper.

c) Attach the camera mount using the screws, washers, and wingnuts.

d) Attach the camera and use the screws to secure it.
