Gigabyte GA-MA770T-UD3 (rev. 1.5) [59/100] 4 contact

Drivers Installation- 59 -

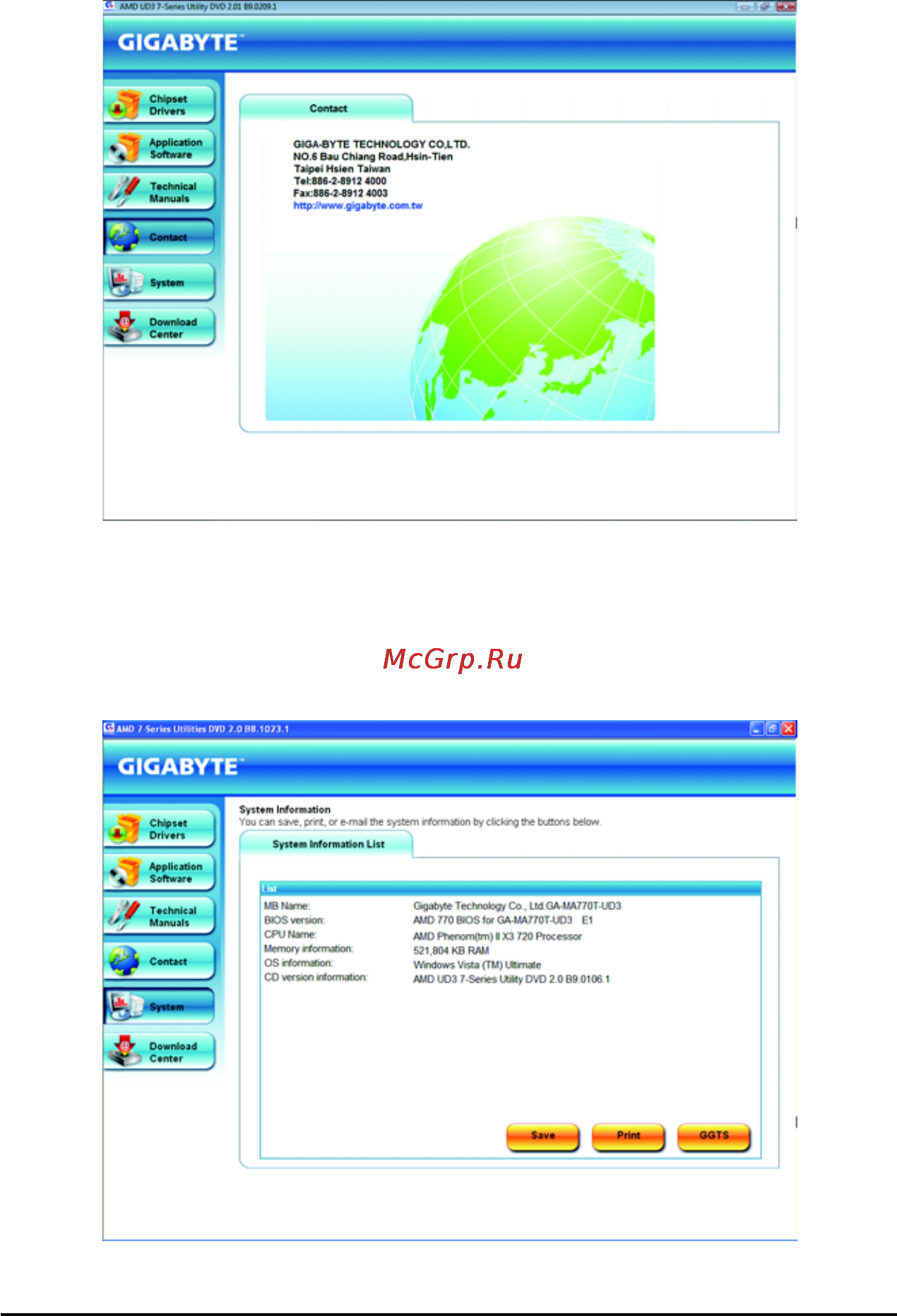

3-4 Contact

For the detailed contact information of the GIGABYTE T aiwan headquarter or worldwide branch of fices,

click the URL on this page to link to the GIGABYTE Website.

3-5 System

This page provides the basic system information.
