LAUNCH

X-431 PADII

User's Manual

software, testing connectors) may vary. Please consult from the local

agency or check the package list supplied with X-431 PADII together.

Table 2-5 -- X-431 PADII common accessories and descriptions

No. Name Qt. Picture

1 X-431 PADII

Tablet 1

Diagnostic

Connector

(To connect to vehicle’s DLC.)

3 Docking Station 1

4 Micro USB Cable 1

(To connect on PC for data

transmission or upgrade

diagnostic connector)

Cigarette Lighter

Cable

(To obtain power supply from

vehicle’s cigarette lighter )

2.3 Diagnostic Connector

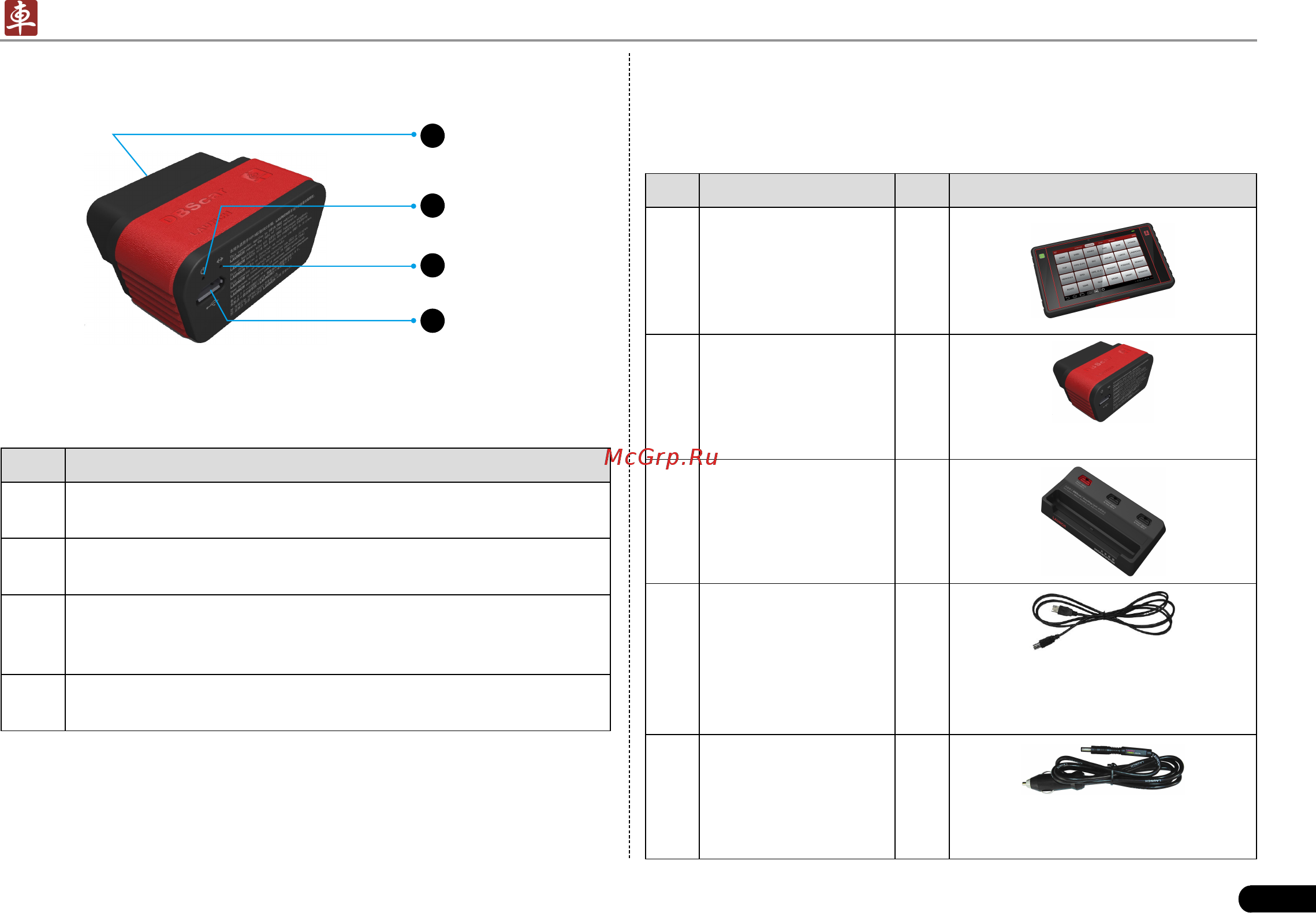

Fig. 2-7 Diagnostic Connector

Table 2-4 formulates ports and indicators of diagnostic connector:

No. Name & Descriptions

1 OBD-16 Diagnostic Connector -- To connect on vehicle’s

OBD2 DLC.

2 Power Indicator -- It lights up while the connector is

plugged into the vehicle’s DLC.

3 Communication Indicator -- It will ash once the

connector is communicating with X-431 PADII or it is being

reset.

4 Micro USB Port -- To connect on PC for data transmission

or upgrade via USB cable.

2.4 X-431 PADII Accessory Checklist

Common accessories for each X-431 PADII are same, but for different

destinations, the accessories of X-431 PADII (such as diagnostic
