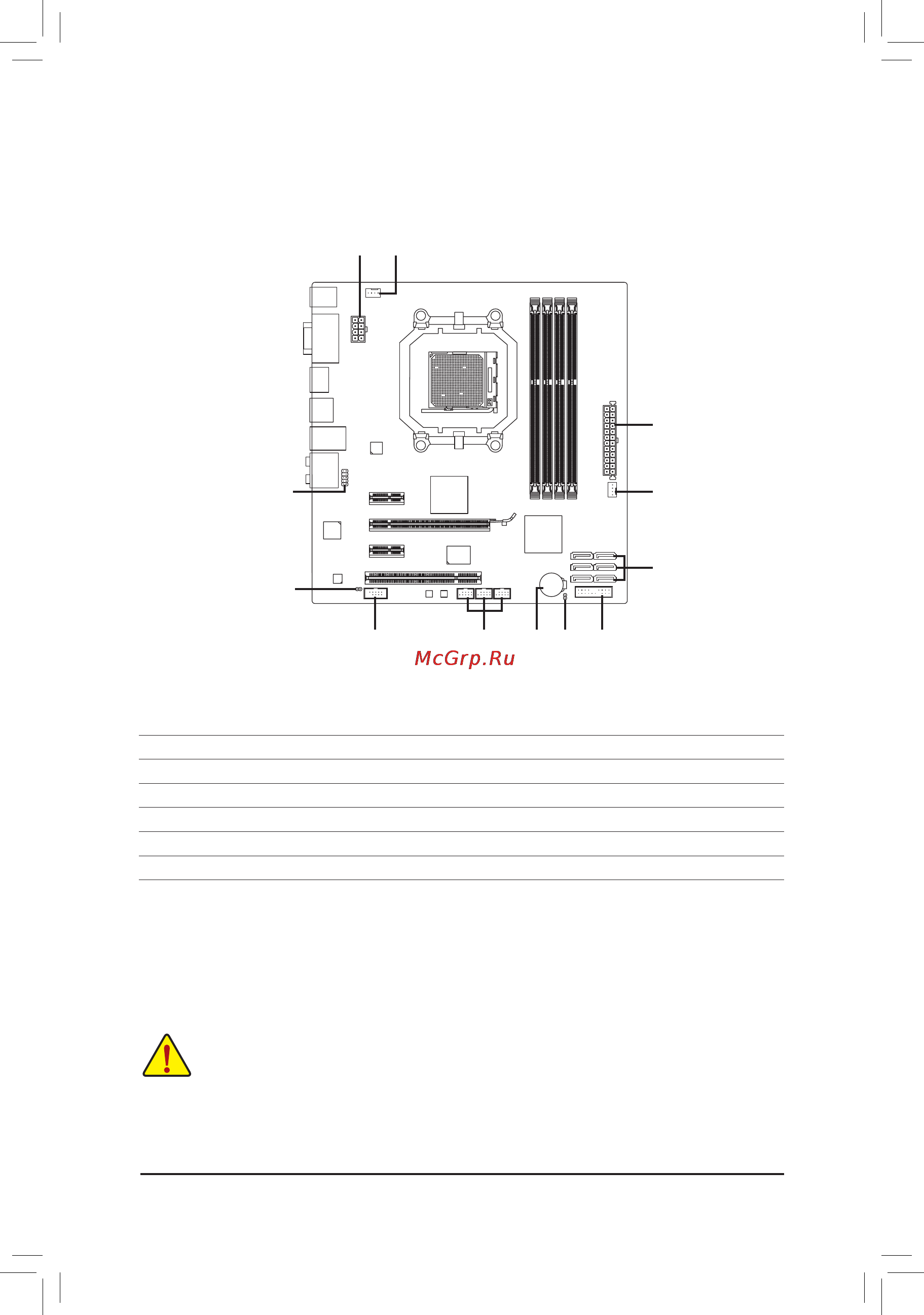

- 23 - Hardware Installation
1-8 Internal Connectors
Read the following guidelines before connecting external devices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the
power cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.
1
2
3
5
4
10
7
8
12
9
6
1) ATX_12V 7) F_AUDIO
2) ATX 8) SPDIF_OUT
3) CPU_FAN 9) F_USB1/F_USB2/F_USB3
4) SYS_FAN 10) COM
5) SATA3_0/1/2/3/4/5 11) BAT
6) F_PANEL 12) CLR_CMOS
11
