TL-WPS510U Pocket-Sized Wireless N Print Server

Chapter 2. Hardware Installation

2.1 Preparation

Before you start, you should prepare the following items:

 One USB Printer (non-GDI/CAPT)

 One 802.11n Access Point/Router

 One Computer with Wireless Adapter installed



Note:

Please make sure the computer has been successfully installed the printer driver, i.e., when

correctly connected to the printer, the computer can print without other configurations.

2.2 Typology

In this topology, the wireless router is the center of the wireless network. Every host and

TL-WPS510U will communicate with the wireless router. The hosts communicate with

TL-WPS510U via the wireless router.

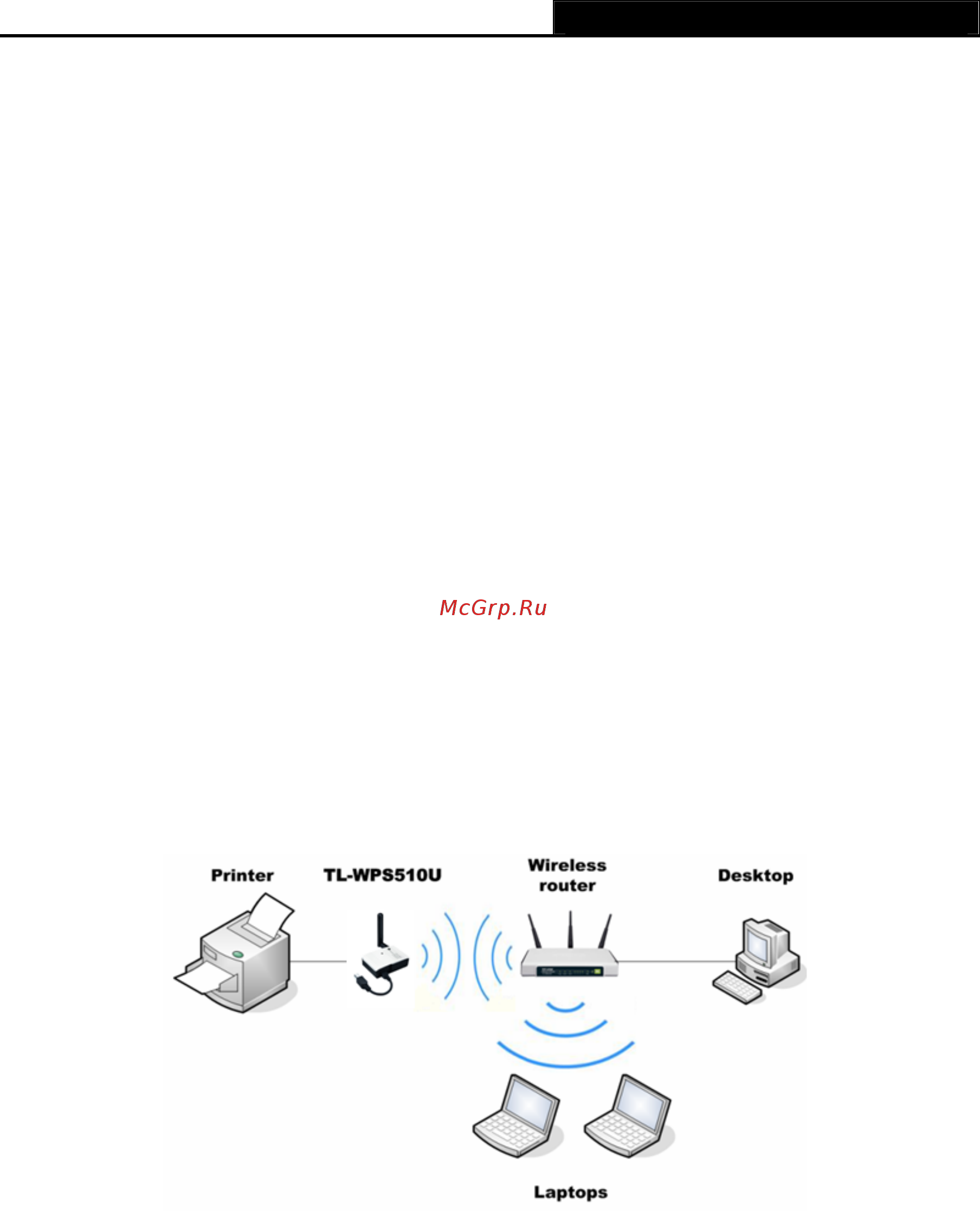

Figure 2-1 Topology

2.3 Connection

Follow the instructions below to install the print server.

1. Power off the printer.

2. Connect the print server to your printer with the provided USB cable.

3. Power on the printer.
