GA-880GM-USB3L (rev. 3.1)
Инструкция по эксплуатации Страница: 22

Gigabyte GA-880GM-USB3L (rev. 3.1) [22/96] 8 internal connectors

Hardware Installation - 22 -

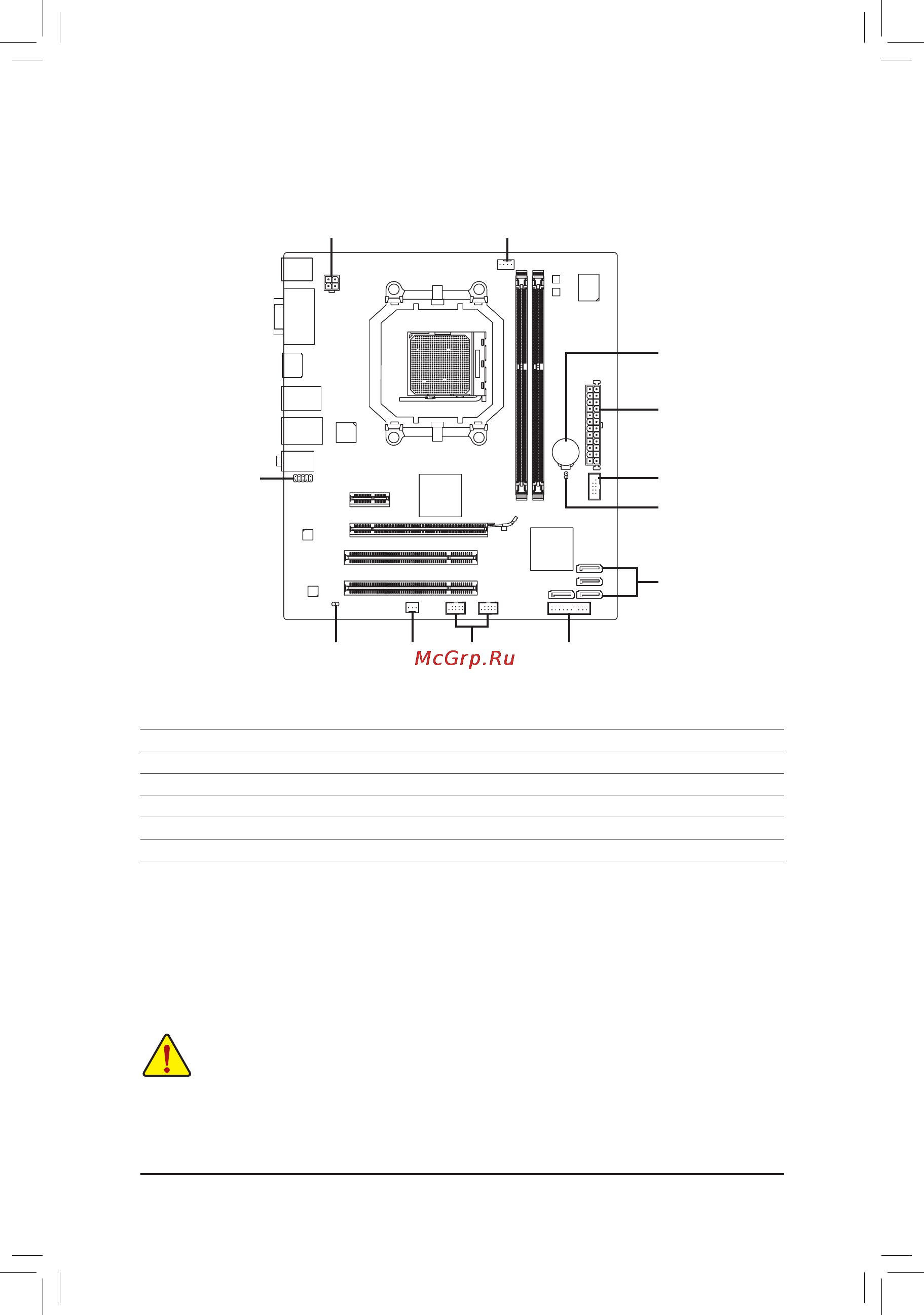

1-8 Internal Connectors

Read the following guidelines before connecting external devices:

• First make sure your devices are compliant with the connectors you wish to connect.

• Before installing the devices, be sure to turn off the devices and your computer. Unplug the

power cord from the power outlet to prevent damage to the devices.

• After installing the device and before turning on the computer, make sure the device cable has

been securely attached to the connector on the motherboard.

1 3

4 11 8

1) ATX_12V

2) ATX

3) CPU_FAN

4) SYS_FAN

5) CLR_CMOS

6) SATA2_0/1/2/3

7) BAT

8) F_PANEL

9) F_AUDIO

10) SPDIF_O

11) F_USB1/F_USB2

12) COM
