• Caution p.2
• This sewing machine is intended for household p.2
• Important safety instructions p.2
• Danger p.2
• Warning p.2
• Save these instructions p.2
• Эта швейная машина предназначена только для бытового применения p.3
• Сохраните это руководство p.3
• Предупреждение p.3
• Инструкции по безопасности p.3
• Внимание p.3
• When servicing the sewing machine or when p.4
• When leaving this sewing machine p.4
• Unattended the main switch of the machine must be switched off or the plug must be removed from the socket outlet p.4
• Removing covers or changing lamps the machine or the electrical set must be disconnected from the supply by removing the plug from the socket outlet p.4
• Замечания о двигателе p.5
• When the motor is running sparks can be p.5
• The normal operating speed of this sewing p.5
• The bearings in the motor are made of a p.5
• Special sintered oil impregnated alloy mounted in oil soaked felt to withstand long hours of continuous operation p.5
• Seen through the ventilating hole in the motor bracket on the side opposite the hand wheel these sparks are produced by the carbon brushes and the commutator and are part of the machines normal operation p.5
• Quite fast compared to the normal operating speed of 300 to 800 stitches per minute for the ordinary foot operated sewing machine p.5
• Notes on the motor p.5
• Machine is 1 300 stitches per minute which is p.5
• Continuous operation of the sewing machine p.5
• Caution when threading the machine replacing a needle or when the machine is not in use we recommend disconnecting the electric supply plug to avoid any possible hazards p.5
• Can cause heat to build in the motor area but not enough to adversely affect its performance it is important to keep fabric and paper away from the ventilating holes on the back and sides of the machine so air can get to these holes p.5
• Table of contents p.6
• Содержание p.7
• Presser foot lifting lever p.9
• Material slide plate for overlock stitch p.9
• Material plate cover p.9
• Main power switch and light switch p.9
• Lowerlooper threading lever p.9
• Lowerlooper thread tension dial p.9
• Lowerlooper p.9
• Left needle thread tension dial p.9
• Upperlooper thread tension dial p.9
• Knife lever p.9
• Upperlooper p.9
• Hand wheel p.9
• Thread tree handle presser foot pressure adjustment screw spool pin spool support thread take up cover needles upper knife presser foot p.9
• Front cover p.9
• Stitch width lever p.9
• Free arm cover p.9
• Stitch length adjustment dial p.9
• Differential feed ratio adjustment lever p.9
• Stitch finger p.9
• Bed extension p.9
• Spool stand thread tree support p.9
• Right needle thread tension dial p.9
• Принадлежности p.10
• Дополнительные принадлежности p.10
• В комплекте поставки p.10
• With your serger p.10
• Option p.10
• Accessories included p.10
• Needle set sc h metz 130 705m p.11
• Trim trap p.11
• Blind stitch foot option p.11
• Thread spool cap p.11
• 12 2 pcs 90 14 2 pcs p.11
• Thread net p.11
• The number represents the parts code p.11
• Tape presser foot option p.11
• Softcover p.11
• Removal slightly lift up the sewing machine and then pull out the trim trap in the opposite direction of that indicated by the arrow p.11
• Q accessory bag p.11
• Models p.11
• Installing removing the p.11
• Установка снятие лотка p.11
• Installation insert the trim trap in the direction indicated by the arrow until it contacts the front cover p.11
• Для обрезков p.11
• Xc7438421 220 240v area xc7456421 u k xe0629001 australia new zealand xc7438421 germany p.11
• Hexagonal allen wrench on two needle p.11
• Two needle models 4 one needle models 3 p.11
• Gathering foot p.11
• Tweezers p.11
• Foot controller xc7359021 110 120v area p.11
• Trim trap option p.11
• Cleaning brush p.11
• Игла p.12
• Hexagonal wrench p.12
• Hand until the needle is at its highest position p.12
• Flat side needle plate glass etc p.12
• Check to see if the space is parallel p.12
• Back front flat side groove p.12
• 4 tighten the needle set screw securely with the p.12
• 3 loosen the needle set screw with hexagonal p.12
• You and insert it up as far as it will go p.12
• 3 hold the needle with its flat side away from p.12
• Wrench and remove the needle p.12
• 2 turn the hand wheel until the needle bar is at p.12
• To remove the needle 1 turn the main power switch to the off p.12
• 2 turn the hand wheel counter clockwise by p.12
• To insert the needle 1 turn the main power switch to the off p.12
• This machine uses a standard home sewing machine needle the recommended needle isschmetz 130 705h p.12
• Position p.12
• Place the needle on its flat side and p.12
• Needle p.12
• Its highest position p.12
• The right needle should be set slightly lower than the left one p.13
• One needle models p.13
• Note two needle models on two needle models we suggest you hold p.13
• Needle set screw tighten loosen hexagonal wrench p.13
• If the needles have been inserted correctly p.13
• Caution the needle set screw holds both needles keep this in mind when you loosen the set screw to exchange one or both needles p.13
• The two needles with one hand and then insert them both at the same time p.13
• Открывание и p.14
• Направление вращения p.14
• Крышки p.14
• Закрывание лицевой p.14
• Двигателя p.14
• Turning direction of p.14
• Turn in a counterclockwise direction direction of arrow this is the same direction as an ordinary home sewing machine p.14
• The motor and hand wheel of this machine p.14
• Opening and closing the p.14
• Note for your safety make sure that the front cover is closed when operating the machine p.14
• It is necessary to open the front cover when threading this machine p.14
• Hand wheel p.14
• Front cover p.14
• Main power and sewing light switch this switch turns the power and sewing light on or off to turn on push toward 1 mark to turn off push toward 0 mark p.15
• Bottom right side of the machine insert the power supply plug into a power outlet p.15
• Начало работы p.15
• Включение машины p.15
• Preparation insert the three pin plug into the socket on the p.15
• Powering the machine p.15
• Operation when the pedal is pressed lightly the machine runs at a low speed as the pedal is pressed further the machine will increase speed when the pedal is released the machine stops p.15
• Operating p.15
• To lengthen the stitch to a maximum of 4 mm 5 32 inch turn the stitch length adjustment dial backwards to shorten the stitch length to a minimum of 2 mm 1 8 inch p.17
• To change the stitch length 1 locate the stitch length adjustment dial on the p.17
• Stitch width p.17
• Stitch length p.17
• Side of the machine toward the front up to reduce the stitch width or down to increase the width the stitch width can be set between r4 mm 11 64 inch and 7 mm 9 32 inch the normal stitch width setting for regular overlock stitch is 5mm 13 64 inch p.17
• One needle models the width is factory set to 3 mm 9 64 inch two needle models one needle models p.17
• Left side of the machine p.17
• D stitch width lever regular needle plate p.17
• 3 the normal stitch length setting is 2 mm to 3 mm p.17
• 2 turn the stitch length adjustment dial forward p.17
• Ширина строчки p.17
• Длина стежка p.17
• Two needle models to change the stitch width 1 move the stitch width lever located on the left p.17
• Инструкции по использованию p.18
• Дифференциальной p.18
• With differential feed p.18
• To adjust the differential feed 1 locate the differential feed adjustment lever p.18
• This serger is equipped with two sets of feed dogs under the presser foot to move the fabric through the machine the differential feed controls the movement of both the front and the rear feed dogs when set at 1 the feed dogs are moving at the same speed ratio of 1 when the differential feed ratio is set at less than 1 the front feed dogs move slower than the rear feed dogs stretching the fabric as it is sewn this is effective on lightweight fabric that may pucker when the differential feed ratio is set at greater than 1 the front feed dogs move faster than the back feed dogs gathering the fabric as it is sewn this function assists in removing the rippling when serging stretch fabrics p.18
• On the left side of the machine p.18
• Mechanism models p.18
• Instructions for the p.18
• Forward p.18
• Feed adjustment lever p.18
• Differential feed p.18
• 3 to set less than 1 move the lever back 4 to set greater than 1 move the lever p.18
• 2 the normal setting is 1 on the differential p.18
• Подачи ткани модели с p.18
• Подачей ткани p.18
• Prevents thin materials from puckering p.19
• Prevents stretch materials from stretching or puckering p.19
• Material is gathered or pushed together p.19
• Feed ratio main feed rear differential feed front effect application p.19
• C without differential feed normal sewing p.19
• 1 material is pulled tight p.19
• When stretch material is sewn without using the differential feed the edge will be wavy p.20
• When sewing thick non stretchable material such as denim do not use the differential feed as it may damage the fabric p.20
• To make the edge more smooth adjust the feed ratio from 1 toward 2 the feed ratio required depends on the elasticity of the material p.20
• The more elastic the material the further toward 2 the differential feed ratio should be set test sew with a scrap of the fabric to find the correct adjustment p.20
• Caution p.20
• An example where adjustment is required p.20
• Caution when threading always thread in this order upperlooper lowerlooper right needle and then the left needle p.21
• Before threading p.21
• Приготовления перед p.21
• Перед заправкой нити p.21
• Заправкой нити p.21
• Threading p.21

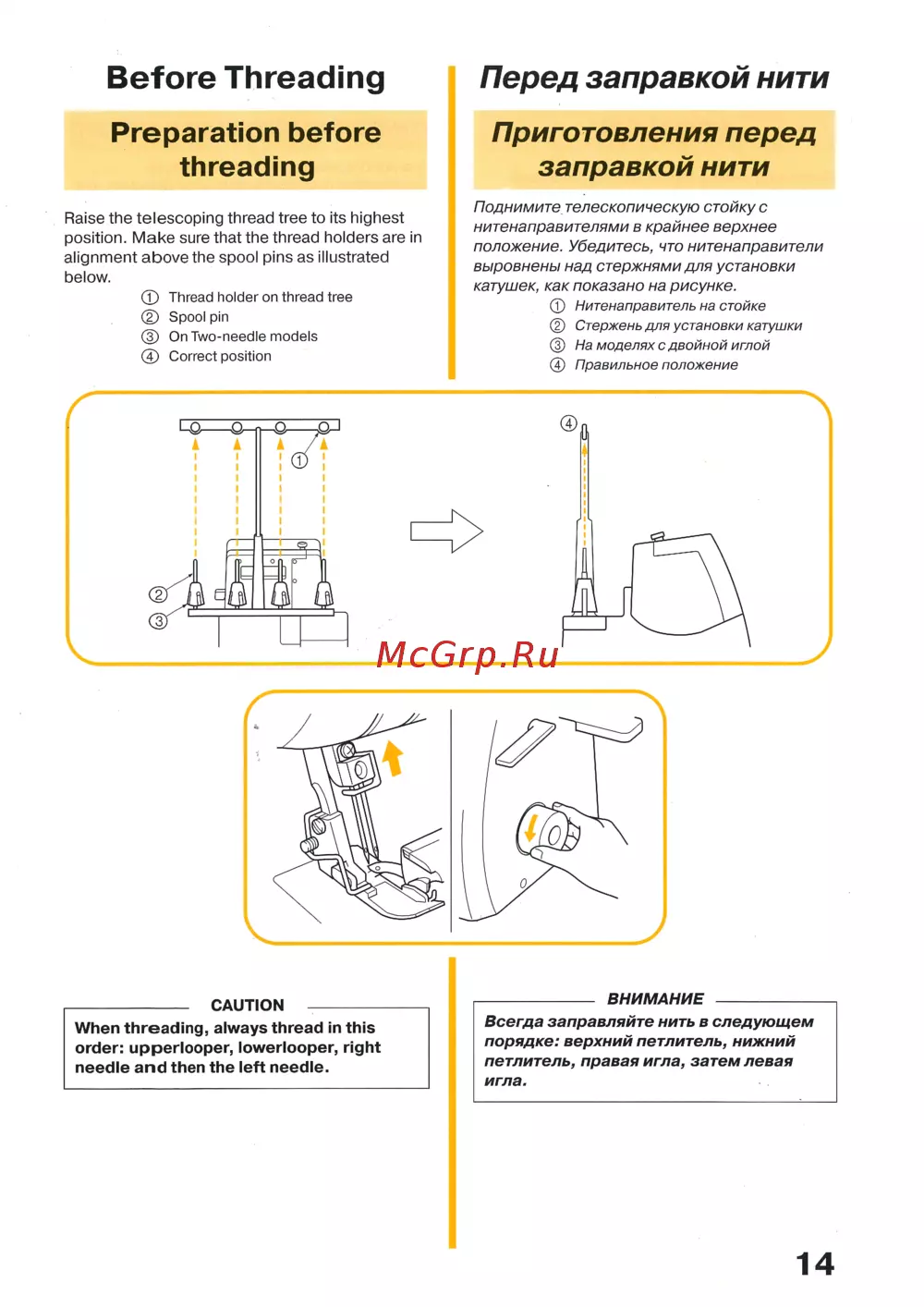

• Raise the telescoping thread tree to its highest position make sure that the thread holders are in alignment above the spool pins as illustrated below p.21
• Preparation before p.21
• Thread spool cap p.22
• This serger is equipped with a thread tension release button when threading be sure to 1 hold the tension release button directly above p.22
• The tension adjustment wheel to the right p.22
• Tension release button p.22
• Spool cap p.22
• If you are sewing with loosely spun nylon thread we recommend that you cover the spool with the net supplied to prevent the thread from slipping off the spool adapt the net to the shape of the spool see fig p.22
• How to use the thread net p.22
• Натяжения p.22
• How to use the thread p.22
• Колпачок катушки с нитью p.22
• 3 release the button p.22
• Кнопка освобождения p.22
• 2 pass the thread through the tension disc p.22
• Как использовать сетку p.22
• Как использовать p.22
• Для катушки с нитью p.22
• Which is in the channel next to the tension adjustment dial p.22
• When using sewing thread spools the thread spool cap should be used as illustrated below make sure that the spool notch is on the bottom see fig p.22
• Thread tension release button thread tension dial slide to the right p.22
• When threading the needle always be sure to lift the presser foot lever and also take care to thread in the proper order p.23
• Turning the handwheel toward you turn the handwheel to find the easiest position for threading and then thread the upperlooper thread lowerlooper thread right needle thread and then the left needle thread the proper threading order for this serger is upperlooper lowerlooper right needle and then the left needle p.23
• T slide to the right 2 thread tension discs 3 correct 4 wrong p.23
• Caution p.23
• Before threading p.23
• 3 set the needle bar in its highest position by p.23
• 1 turn off the main power switch for safety 2 raise the presser foot using presser foot lever p.23
• Перед заправкой нити p.23
• Up through the thread guide on the thread tree from back to front p.24
• Threading the upperlooper p.24
• Thread guide p.24
• Slide and hold the thread tension p.24
• Run the thread in the sequence illustrated p.24
• Right and guiding the top toward you p.24
• Release button to the right then pass the thread through the tension disc which is in the channel next to the green tension adjustment dial release the button p.24
• Pull the thread off the spool and directly p.24
• Pull the thread about an extra 15cm p.24
• Pass the thread through the threading points next to the green color marks following the numerical order in the accompanying illustration p.24
• Pass the thread through the proper p.24
• Open the front cover by sliding to the p.24
• Guide the thread down the channel and p.24
• Following the green color and the numbers next to each threading point p.24
• Заправка нити в p.24
• 6 inches through the front of the thread tree p.24
• Верхний петлитель p.24
• Note if the upperlooper thread breaks during sewing this may be caused by the lowerlooper thread getting caught on the upperlooper if this happens lower the upperlooper by turning the hand wheel remove the lowerlooper thread from the upperlooper and re thread the upperlooper from at least the tension disc p.25
• Заправка нити в нижний p.26
• Up through the thread guide on the thread tree from back to front p.26
• Threading the p.26
• Thread guide p.26
• Run the thread in the sequence illustrated p.26
• Right and guiding the top toward you p.26
• Pull the thread off the spool and directly p.26
• Pull the thread about an extra 15cm 6 p.26
• Pass the thread through the proper p.26
• Open the front cover by sliding to the p.26
• Lowerlooper p.26
• Inches through the front of the thread tree p.26
• Following the blue color and the numbers next to each threading point p.26
• Петлитель p.26
• Release button to the right then pass the thread through the tension disc which is in the channel next to the blue tension adjustment dial release the button p.27
• Pass the thread through the threading points next to the blue color marks following the numerical order in the accompanying illustration up to the lowerlooper threading lever p.27
• Of the threading lever p.27
• Note if the lowerlooper thread breaks during sewing cut and remove thread from both of the needles before re threading the lowerlooper make sure that the lowerlooper re threading is done exactly as diagrammed above the machine will not operate properly if the threading is not done in the proper sequence p.27
• Lowerlooper threading lever to the left which returns it to its standard position p.27
• Lowerlooper easy threading operation illustrated on page 21 1 slidethe lowerlooper threading lever to the p.27
• Lowerlooper p.27
• Guide the thread down the channel and p.27
• Caution when sliding the lowerlooper threading lever to the left always make sure that the two pink triangular marks line up as illustrated p.27
• Caution slide the threading lever only in the directions shown by the arrow forcefully moving the threading lever in any other direction may damage it p.27
• Caution p.27
• 5 make sure that the pink triangular marks line p.27
• 4 holding the end of the thread slide the p.27
• 3 place the thread through the eye of the p.27
• Thread the needles after the lowerlooper and upperlooper have been threaded p.27
• 2 position the thread under the hook left end p.27
• T lowerlooper 2 lowerlooper threading lever p.27
• Slide and hold the thread tension p.27
• Run the thread in the sequence illustrated on p.28
• Release button to the right then pass the thread through the tension disc which is in the channel next to the pink tension adjustment dial release the button p.28
• Pull the thread off the spool and directly p.28
• Pull the thread about an extra 15cm 6 p.28
• Pass the thread through the proper p.28
• Page 22 following the pink color and the numbers next to each threading point p.28
• Needle on two needle p.28
• Models p.28
• Inches through the front of the thread tree p.28
• Guide the thread down the channel and p.28
• Guide 7 above the needle and through the right needle from front to back p.28
• Иглой p.28
• Заправка нити в правую иглу модели с двойной p.28
• Bring the thread down through the p.28
• Up through the thread guide on the thread tree from back to front p.28
• Across through the threading points next to the pink color marks following the numerical order in the accompanying illustration p.28
• Threading the right p.28
• Thread guide p.28
• Slide and hold the thread tension p.28
• Release button to the right then pass the thread through the tension disc which is in the channel next to the yellow tension adjustment dial release the button p.30
• Pull the thread off the spool and directly p.30
• Pull the thread about an extra 15cm 6 p.30
• Pass the thread through the proper p.30
• Inches through the front of the thread tree p.30
• Guide the thread down the channel and p.30
• Guide 7 above the needle and through the left needle from front to back p.30
• Following the yellow color and the numbers next to each threading point p.30
• Bring the thread down through the p.30
• Иглу p.30
• Across through the threading points next to the yellow color marks following the numerical order in the accompanying illustration p.30
• Заправка нити в левую p.30
• Up through the thread guide on the thread tree from back to front p.30
• Threading the left needle p.30
• Thread guide p.30
• Slide and hold the thread tension p.30
• Run the thread in the sequence illustrated p.30
• Comparison chart of sewing materials threads and needles p.32
• Сравнительная таблица материалов p.33
• Для шитья у нитей и игл p.33
• Pink marked tension disc is for right p.34
• Needle p.34
• Lowerlooper p.34
• Green marked tension disc is for p.34
• Caution make sure that the thread is properly seated in the tension discs by holding the tension release button to the right while passing the thread through the tension discs p.34
• Blue marked tension disc is for p.34
• Натяжение нитей p.34
• Yellow marked tension disc is for left p.34
• Upperlooper p.34
• Thread tension dial from the left to right p.34
• Thread tension p.34
• Tension selection mark dial up to decrease tension dial down to increase tension p.34
• Set from 5to3 p.35
• Set from 4 to 7 p.35
• Set from 4 to 2 p.35
• Illustration on the previous page p.35
• For medium tension p.35
• For light tension p.35
• For heavy tension p.35
• Each needle thread the lowerlooper thread and the upperlooper thread the correct thread tension may vary according to the type and thickness of the fabric and the type of thread used thread tension adjustments may be necessary for any change in sewing materials if the stitch quality is insufficient select a different tension setting from the illustration on the previous or following pages p.35
• Adjusting the thread tension 1 to select the correct tension refer to the p.35
• 2 if you cannot find the correct tension refer to p.35
• There is a thread tension adjustment dial for p.35
• The illustrations in this case on following pages p.35
• Tension control sewing is possible at position 4 for most circumstances if improper stitching occurs adjust the tension according to the drawing below standard span 60 3z p.35
• Upperlooper thread is loose p.36
• Upperlooper thread p.36
• Surface p.36
• Right needle thread is tight p.36
• Right needle thread is loose p.36
• Right needle thread p.36
• Lowerlooper thread is tight p.36
• Lowerlooper thread is loose p.36
• Lowerlooper thread p.36
• Left needle thread is tight p.36
• Left needle thread is loose p.36
• Left needle thread p.36
• Chart of thread tension adjustment two needle four thread p.36
• Upperlooper thread is tight p.36
• Таблица настройки натяжения нити p.37
• Двойная игла четыре нити p.37
• Tighten upperlooper thread green p.37
• Tighten right needle thread pink p.37
• Tighten lowerlooper thread blue p.37
• Tighten left needle thread yellow p.37
• Note order of thread tension adjustment when you adjust the thread tension do it in the following order 1 left needle thread 2 right needle thread 3 upperlooper thread 4 lowerlooper thread this is the easiest way to obtain the correct thread tension p.37
• Loosen upperlooper thread green p.37
• Loosen right needle thread pink p.37
• Loosen lowerlooper thread blue p.37
• Loosen left needle thread yellow p.37
• Note order of thread tension adjustment when you adjust the thread tension do it in the following order 1 needle thread 2 upperlooper thread 3 lowerlooper thread this is the easiest way to obtain the correct thread tension p.39
• Loosen upperlooper thread green p.39
• Loosen needle thread yellow p.39
• Loosen lowerlooper thread blue p.39
• Одинарная игла три нити p.39
• Tighten upperlooper thread green p.39
• Tighten needle thread yellow p.39
• Tighten lowerlooper thread blue p.39
• Пробное шитье p.40
• Test sewing p.40
• Presser foot for test sewing p.40
• Note always lift the presser foot before placing the fabric under it just running the fabric under the foot without lifting the presser foot may cause an uneven seam p.40
• Hand turn the pulley slowly a few times in the counter clockwise direction with your right hand and check to see that the threads entwine themselves before using the foot pedal to sew p.40
• 3test sew after threading 1 place a piece of scrap material under the p.40
• 2 holding the needle threads with your left p.40
• Пробная цепочка p.41
• Note if the thread tension is not correctly balanced the chaining off result will be uneven if this happens pull the threads slightly check the threading order and adjust the thread tension to create an even chain see page 25 p.41
• Foot controller slightly and chain off 4 inches the threads will entwine themselves into a chain automatically p.41
• Chaining off p.41
• After test sewing continue to depress the p.41
• Шитье p.42
• Начало шитья p.42
• Well underneath the presser foot before starting to sew slowly sew a few stitches by turning the pulley by hand p.42
• To start sewing p.42
• Thread the machine and pull the threads out p.42
• The fabric will be fed automatically you need p.42
• Sewing p.42
• See if it is uniform if the stitch is not uniform re check that the threading has been done properly and in sequence p.42
• Presser foot upper knife p.42
• Only guide it in the required direction p.42
• Lift the presser foot and place the material p.42
• Follow the seam allowance guide 3 8 1 2 p.42
• Check the stitch formation stitch chain to p.42
• About 15 cm 6 inches behind the presser foot p.42
• 8 1 for consistent cutting of the fabric seams p.42
• Caution p.43
• Шитья p.43
• Снятие изделия p.43
• Разрыв нити во время p.43
• When the seam is finished keep the machine p.43
• To remove work p.43
• Sewing p.43
• Running at a low speed to obtain chaining off then cut the stitches 5 cm 2 inches from the work if feeding for chaining off is not enough pull the thread gently p.43
• Remove the material and re thread in the p.43
• If threads break during p.43
• Do not leave straight pins in the fabric when sewing as they will damage the needles and knives p.43
• Correct order upperlooper lowerlooper right needle and then the left needle replace the material under the presser foot and sew 3 5 cm 1 1 8 to 2 inches over the previous stitches p.43
• Do not lift the presser foot while sewing p.44
• Also cause the fabric to pucker the cutting knives need to be replaced if you notice the fabric puckering while sewing p.44
• 3 dull knives will not cut a clean seam and will p.44
• 2 loosen the thread tension but remember that p.44
• 1 adjust the presser foot to prevent the material p.44
• Шитье тонких p.44
• Шитье плотных p.44
• То sew fine materials p.44
• Материалов p.44
• To sew heavy materials p.44
• Place the material underneath the presser p.44
• If the tension is too loose the thread may break and stitches may be skipped p.44
• From puckering and to allow sewing of curves see next page p.44
• Foot until it touches the front of the upper knife start sewing p.44
• Лапки p.45
• Давление прижимной p.45
• The pressure of the presser foot can be p.45
• Presser foot pressure p.45
• Cd pressure adjustment screw 2 less pressure 3 more pressure 4 pressure adjustment screw 5 standard height for medium material p.45
• Adjusted by turning the pressure adjustment screw at the top left of this machine since this machine has already been adjusted to a pressure suitable for light to medium fabrics no further adjustment is necessary except when sewing on very heavy or very light materials usually when sewing on very light materials the presser foot pressure should be loosened when sewing very heavy materials the presser foot pressure should be tightened p.45
• Troubleshooting p.46
• Поиск и устранение неисправностей p.47
• Two needle models this sewing machine can sew five different p.48
• Stitches by following the simple steps below p.48
• Stitches p.48
• Stitch selection p.48
• One needle models this sewing machine can sew two different p.48
• 8 inch use three threads and the right needle producing 2 mm 1 8 inch seams use for overlock stitching on suits blouses slacks etc note remove the left needle when sewing this overlock stitch p.48
• 64 inch use for overlock stitching on suits blouses slacks etc p.48
• 4 narrow rolled hemming stitches 2 mm p.48
• 32 inch use as decorative or finishing stitch p.48
• 3 three thread overlock stitch 2 mm p.48
• 2 three thread overlock stitch 5 mm p.48
• 2 narrow rolled hemming stitches 2 mm p.48
• 16 inch use three threads and the left needle producing 5 mm seams which works with all kinds of materials use for overlock stitching on suits blouses slacks etc note remove the right needle when sewing this overlock stitch p.48
• 1 three thread overlock stitch 3 mm p.48
• Выбор строчки p.48
• 1 four thread overlock stitch p.48
• Use all four threads and two needles for producing four thread overlock stitches use ideal for sewing knits and wovens p.48
• Polyester thread be used on the following fabric p.49
• Overlock using the right needle p.49
• Open the front cover turn the hand wheel until the upperlooper p.49
• Narrow overlock stitch p.49
• Models p.49
• Machine p.49
• Longer wrapped around the stitch finger p.49
• Is at its lowest position p.49
• Instructions for both narrow overlock rolled edge stitches 1 remove the left needle on two needle p.49
• Georgette rayon linen light cotton broad cloth p.49
• Check to make sure that the thread is no p.49
• 4 remove the stitch finger p.49
• 3 thread the machine for a three thread p.49
• Узкая обметочная строчка строчка с подогнутым краем p.49
• 2 it is recommended that a 80 nylon or p.49
• The narrow overlock rolled edge stitche is a decorative finish for lightweight to midweight fabrics it is often used to complete the edge of a fabric this stitch is sewn by removing the left needle and using the 3 thread overlock stitch p.49
• Rolled edge stitch p.49
• Raise the presser foot lever pull all threads toward the back of the p.49
• Upperlooper stitch finger stitch finger release lever front cover stitch finger holder stitch finger p.50
• Two needle models one needle models p.50
• The inside of the front cover illustrated p.50
• Storage for the stitch finger is provided on p.50
• Stitch width lever needle plate with stitch finger removed p.50
• Remove the stitch finger p.50
• Press the stitch finger release lever to p.50
• Note make sure to install stitch finger when sewing regular overlock stitches p.50
• Move the stitch width lever located on the left side of the machine toward the front up to the r position p.50
• 5 adjust the stitch width for rolled hemming p.50
• All thread tensions should be set at 4 tension may vary slightly according to the fabric and thread used p.51
• 6 adjust the stitch length p.51
• Upperlooper thread tension at 1 4 lowerlooper thread tension at 5 7 right needle thread tension at 4 tension may vary slightly according to the fabric and thread used p.51
• To do rolled edge stitch this application rolls the edge of the fabric inside of the hem stitch the lowerlooper tension should be tightened this pulls the upperlooper thread causing the edge of the fabric to fold around the remaining stitch finger after completing steps 1 through 6 above adjust your machine to these recommended thread tension settings p.51
• To do narrow overlock stitch this is a decorative application used for finishing the edge of the fabric after completing steps 1 through 6 above adjust the thread tension to achieve a normal 3 thread overlock stitch recommended thread tension settings are p.51
• Set the stitch length adjustment lever to r position as shown in the illustration this adjustment is suitable for either narrow overlock stitch or rolled edge stitch p.51
• Chart of narrow overlock rolled edge stitch p.52
• Таблица узких обметочных строчек строчек с p.53
• Подогнутым краем p.53
• Presser foot lever upward then remove the presser foot and store it in a safe location p.54
• How to change feet turn off the main power switch or disconnect p.54
• Features when using the blind stitch presser foot multi p.54
• Examples of sewing applications for this p.54
• And the standard foot will be released p.54
• Проектов для данной p.54
• Примеры швейных p.54
• 5 again raise the presser foot farther by p.54
• Машины p.54
• 4 raise the presser foot farther by pushing the p.54
• When sewing special stitches like flatlock pin tuck and other decorative stitches p.54
• 3 push the button on the presser foot holder p.54
• Using any tool p.54
• 1 raise the presser foot lever 2 set the needle to its highest position by p.54
• Turning the hand wheel counter clockwise p.54
• This stitch guide is easily adjustable without p.54
• The stitch guide on this foot is also useful p.54
• The electric supply plug p.54
• Serger p.54
• Pushing the presser foot lever upward then place the blind stitch presser foot multi purpose foot just under the presser foot holder so that the groove in the bottom of the presser foot holder is aligned and catches the bar on the top of the foot then lower the presser foot lever to attatch the foot p.54
• Purpose foot you can sew blind stitches and overlock at the same time this is ideal when sewing cuffs trouser bottoms pockets and hemming skirts etc p.54
• The right needle should be removed turn the wrong side of the fabric out fold the p.55
• Guide toward the folded edge p.55
• The needle just catches the edge of the crease p.55
• Fabric once and then back to the required width as illustrated p.55
• The needle at its highest position p.55
• Blind stitching with blind p.55
• The folded fabric before sewing p.55
• Adjust the guide position of the presser foot p.55
• The blind hem stitch is used for putting a near invisible hem in garments or home decoration projects use it to hem pants skirts or draperies p.55
• That matches the fabric when done correctly this stitch will be very hard to see on the right side of the fabric p.55
• Stitch with one needle in the left position on two needle models p.55
• Stitch presser foot p.55
• Sewing will be easier if a crease is ironed into p.55
• Set up the machine for 3 thread overlock p.55
• Replace the presser foot with a blind stitch p.55
• Шитье потайной строчки с использованием лапки для потайной строчки p.55
• Presser foot multi purpose presser foot refer to page 47 p.55
• With the folded edge on the left in such a way that the needle pierces just the folded edge as it sews p.55
• Piece of the same fabric should be used to do a sewing test p.55
• With the adjusting screw so that the needle is lightly touching the crease in the fabric in this case the thickness of the fabric is the criterion by turning the screw forward toward you the fabric guide will go to the right by turning the screw backward away from you the fabric guide will goto the left p.55
• Open the fabric as shown in the illustration for best results use a fine thread in a color p.55
• While folding the fabric by hand sew so that p.55
• Lower the presser foot lever adjust the fabric p.55
• Turn the handwheel counter clockwise and set p.55
• To adjust the position of the fabric guide a p.55
• Lift the presser foot lever and insert the fabric p.55
• Upper looper thread tension slightly p.56
• Tightened 5 7 p.56
• Test sew on a scrap of the fabric to adjust the fabric guide and the thread tension p.56
• Stitch width 5 mm two needle models p.56
• Stitch length 3 4 mm needle thread tension slightly slackened p.56
• Slackened 2 4 p.56
• Reverse 2 needle path adjusting screw fabric guide p.56
• Note the following are the recommended setting p.56
• Mm one needle models p.56
• Lower looper thread tension slightly p.56
• To adjust the position of the fabric guide a p.57
• The right needle should be removed fold the fabric as shown in the illustration turn the handwheel counter clockwise to set p.57
• The needle at its highest position p.57
• The flatlock stitch is primarily used as a decorative finish on a project the finished stitch can look like a ladder or small parallel lines when the fabric is pulled flat either stitch finish can be used on the right side of the fabric if you sew with the wrong sides together the upper looper thread will decorate the right side when pulled flat if you sew with the right sides together the needle thread ladder will decorate the right side when pulled flat p.57
• Set up the machine for 3 thread overlock with p.57
• Replace the presser foot with a blind stitch p.57
• Presser foot multi purpose presser foot refer to page 47 p.57
• Piece of the same fabric can be used to do a sewing test p.57
• One needle in the left position on two needle models p.57
• Lower the presser foot lever adjust the fabric p.57
• Стачивание краев с p.57
• Lift the presser foot lever and insert the fabric p.57
• Использованием лапки для потайной строчки p.57
• Guide toward the folded edge p.57
• With the folded edge in such a way that the needle pierces just on the fold p.57
• Flatlock stitching with blind stitch presser foot p.57
• With the adjusting screw so that the needle moves down to a position 1 8 inch 2 3 mm inside the folded edge of the fabric so that some of the stitching loops over the edge by turning the screw forward toward you the fabric guide will go to the right by turning the screw backward away from you the fabric guide will go to the left p.57
• Flat as shown in the illustration p.57
• While holding the fabric pieces together sew p.57
• At a constant speed down the fold p.57
• When stiching is finished pull the fabric open p.57
• Adjust the guide position of the presser foot p.57
• This method is not suitable for thin fabrics the following are the recommended setting p.58
• Test sew on a scrap of the fabric to adjust the fabric guide and the thread tension p.58
• Stitch width 5 mm two needle models p.58
• Stitch length 2 4 mm needle thread tension 0 3 upper looper thread tension 2 5 lower looper thread tension 6 9 p.58
• Reverse adjusting screw fabric guide p.58
• Mm one needle models p.58
• The needle at its highest position p.59
• Between the needle and the upper knife p.59
• The line on the right side of the stitch finger by turning the screw forward toward you the stitch guide will go to the right by turning the screw backward away from you the stitch guide will go to the left p.59
• Been sewn p.59
• Stitching refer to pages 42 45 p.59
• Align the fold with the guide and insert the p.59
• Set up the machine for narrow overlock p.59
• Align the blind stitch presser foot guide with p.59
• Replace the presser foot with a blind stitch p.59
• Presser foot multi purpose presser foot refer to page 47 p.59
• Pin tuck stitching with blind stitch presser foot p.59
• Lower the presser foot lever adjust the fabric p.59
• Lift the presser foot lever and insert the fabric p.59
• Guide toward the folded edge p.59
• Guide the fold in the fabric to sew half way p.59
• Шитье строчки с мелкими p.59
• Fabric up to the needle position p.59
• Складками с использованием лапки для потайной строчки p.59
• Fabric pencil as guides for pin tuck placement fold the fabric along one of the lines and press in place lightly with an iron p.59
• With the folded edge in such a way that the needle pierces just the folded edge p.59
• Draw equally spaced lines on the fabric with a p.59
• Use the blind stitch presser foot to make narrow overlock stitches to produce seams in the form of tucks at equal distances from each other for thin fabrics it s a good idea to choose a fine thread which will run smoothly p.59
• Correct minor contractions by hand p.59
• Turn the handwheel counterclockwise to set p.59
• The pin tuck stitch uses a rolled edge to add shape and decoration to any sewing project fold the fabric on a line where the pin tuck is to be located and guide the fold through the serger contrasting thread in the upper looper adds an accent to your project p.59
• Continue sewing until all marked lines have p.59
• Для настройки положения направляющей и натяжения нитей выполните пробное шитье на кусочке ткани p.60
• Test sew on a scrap of the fabric to adjust the fabric guide and the thread tension p.60
• On two needle models upperlooper stitch finger stitch finger release lever stitch width lever regular needle plate stitch length adjustment lever making lines fold in two adjusting screw fabric guide p.60
• Parts no x76663001 p.61
• Other special purpose presser feet that are available 1 tape presser foot p.61
• For all models lt5 p.61
• Decorative stitching p.61
• Attractive decorative stitches can be made through different combinations of fabric and thread decorative thread with a high thread count or extremely fine thread can be used in the upperlooper to produce decorative stitches to make any project more exciting p.61
• 3 piping presser foot p.61
• 2 pearlsequence presser foot p.61
• Декоративная отделка p.61
• Sa212 u s a canada p.61
• Presser foot ls parts no xb0537001 p.61
• Presser foot lp parts no xb0241101 p.61
• Upper knife and p.62
• The top part of the upper knife will stick out above the needle plate use the projecting part of the upper knife as a p.62
• Retracting upper knife p.62
• Or at the rear of the knife the knife is sharp enough p.62
• Move the knife lever to the left when the upper knife is not being used p.62
• Move the knife lever only while the needle is at its lowest point p.62
• Lower knife p.62
• If one strand of thread can be cut off in front of p.62
• Guide for the fabric p.62
• Described on the next page be sure to unplug the power supply cord from the wall outlet before removing the knives p.62
• Caution p.62
• Отвод верхнего ножа p.62
• Adjust the stitch width lever to move the upper knife to the desired guide position p.62
• Нижний нож p.62
• Верхний нож и p.62
• Worn or blunt knives will cause the material to pucker or stitches to be uneven p.62
• When the knives are blunt replace them as p.62
• Replacing the knives p.63
• Knife is in the down position check that the upper knife is in front of the lower one and adjust the clearance between it and the edge of the lower knife to between 0 mm and 1 mm p.63
• Holder p.63
• Flush with the needle plate p.63
• Down the lower knife p.63
• Cd upper knife setscrew 2 needle plate 3 upper knife lower knife p.63
• 4 tighten the lower knife set screw it is important to adjust the alignment of the p.63
• 4 retighten the upper knife securely p.63
• 3 then turn the pulley by hand until the upper p.63
• 2 insert the new knife into the upper knife p.63
• 2 insert the new knife into the lower knife holder 3 position the lower knife so that its edge is p.63
• Замена ножей p.63
• Upper and lower knives for sharp cutting p.63
• Set screw and pull up the upper knife p.63
• Replacing the upper knife 1 to remove the knife loosen the upper knife p.63
• Replacing the lower knife 1 loosen the lower knife set screw and pull p.63
• Смазка p.64
• Suggested oiling points p.64
• Remarks be sure to oil your sewing machine before use always clean the lint off your machine before you apply oil oil the machine once or twice a month for normal use if the machine is used more often oil it once a week p.64
• Oiling p.64
• For smooth and silent operation the moving parts of the machine should be oiled periodically see diagram below p.64
• Changing the light bulb remove the lamp cover as shown in the p.65
• Loosen the lightbulb cover set screw pull up p.65
• Illustration p.65
• Changing the light p.65
• Cd screw 2 lamp cover 3 screw light bulb cover 5 lightbulb p.65
• Caution always be sure to turn off the power before carrying out the following operation p.65
• Подсветки p.65
• Замена лампочки p.65
• The light bulb cover and remove it p.65
• Take out the light bulb and replace it with a p.65
• New one p.65
• Характеристики p.66
• Технические p.66
• Машины p.66
• Specifications p.66
• Machine p.66
• Setting record p.67
• Right needle p.67
• On two needle models p.67
• Needle p.67
• Lower looper p.67
• Fabric p.67
• Записи установок p.67
• Upper looper p.67
• Thread tension p.67
• Thread p.67
• Stitch p.67

Похожие устройства

•
  Brother 3034 D

  Руководство по эксплуатации
•
  Brother 1034 D

  Руководство по эксплуатации
•
  Brother M 1034 D

  Руководство по эксплуатации
•
  Brother 4234 D

  Руководство по эксплуатации
•
  Brother HF4000ST Strong&Tough

  Руководство по эксплуатации
•
  Brother 455 D

  Руководство по эксплуатации
•
  Brother 1034 D(LE)

  Руководство по эксплуатации
•
  Brother HF 4000 ST

  Инструкция по эксплуатации
•
  Brother HF4000ST

  Руководство пользователя
•
  Brother CV3550

  Руководство пользователя
•
  Brother CV3440

  Руководство пользователя
•
  Brother 929D

  Руководство пользователя

Before Threading Preparation before threading Raise the telescoping thread tree to its highest position Make sure that the thread holders are in alignment above the spool pins as illustrated below 7 Thread holder on thread tree 2 Spool pin 3 On Two needle models Correct position CAUTION When threading always thread in this order upperlooper lowerlooper right needle and then the left needle Перед заправкой нити Приготовления перед заправкой нити Поднимите телескопическую стойку с нитенаправителями в крайнее верхнее положение Убедитесь что нитенаправители выровнены над стержнями для установки катушек как показано на рисунке ф Нитенаправитель на стойке Стержень для установки катушки ф На моделях с двойной иглой Правильное положение ВНИМАНИЕ Всегда заправляйте нить в следующем порядке верхний петлитель нижний петлитель правая игла затем левая игла 14

Узнайте, как правильно подготовить устройство к заправке нити. Следуйте нашим инструкциям для достижения наилучших результатов и избегайте ошибок.
