JetStream L2 Managed Switch
06Introduction
A Combo port consists of one RJ45 port and one SFP port, and they share the same port ID. The SFP
port and the associated RJ45 port cannot work simultaneously. If both of the two ports are connected,
only the SFP port works.
For T2500-28TC, RJ45 ports 25-28 and SFP ports 25-28 are combo ports; For T2600G-28SQ, RJ45
ports 21-24 and SFP ports 21-24 are combo ports.
Port Feature
Model
10/100/1000Mbps
RJ45 Port
10/100Mbps RJ45
Port
SFP Port SFP+ Port
Console
Port
TL-SG5412F 4 0 12 0 1
T2500G-10TS 8 0 2 0 2
T2500-28TC 4 24 4 0 1
T2500G-10 MPS 8 0 2 0 2
T26 0 0 G -18 TS 16 0 2 0 2
T2600G-28TS 24 0 4 0 2
T2600G-52TS 48 0 4 0 2
T2600G-28MPS 24 0 4 0 2
T2600G-28SQ 4 0 24 4 2
■
Rear Panel

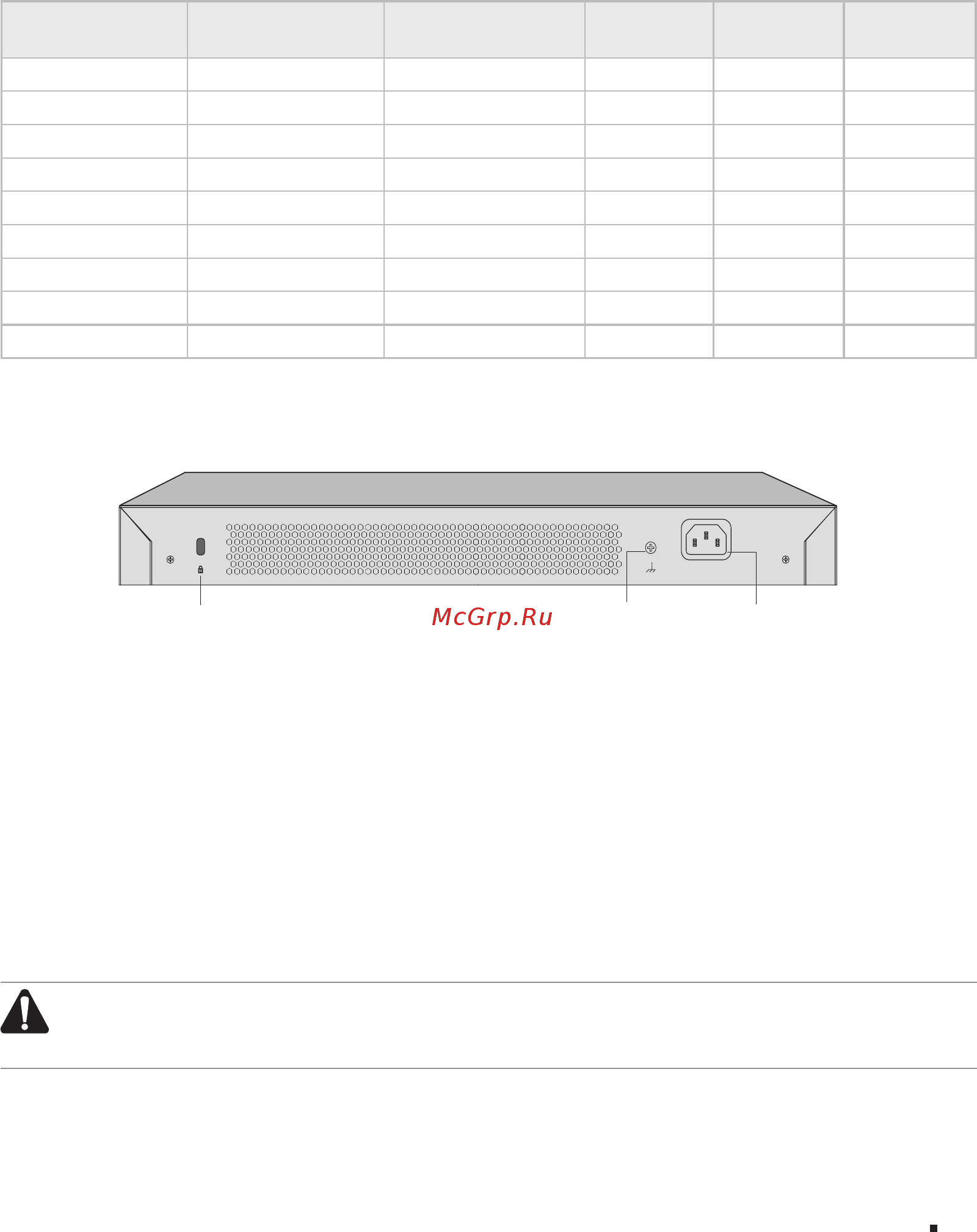

The rear panel is shown as the following figure. Here we take T2600G-28TS as an example.
Figure 1-10 Rear Panel
100-240V~50/60Hz 0.5A
Power Socket
Grounding Terminal
Kensington Security slot
Kensington Security Slot
Secure the lock (not provided) into the security slot to prevent the device from being stolen.
Grounding Terminal
The switch already comes with lightning protection mechanism. You can also ground the
switch through the PE (Protecting Earth) cable of AC cord or with Ground Cable. For detailed
information, please refer to the Lightning Protection Guide from the training center of our website
https://www.tp-link.com/en/conguration-guides/lightning_protection_guide/?congurationId=2962.
Power Socket
Connect the female connector of the power cord here, and the male connector to the AC power outlet.
Please make sure the voltage of the power supply meets the requirement of the input voltage (100-240V~
50/60Hz).
Note:
■
Please use the provided power cord.
■
TL-SG5412F/T2500-28TC does not have a kensington security slot.
