12.2.3 MAC ACL

MAC ACLs analyze and process packets based on a series of match conditions, which can be the

source MAC addresses, destination MAC addresses, VLAN ID, and EtherType carried in the

packets.

Choose the menu ACL→ACL Config→MAC ACL to load the following page.

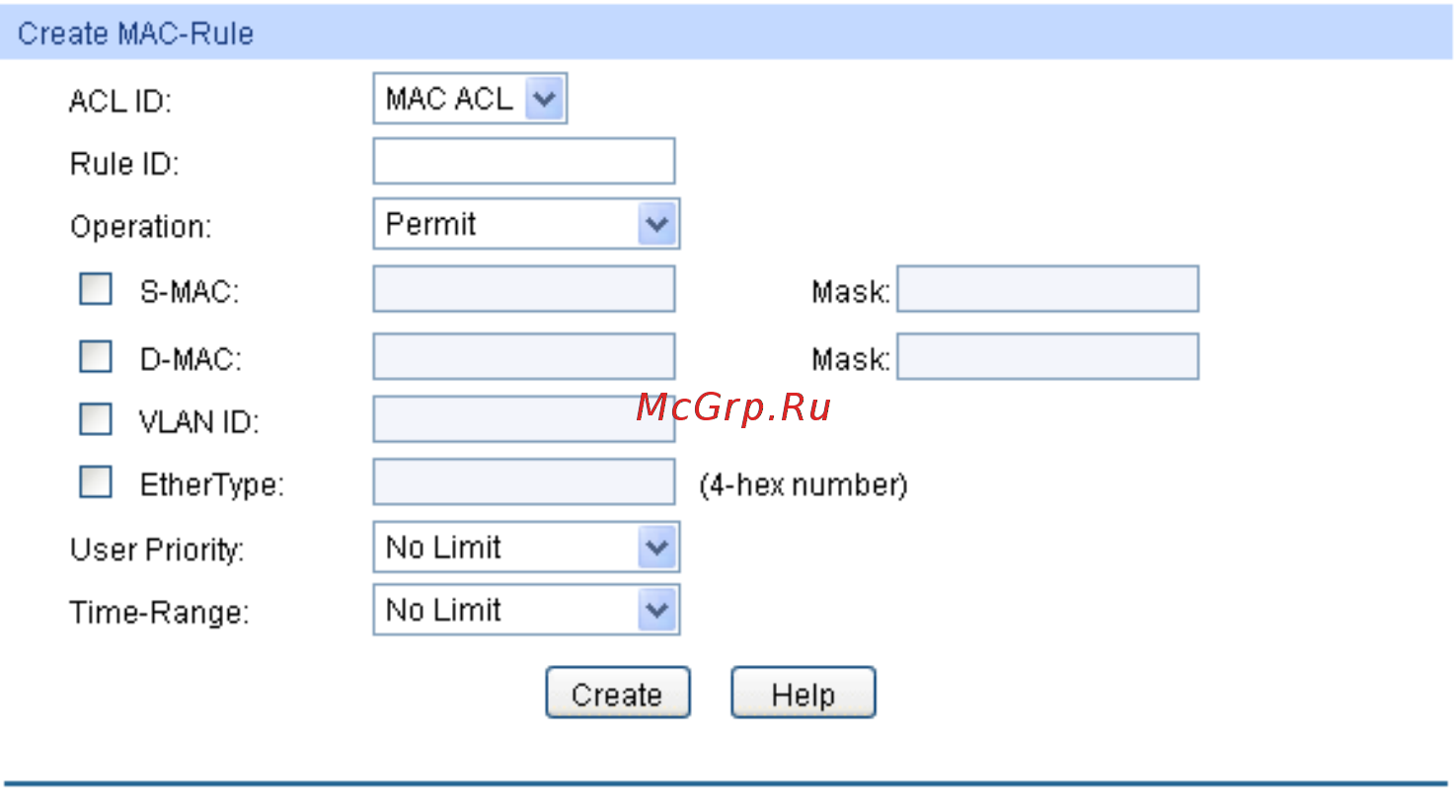

Figure12-6 Create MAC Rule

The following entries are displayed on this screen:



Create MAC-Rule

ACL ID: Select the desired MAC ACL for configuration.

Rule ID: Enter the rule ID.

Operation:

Select the operation for the switch to process packets which match the

rules.

 Permit: Forward packets.

 Deny: Discard Packets.

S-MAC: Enter the source MAC address contained in the rule.

D-MAC: Enter the destination MAC address contained in the rule.

MASK:

Enter MAC address mask. If it is set to 1, it must strictly match the

address.

VLAN ID: Enter the VLAN ID contained in the rule.

EtherType: Enter EtherType contained in the rule.

User Priority: Select the user priority conta

ined in the rule for the tagged packets to

match.

Time-Range: Select the time-range for the rule to take effect.

12.2.4 Standard-IP ACL

Standard-IP ACLs analyze and process data packets based on a series of match conditions, which

can be the source IP addresses and destination IP addresses carried in the packets.
