Appendix - 92 -

Step 3:

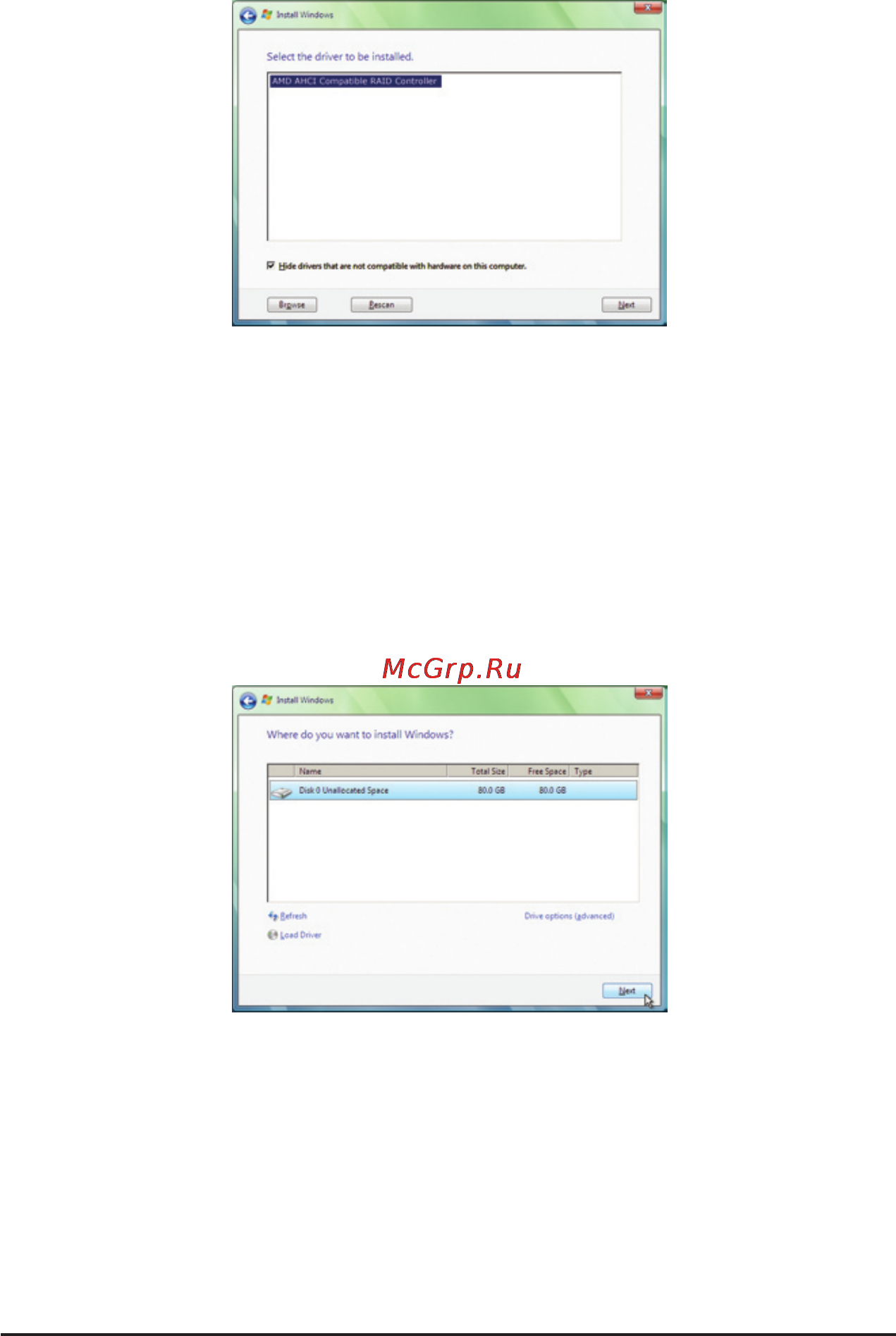

When a screen as shown in Figure 6 appears, select AMD AHCI Compatible RAID Controller and click

Next.

Step 4:

After the driver is loaded, the RAID drive will appear. Select the RAID drive and then click Next to continue

the OS installation (Figure 7).

Figure 6

Figure 7
