- 22 -GA-8IE800 Motherboard
English

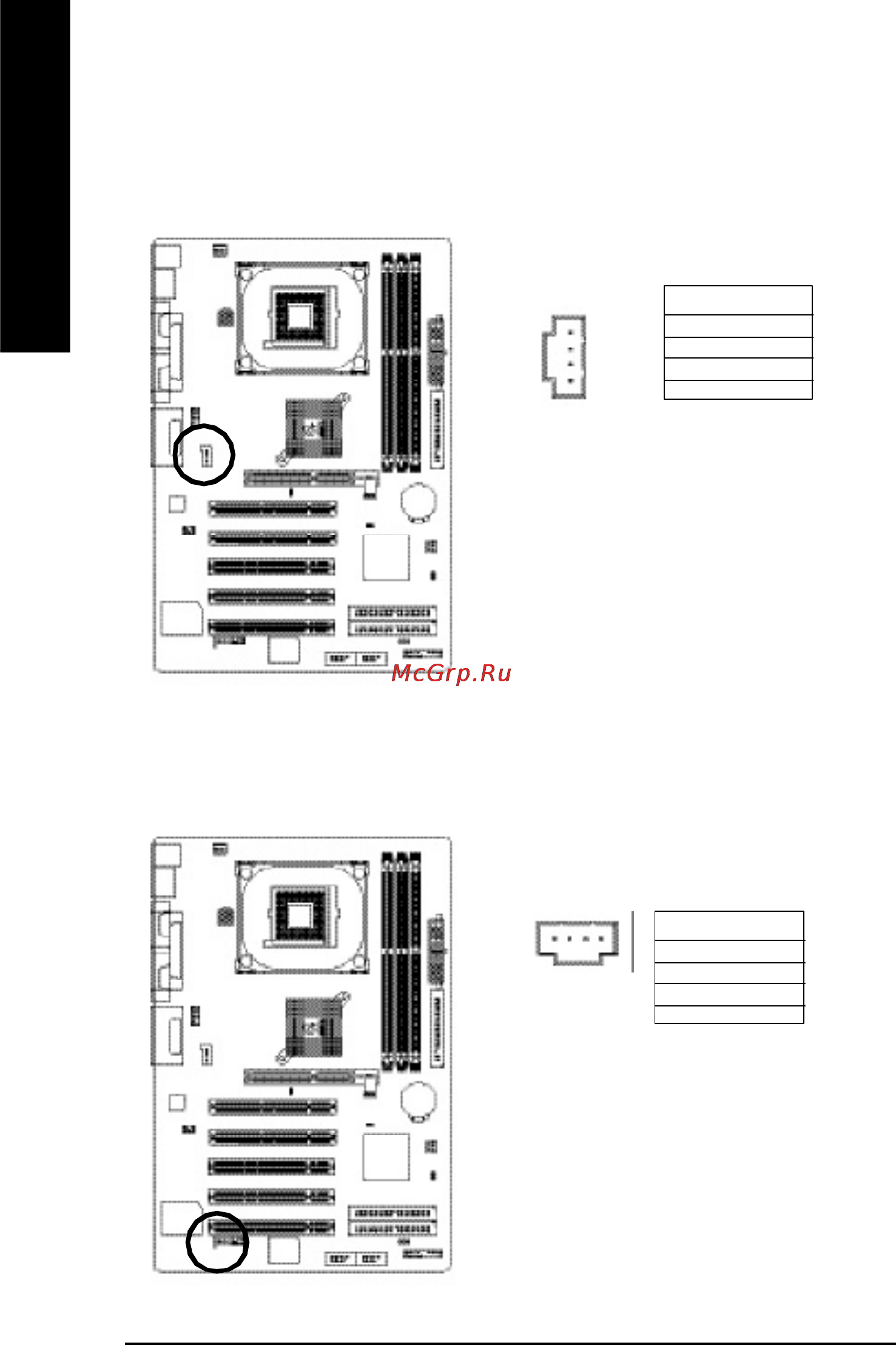

13) CD_IN (CD IN,Blank)
Connect CD-ROM or DVD-ROM audio out to the connector.
1
Pin No. Definition
1 CD-L
2 GND
3 GND
4 CD_R
14) AUX_IN ( AUX In Connector)
Connect other device(such as PCI TV Tunner audio out)to the connector.
1
Pin No. Definition
1 AUX-L
2 GND
3 GND
4 AUX_R
