JetStream Gigabit Smart Switch

Introduction

LED Mode Switch Button

Press this button to switch the LED status indication between Speed and PoE.

Reset

Press this button for five seconds or above to reset the software setting back to

factory default settings.

10/100/1000Mbps RJ45 Port

Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or

1000Mbps. Each has a corresponding Speed or PoE LED.

SFP Port

Designed to install the SFP module. T1600G-52PS switch features 4 individual SFP

ports and supports 1000M SFP module connection only.

■

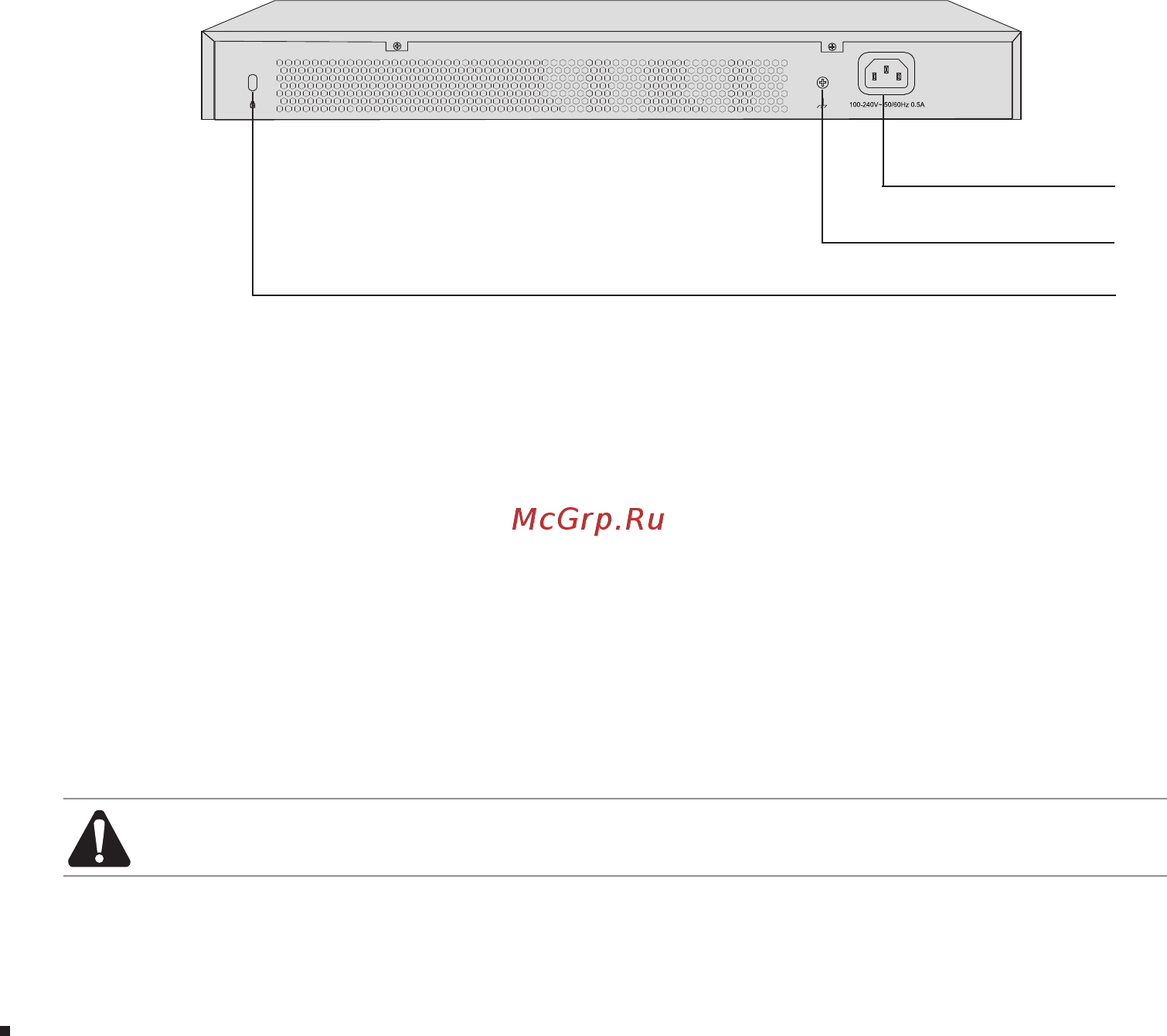

Rear Panel

The rear panel of T1600G-18TS/T1600G-28TS/T1600G-52TS/T1600G-28PS/

T1600G-52PS features a Kensington security slot, a grounding terminal and a power

socket. Here we take T1600G-28TS for example.

Figure 1-6 Rear Panel

Grounding Terminal

Power Socket

Kensington Security Slot

Secure the lock (not provided) into the security slot to prevent the device from being

stolen.

Grounding Terminal

The switch already comes with lightning protection mechanism. You can also ground

the switch through the PE (Protecting Earth) cable of AC cord or with Ground Cable.

For detailed information, please refer to Chapter 3 Lightning Protection.

Power Socket

Connect the female connector of the power cord here, and the male connector to

the AC (Alternating Current) power outlet. Please make sure the voltage of the power

supply meets the requirement of the input voltage.

Caution:

Please use the provided power cord.
