7-Using the Multimeter

7. Using the Multimeter

7.1 About this Chapter

This chapter provides a step-by-step introduction to the multi-meter functions of the test tool

hereafter. The introduction gives basic examples to show how to use the menus and perform basic

operations.

7.2 Making Meter Connections

Use the four 4-mm safety banana jack inputs for the Meter functions: 10A, mA, COM, V/Ω/C.

See figure 2 on P8 for the connections.

7.3 Multimeter Operation Window

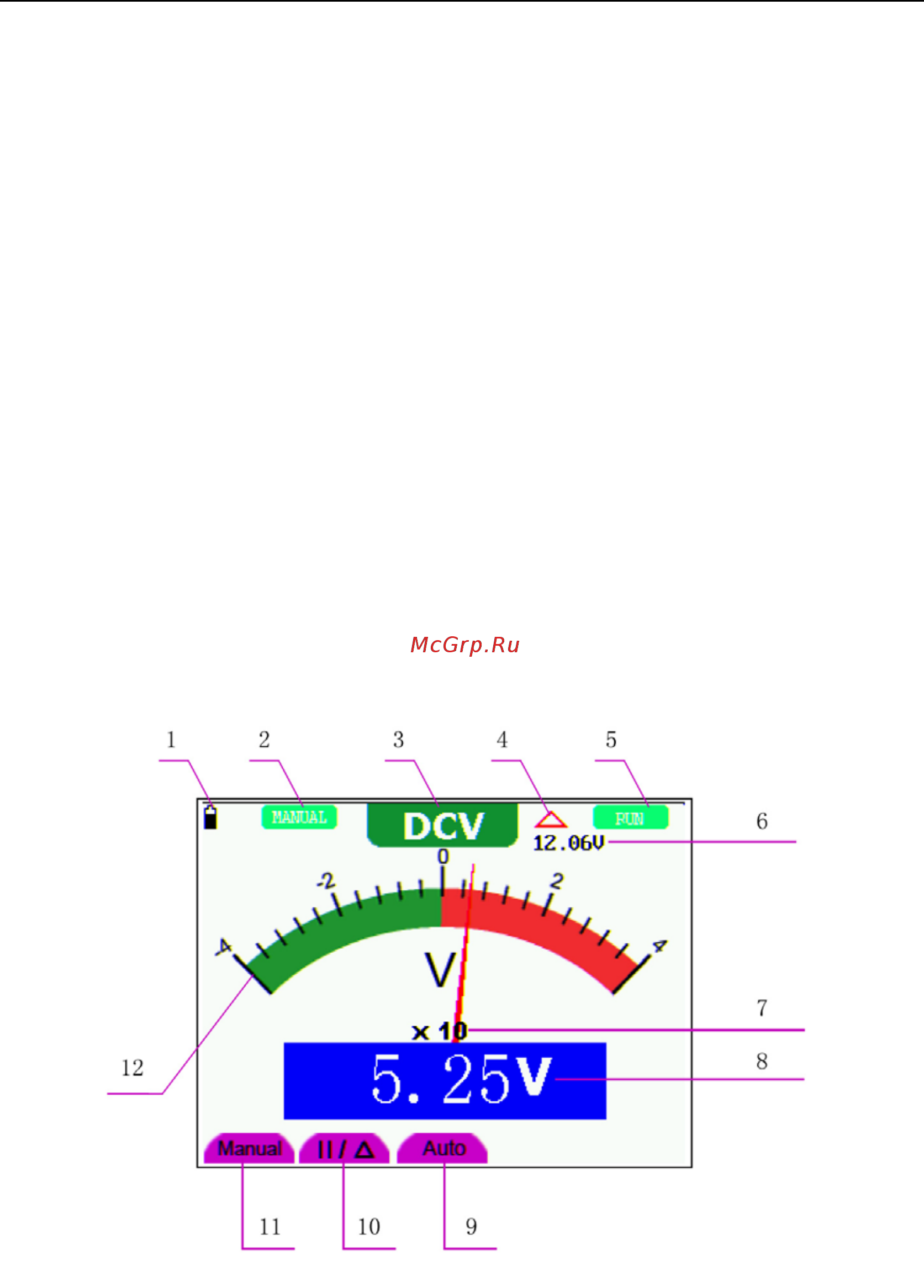

Figure 17: Multimeter Operation Window

Description

1. Battery electric quantity indicator.

2. Manual/Auto range indicators, among which the MANUAL means measuring range in

manual operation mode and AUTO refers to the measuring range in automatic operation

mode.
