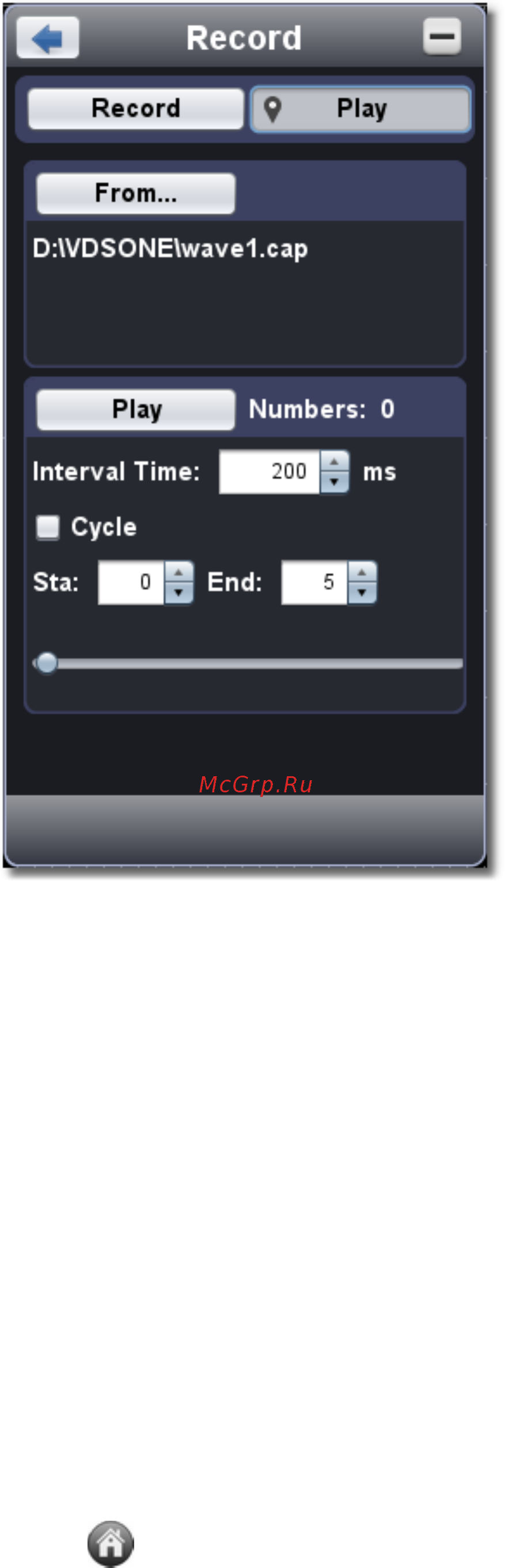

1. Choose "Play" tab on the top.

2. Click "From..." to choose the waveform file to be replayed.

3. Set the start frame "Sta" and end frame "End".

4. Set Interval Time for replaying.

5. Check "Cycle" to play back the waveform in a loop. Uncheck it to replay just once.

6. Click "Play". "Numbers" shows the current frame number that is replayed.

7. Click "Pause" to pause it.

8. Drag slider to display the frame you need.

Note:

1. If the software is in Run status, playing back will make the current acquisition stopped.

2. When replaying, entering other menu items will make the replay paused.

14.How to Implement the Utility setting

Click to show Function menu, choose "Utility".

Language

Choose the desired language.

Skin

Choose Black or Blue for interface skin. Then "Restart" button will appear. After clicking it, the software will be closed and restarted to apply the

new skin.

Open File

Choose BIN waveform file saved and open it, or just drag the file into the software interface to open it.

Print Preview

Click to open the Print Preview Window.

Instruction of the menu items in Print Preview Window:

File → Page Set: Set the page margins

Print: Enter printing window

Exit: Close the Print Preview Window

View →Page Transform: Switch the page orientation between landscape and portrait

Whole page: Display the full page on the screen

Face size: Display in actual size

Default Scale... : Display in a specified zoom factor

Show Wave Background: Check to display wave background color; uncheck to display preview paper background

Set Preview Page Background: Click to display color picker dialog box to set the color of preview page background

Save Image
