RIGOL Chapter 2 Front Panel Operations

2-80 DL3000 User’s Guide

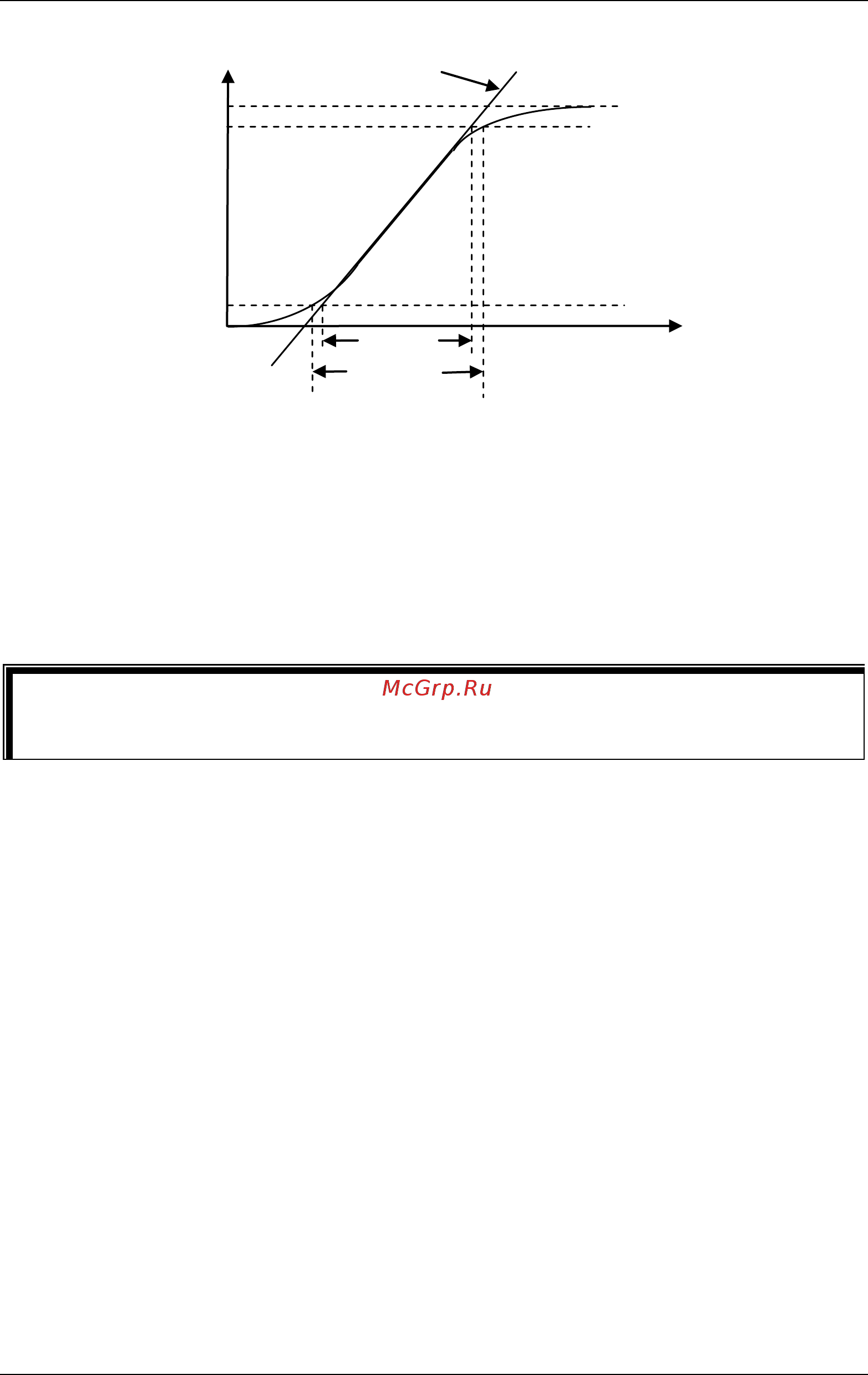

Figure 2-46 Slew Rate and Transition Time

Note: In case where the transition from one setting to another is large, the

minimum transition time can be calculated by dividing the current transition by the

slew rate. In case where the transition from one setting to another is small, the small

signal bandwidth of the load limits the minimum transition time. Due to the limitation,

the actual transition time is longer than the expected time calculated based on the

formula.

Tip

The actual transition time is defined as the time required for the input to change

from 10% to 90% or from 90% to 10% of the input values.

Expected

Time

Actual Time

90%

100%

10%

Slew Rate
