Store and Recall

The load allows you to save different types of files to the internal and external

memories. You can recall and read them when necessary.

The load provides an internal non-volatile memory (Disk C) and an external memory

(Disk D). Disk D is only available when a USB storage device is detected over the USB

HOST interface on the front panel.

Note: The load only supports FAT32 USB flash drives.

1. Disk C

You can save the currently set state files, Con/Pul/Tog/List/OCP/OPP files, and

system log files to Disk C. At most 100 files can be save to Disk C.

(1) State file: includes the current system setting of the load, its interface

settings, and current mode.

(2) Con/Pul/Tog/List/OCP/OPP file: includes the settings in

Con/Pul/Tog/List/OCP/OPP mode.

(3) System log file: includes key values (up to 100 key values can be saved) and

the prompt messages.

2. Disk D

Disk D is only available when a USB storage device is detected over the USB

HOST interface on the front panel. You can save the currently set state files and

data files of various function modes to the USB storage device, and you can also

copy the files from Disk C to Disk D. The number of files that can be saved is

determined by the storage space of the disk.

Press Store on the front panel of the load to enter the storage and recall interface,

as shown in Figure 2-48.

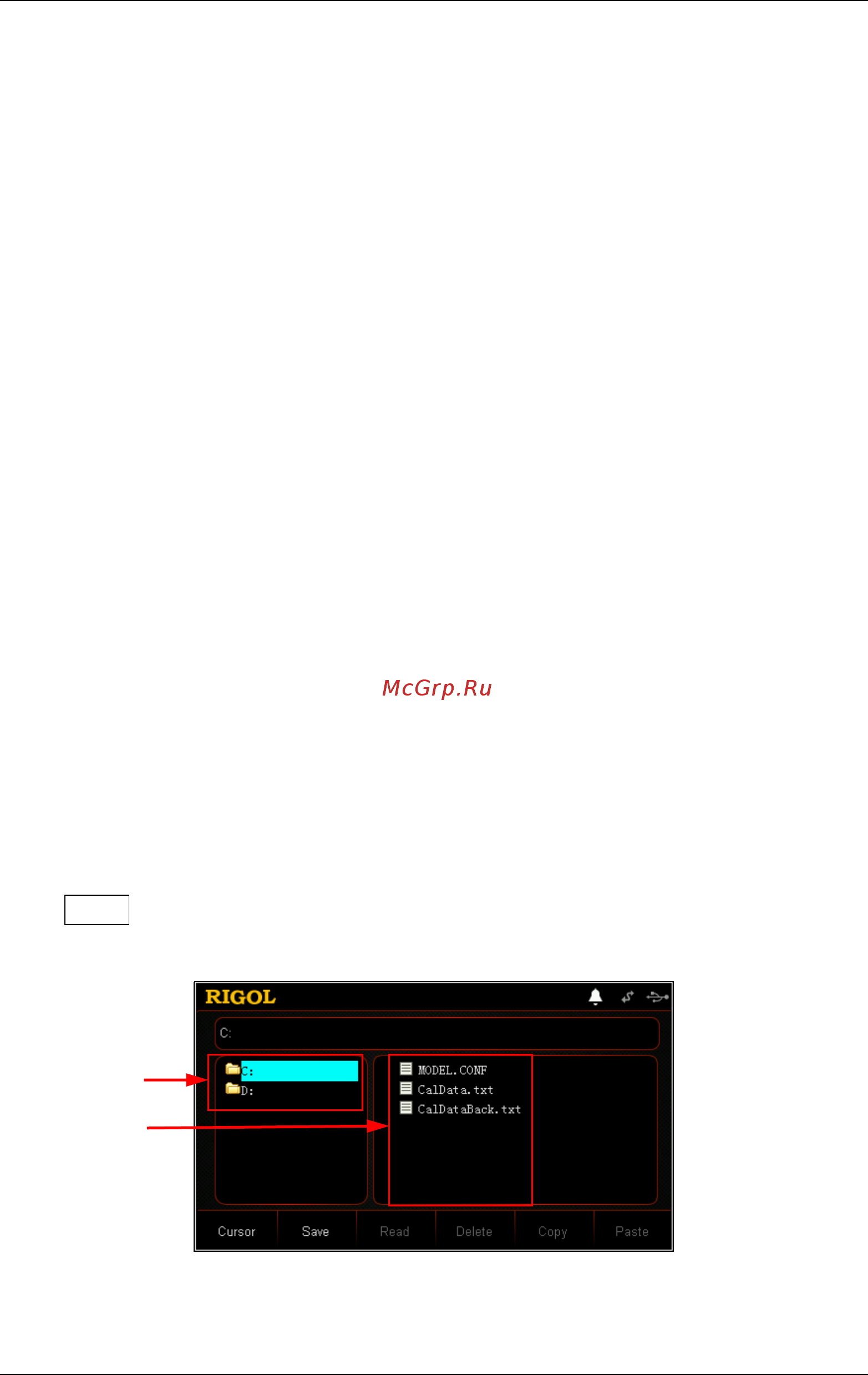

Figure 2-48 Storage and Recall Interface
