Chapter 2 Front Panel Operations RIGOL

DL3000 User’s Guide 2-89

The length of the filename is limited to 30 characters. While inputting the

filename, you can continuously press Delete or the Backspace key to

delete the unnecessary letters that have been input in the "Filename Input

Area".

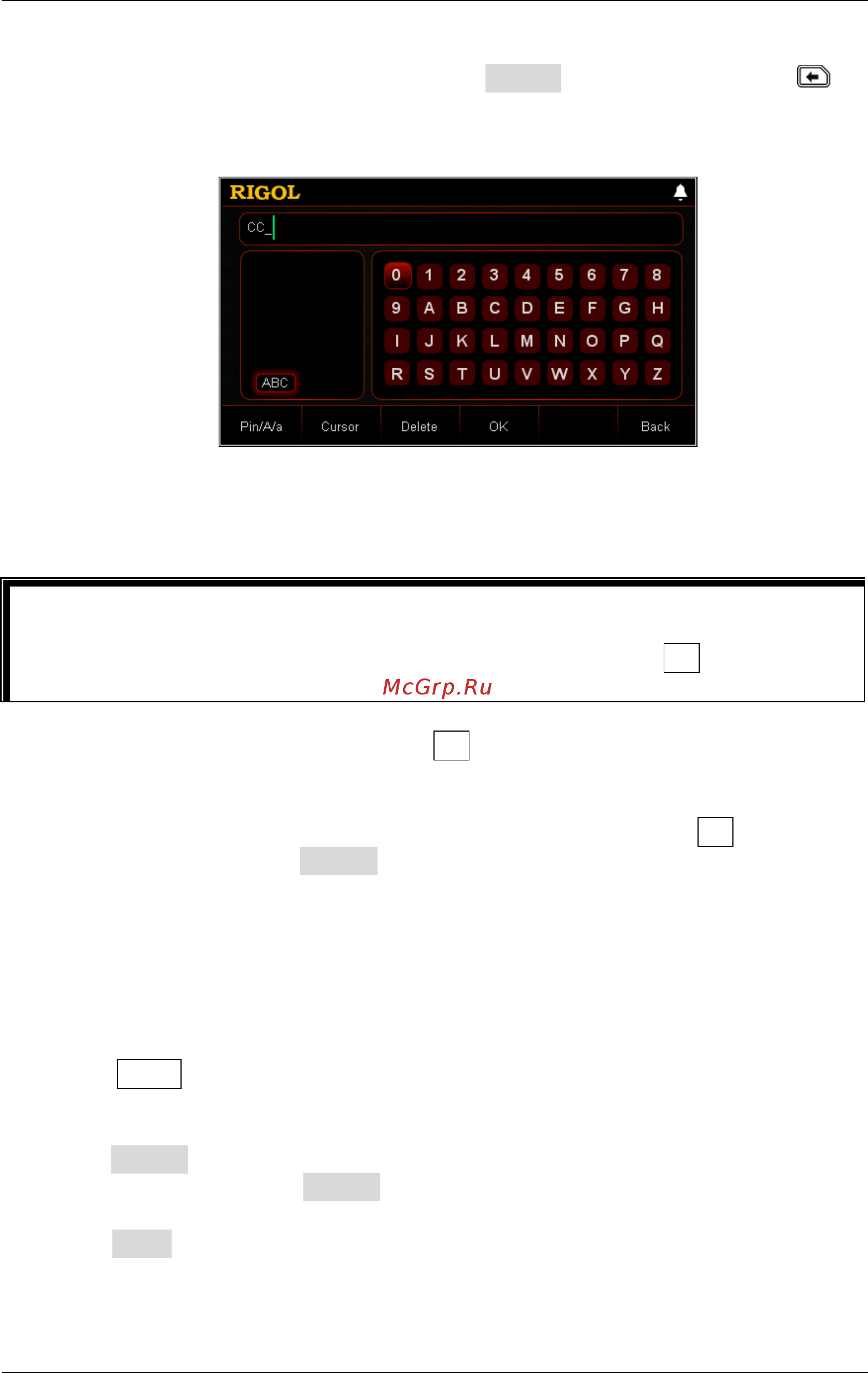

Figure 2-51 Filename Input Interface (uppercase English letters)

Note: The numeric input is supported for the above three input methods

(Pinyin, Uppercase English letter, Lowercase English letter).

4. After inputting the filename, press OK. Then, the file will be saved to the

currently selected path with its specified filename and file type.

If a valid file has already existed in the currently selected path, a prompt

message "Overwrite the existing file?" will be displayed. Press OK to overwrite

the existing file; press Cancel to give up saving the file, and then you will

re-enter the filename input interface.

Read

Operation Procedures:

1. Press Store on the front panel of the load to enter the storage and recall

interface.

2. Press Cursor to switch to the directory, and select the directory where the file to

be read, and then press Cursor again to select the file to be read.

3. Press Read, and then the load will read the currently selected file. If no file has

been save in this location or the file format cannot be recognized, a prompt

message "Failed to read the file!" is displayed. After reading the file successfully,

Tip

In the uppercase/lowercase English letter input method, use the arrow keys or the

knob to select a number in the virtual keypad, then press OK. The selected

number will be immediately displayed in the "Filename Input Area".
