Chapter 1 Quick Start RIGOL
MSO2000A/DS2000A Users Guide 1-11
Rear Panel Overview

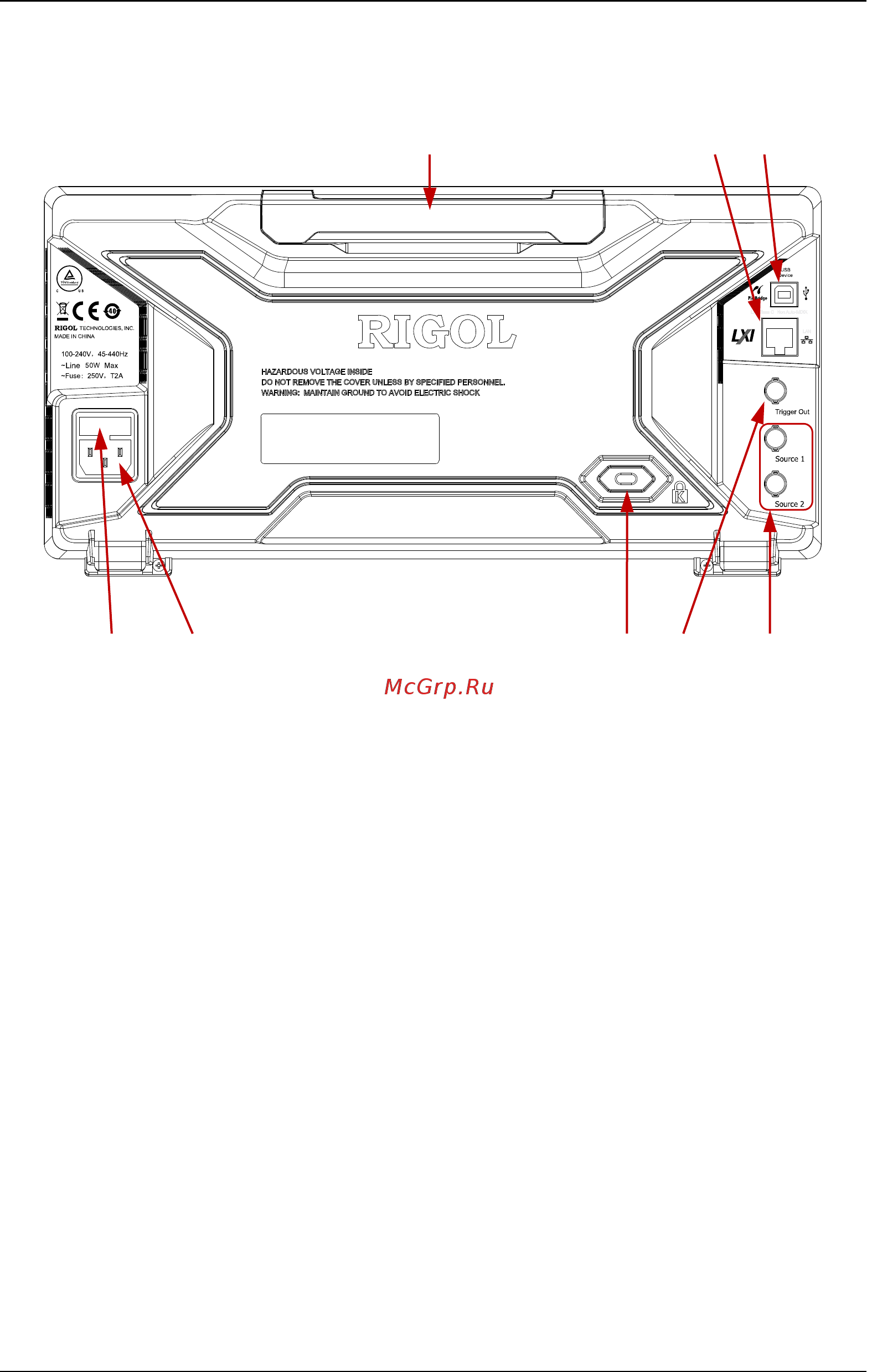

Figure 1-11 Rear Panel Overview
1 Handle
Pull up the handle vertically for easy carrying of the instrument. When you do
not need the handle, press it down.
2 LAN
Connect the instrument to the network via this interface for remote control. This
oscilloscope conforms to the LXI-C class instrument standards and you can
quickly build test system using it with other instruments.
3 USB DEVICE
PictBridge printer or PC can be connected via this interface to perform the print
operation or control the instrument using PC software.
4 Fuse
If a new fuse is required, please use the specified fuse (250V, T2A). The
replacing method is as follows.
(1) Turn off the instrument and remove the power cord.
1 2 3
4 5 6 7 8
