Name
Status
Indication
1000Mbps
On
A 1000Mbps device is connected to the corresponding port.
Off
A 10/100Mbps device or no device is connected to the
corresponding port.
Link/Act
On
A device is connected to the corresponding port but no
activity.
Flashing
Data is being transmitted or received.
Off
No device is connected to the corresponding port.
TL_SG1016PE

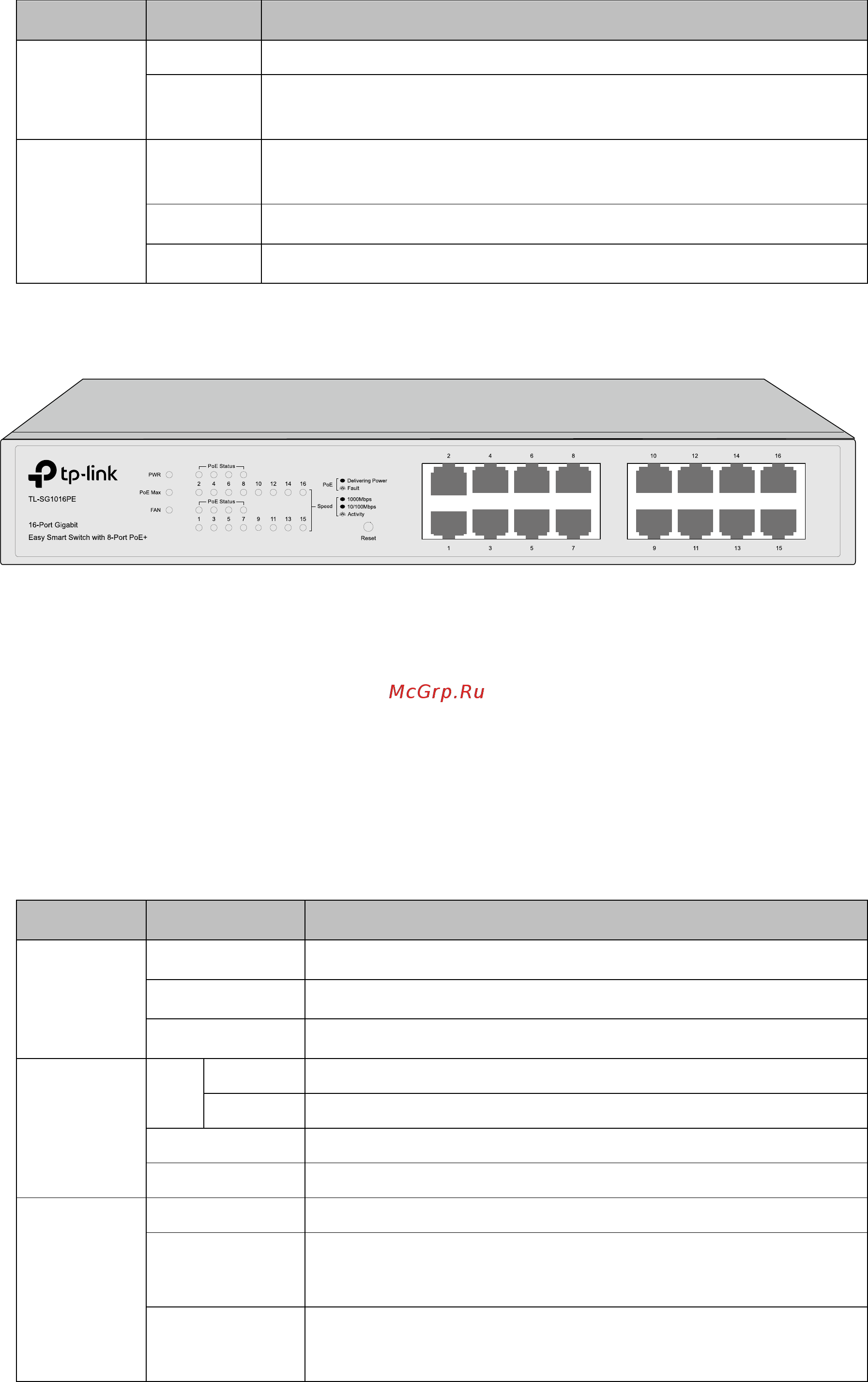

The front panel of TL-SG1016PE is shown as Figure 2-6.
Figure 2-6 Front Panel of TL-SG1016PE
The following parts are located on the front panel of the switch:
Reset: With the switch powered on, press this button for five seconds or above to reset the
software setting back to factory default setting.
1000Mbps Ports: Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps
or 1000Mbps. Each has a corresponding Speed LED. For Port 1– 8, each of them also has a
PoE Status LED.
LEDs
Name
Status
Indication
PWR
On
Power is on.
Flashing
Power supply is abnormal.
Off
Power is off or power supply is abnormal.
Speed
On
Green
The corresponding port is running at 1000Mbps.
Yellow
The corresponding port is running at 10/100Mbps.
Flashing
The corresponding port is transmitting or receiving data.
Off
There is no device linked to the corresponding port.
PoE Status
On
The port is connecting and supplying power to a PD.
Flashing
The PoE power circuit may be in short, the power current
may be overloaded or non-standard PD is connected.
Off
No PD is connected to the corresponding port, or no
power is supplied according to the power limits of the port.
8
