VW Tiguan
Škoda Fabia II / Octavia II / Roomster / VW Caddy / Touran

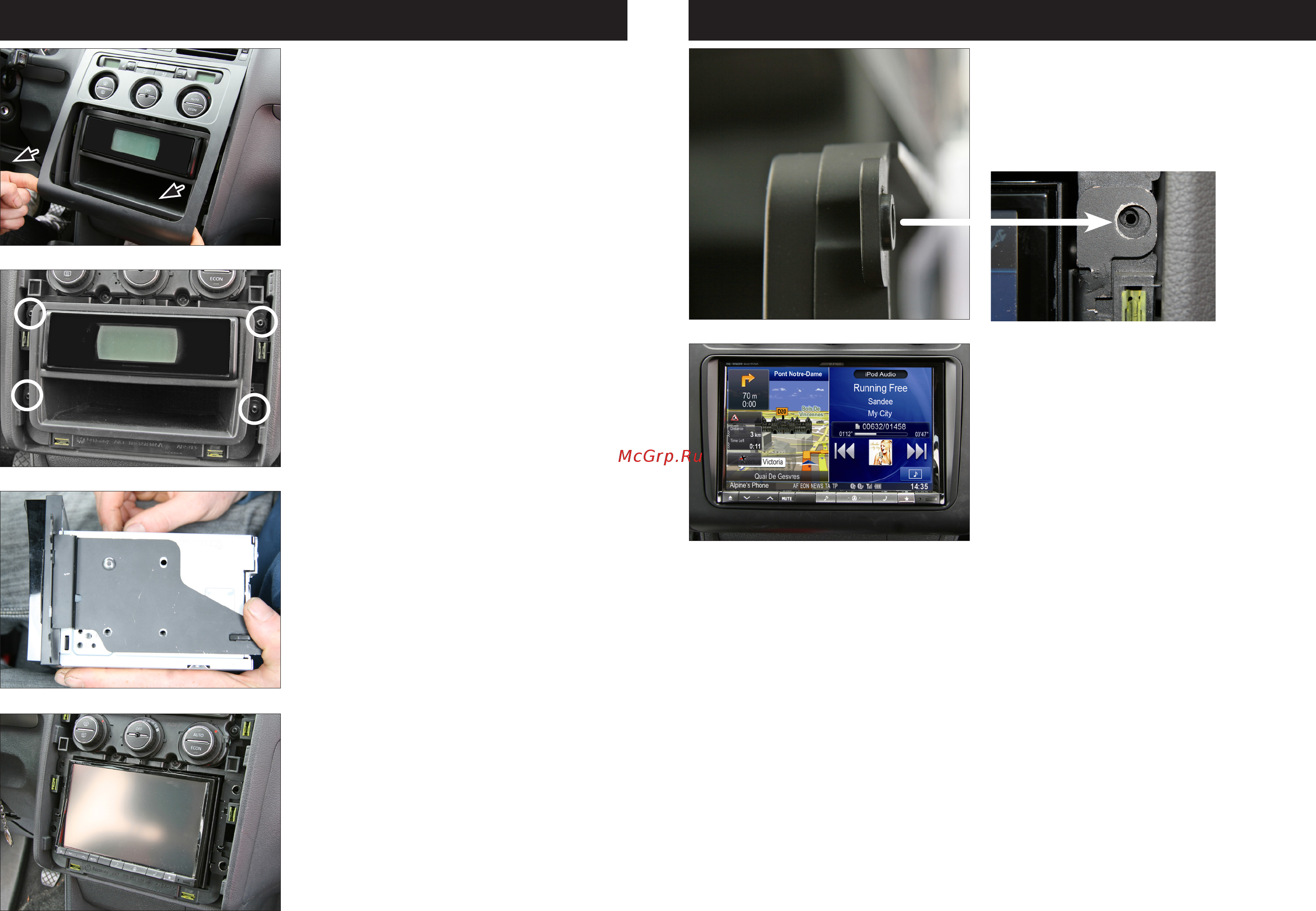

2. Remove 4 screws
Remove head unit
1. Unclip and remove OEM panel
(see arrows)
3. Attach mounting frames to
Alpine INE-W928R
4. Connect all requred circuit points
Place Alpine INE-W928R
on dashboard
Install OEM panel to nish
installation
Place facia plate
Put dome of facia plate
exactly over the holes of
mounting frames
(see arrow above)
5. Connect all requred
circuit points
Place Alpine INE-W928R
on dashboard
