Name
Status
Indication
Link/Act
On(Green)
A 1000Mbps device is connected to the corresponding port.
On(Yellow)
A 10/100Mbps device is connected to the corresponding
port.
Flashing
Data is being transmitted or received.
Off
No device is connected to the corresponding port.
PoE Status
On
The port is supplying power normally.
Flashing
The port is supplying power abnormally.
Off
No PoE power supply is provided on the port.
TL-SG1016DE/TL-SG1024DE

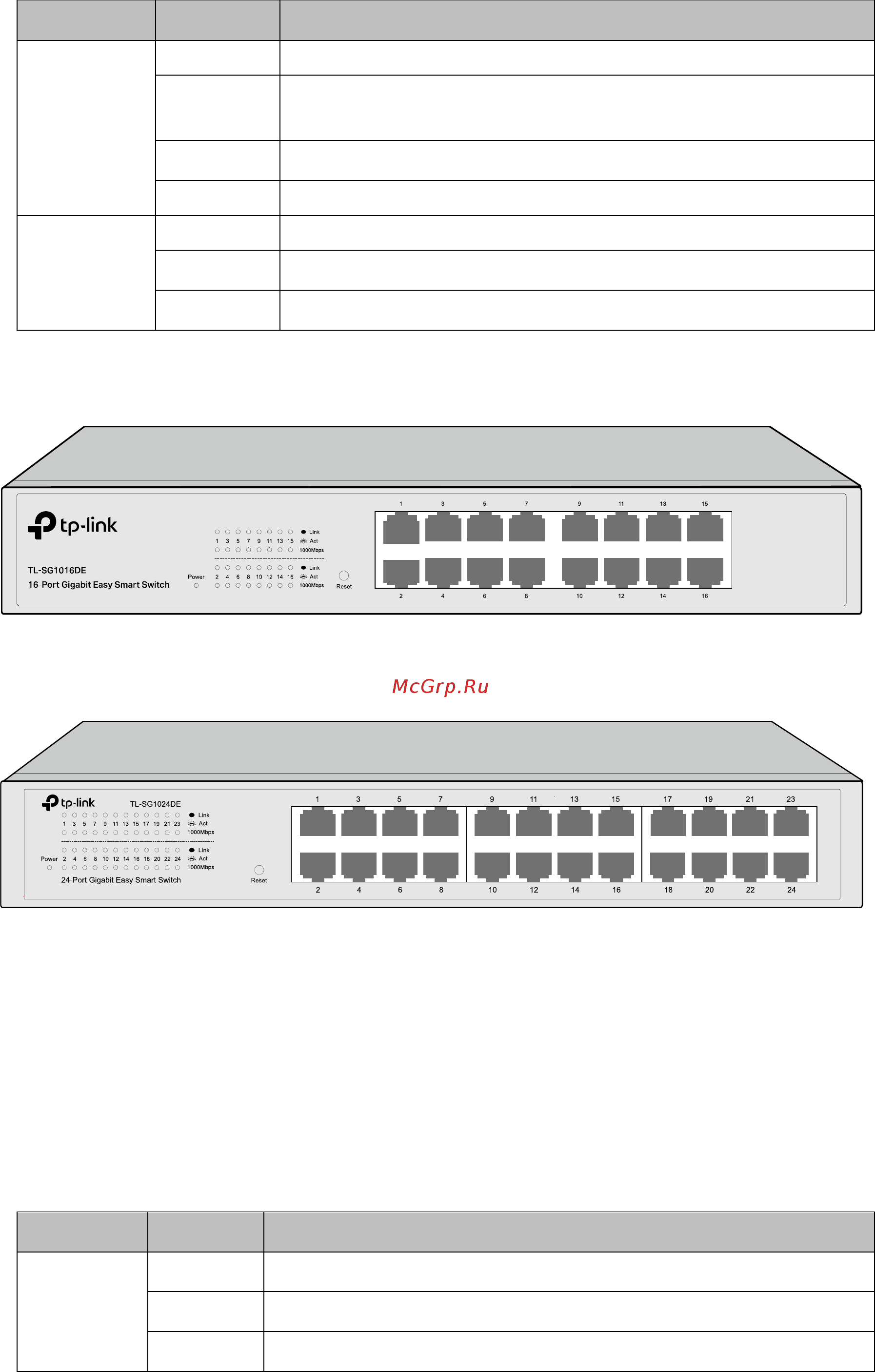

The front panel of TL-SG1016DE is shown as Figure 2-4.
Figure 2-4 Front Panel of TL-SG1016DE
The front panel of TL-SG1024DE is shown as Figure 2-5.
Figure 2-5 Front Panel of TL-SG1024DE
The following parts are located on the front panel of the switch:
Reset: With the switch powered on, press this button for five seconds or above to reset the
software setting back to factory default setting.
1000Mbps Ports: Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps
or 1000Mbps. Each has a corresponding 1000Mbps LED and Link/Act LED.
LEDs
Name
Status
Indication
Power
On
Power is on.
Flashing
Power supply is abnormal.
Off
Power is off or power supply is abnormal.
7
