Getting Started Installing the Configuration Utility
User Guide
7
the system disk. You can lick Change to modify the destination location according to
your needs.

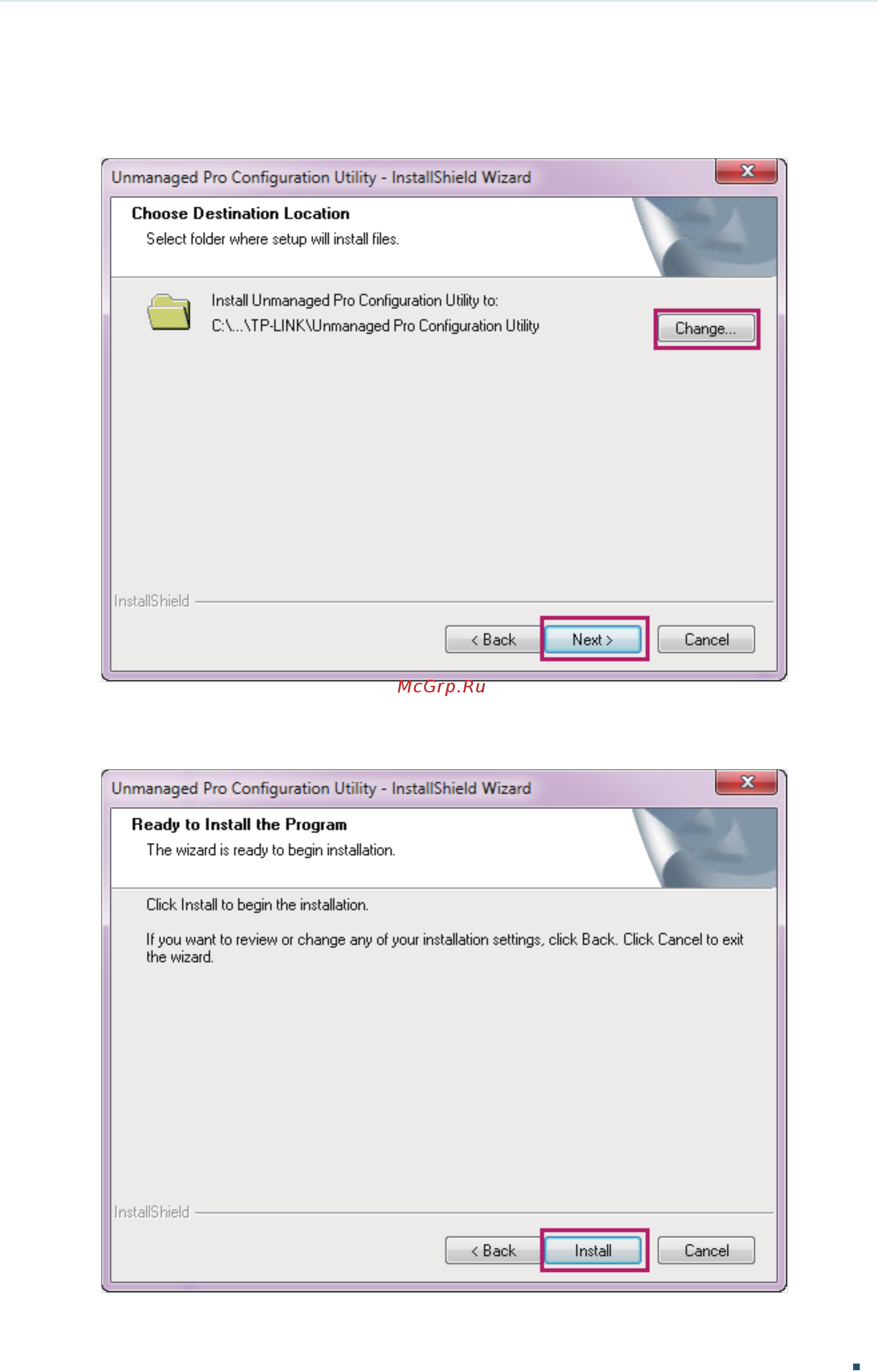

Figure 2-3 Choosing the Deitination Location
5) Click Next to load the following page. The wizard is ready to begin the installation.
Figure 2-4 Getting Ready to Install the Software
