Switching Configuring Ports
User Guide
35
2
Configuring Ports
Choose the menu Switching > Port Setting to load the following page.

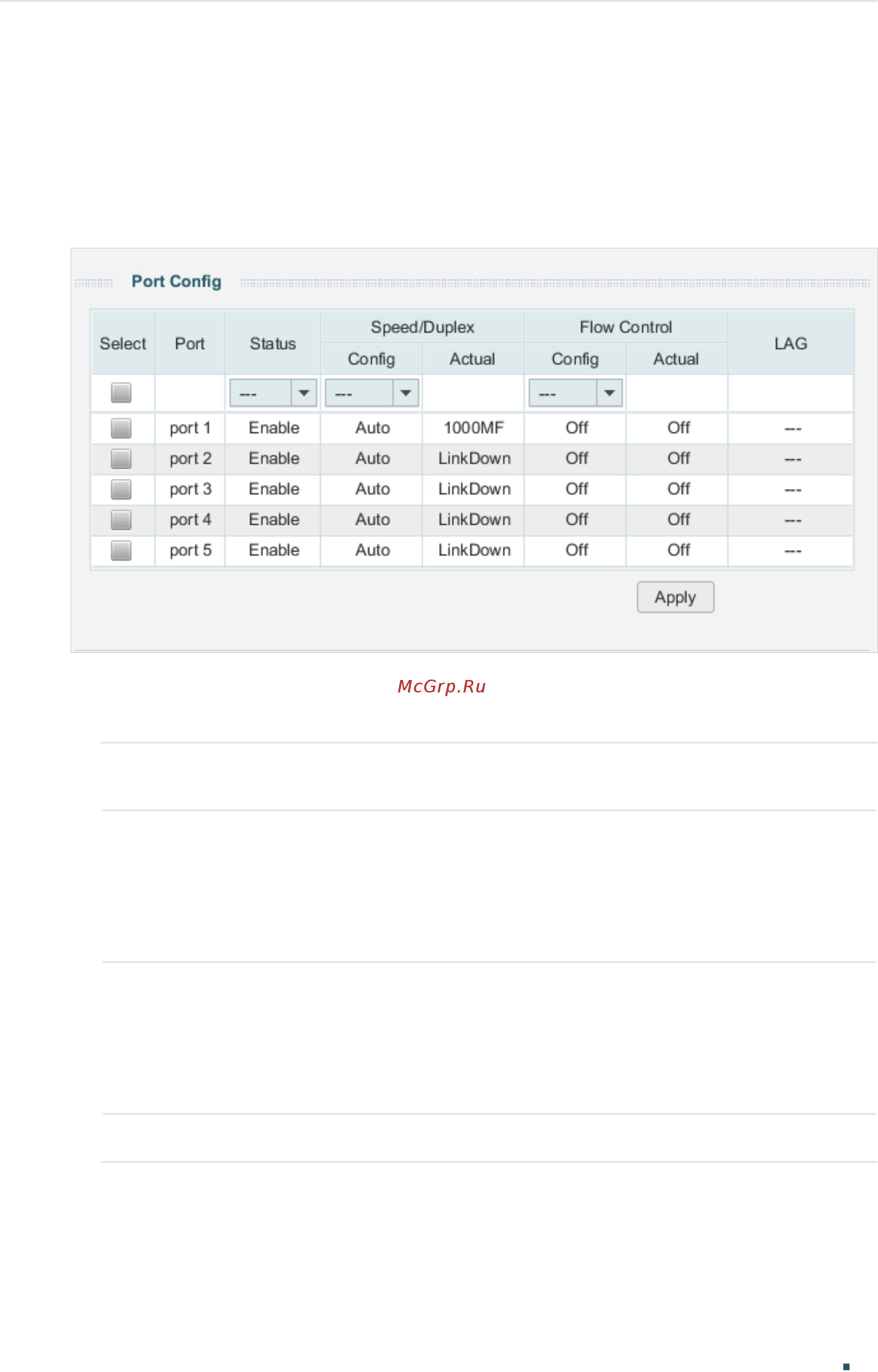

Figure 2-1 Configuring Ports
Follow these steps to configure the port parameters.
1) Select the desired ports and set basic parameters for the ports.
Status Enable or disable the port. With this option enabled, the port forwards packets
normally. Otherwise, the port does not forward packets. By default, it is enabled.
Speed/Duplex Config: Select the appropriate speed and duplex mode for the port. When Auto
is selected, the port automatically negotiates speed mode with the connected
device. The default setting is Auto. It is recommended to select Auto if both ends
of the link support auto-negotiation.
Actual: Displays the actual working state of the port.
Flow Control Config: Select On or Off to enable or disable the Flow Control feature. When Flow
Control is enabled, when the switch get overloaded, it will send a PAUSE frame
to notify the peer device to stop sending data for a specific period of time, thus
avoiding the packet loss caused by congestion. By default, it is Off.
Actual: Displays the current state of the Flow Control function of the port.
LAG Displays the LAG which the port belongs to.
2) Click Apply.
