Tp-Link TL-SG1016DE V2 [74/84] Configuring storm control
![Tp-Link TL-SG108E V2 [74/84] Configuring storm control](/views2/1473066/page74/bg4a.png)
User Guide 70
Configuring QoS Configuring Storm Control
4
Configuring Storm Control
Choose the menu QoS > Storm Control to load the following page.

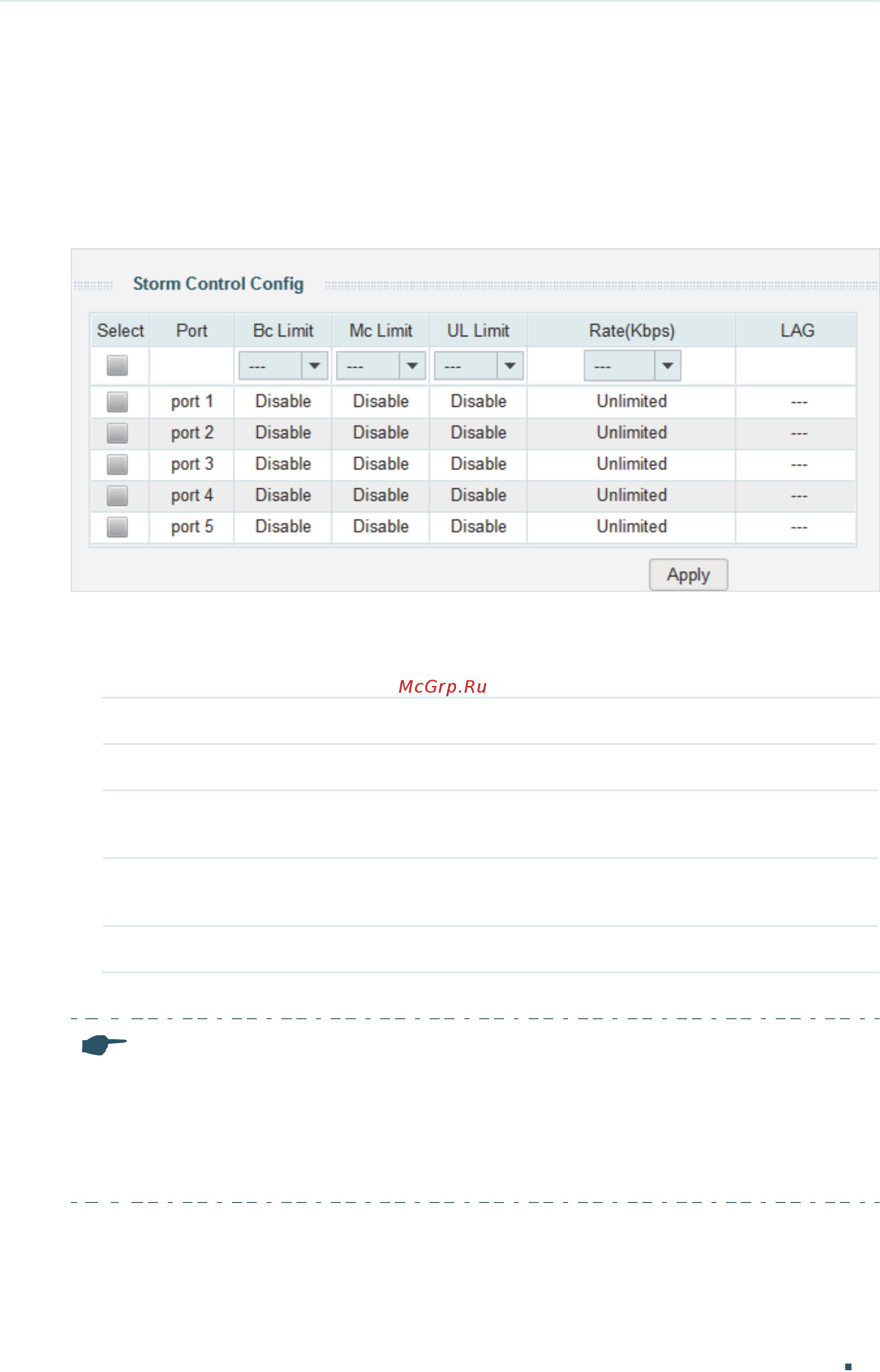

Figure 4-1 Configuring Storm Control
Follow these steps to configure storm control:
1) Select the desired ports and configure the upper rate limit for forwarding broadcast
packets, multicast packets and UL-frames (Unknown unicast frames).
Bc Limit Enable or disable the broadcast control feature for the port.
Mc Limit Enable or disable the multicast control feature for the port.
UL Limit Enable or disable the UL-Frame (unknown unicast frame) control feature for the
port.
Rate (Kbps) Specify the upper rate limit for receiving the specified packet on the port. The
packet traffic exceeding the bandwidth will be discarded.
LAG Displays the LAG the port belongs to.
2) Click Apply.
Note:
•
For a port, the storm control feature and the ingress rate control feature cannot be enabled at
the same time. If you enable storm control for a port, ingress rate control will be disabled for
that port automatically.
•
For ports in the same LAG, storm control should be configured the same to ensure a success-
ful port aggregation.
