- 13 - Hardware Installation Process
English
Step 3: Connect ribbon cables, cabinet wires, and power
supply

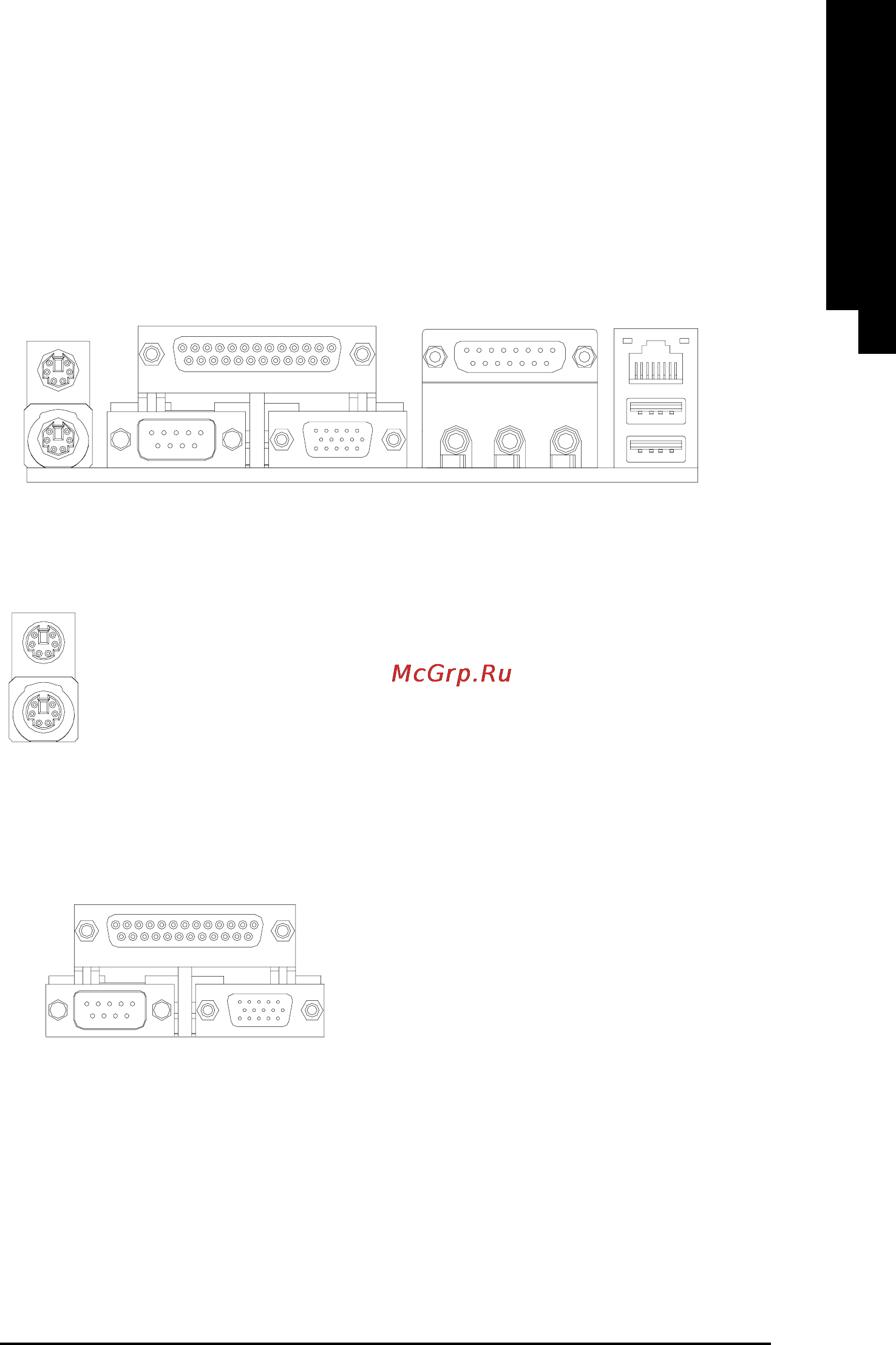

Step3-1 : I/O Back Panel Introduction
""
""
" PS/2 Keyboard and PS/2 Mouse Connector
##
##
# Parallel Port and Serial Ports (COM1/COM2)
PS/2 Mouse Connector
(6 pin Female)
PS/2 Keyboard Connector
(6 pin Female)
$This connector supports standard PS/2
keyboard and PS/2 mouse.
$ This mainboard supports 1 standard COM port,
1 VGA port and 1 LPT port. Device like printer
can be connected to LPT port ; mouse and
modem etc can be connected to COM port.
"
#$
%
&
Parallel Port
(25 pin Female)
COMA VGA
Serial Port
(9 pin Male)
VGA Port
(15 pin Female)
