User’s Guide for DS1000B series

2-10

4. Digital Filter

Press CH1→ Digital Filter to display the digital filter menu.

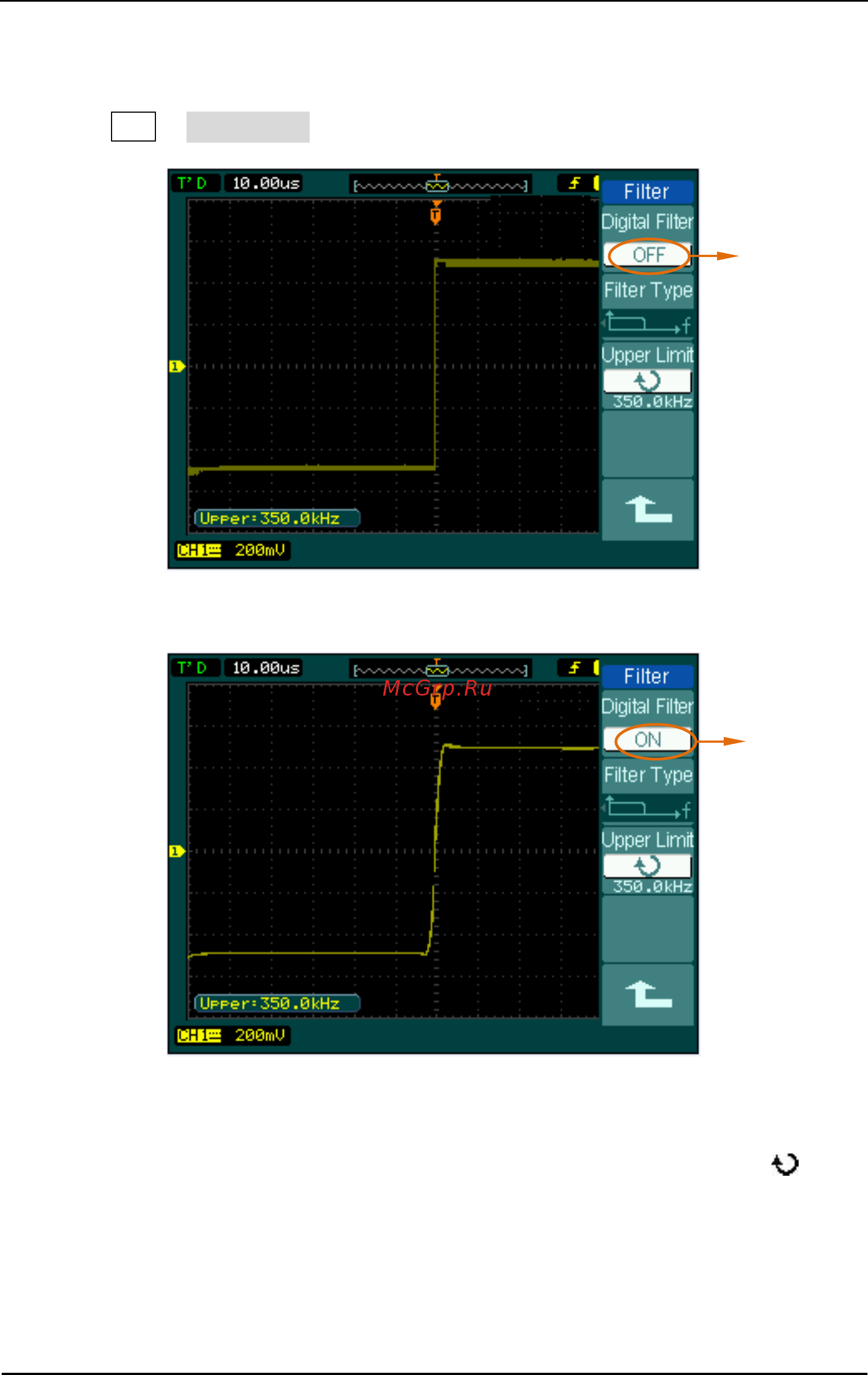

Figure 2-9 Turn off digital filter

Figure 2-10 Turn on digital filter

Turn the digital filter on or off as shown in the following figure. Turn (

) knob

to adjust the upper and lower limit of frequency after turning on the digital filter.

Turn On

Digital Filter

Turn Off

Digital Filter
