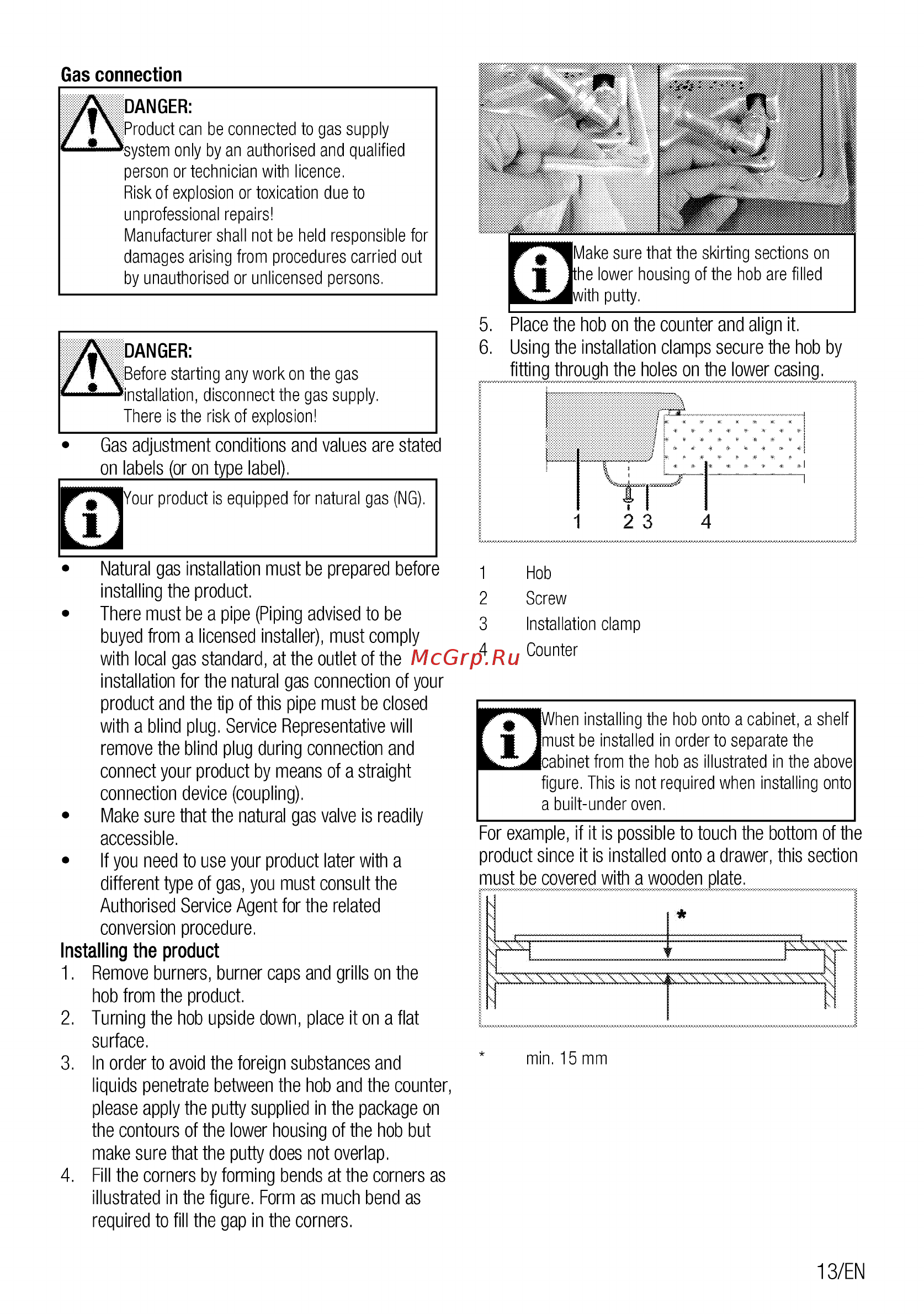

Gas connection 5 Place the hob on the counter and align it 6 Using the installation clamps secure the hob by fitting through the holes on the lower casing Natural gas installation must be prepared before installing the product There must be a pipe Piping advised to be buyed from a licensed installer must comply with local gas standard at the outlet of the 1 Hob 2 Screw 3 Installation clamp 4 Counter installation for the natural gas connection of your product and the tip of this pipe must be closed with a blind plug Service Representative will remove the blind plug during connection and connect your product by means of a straight connection device coupling Make sure that the natural gas valve is readily accessible If you need to use your product later with a different type of gas you must consult the When installing the hob onto a cabinet a shelf W Jmust be installed in order to separate the nZ cabinet from the hob as illustrated in the above figure This is not required when installing onto a built under oven For example if it is possible to touch the bottom of the product since it is installed onto a drawer this section must be covered with a wooden plate Authorised Service Agent for the related conversion procedure Installing the product 1 Remove burners burner caps and grills on the hob from the product 2 Turning the hob upside down place it on a flat surface 3 In order to avoid the foreign substances and min 15 mm liquids penetrate between the hob and the counter please apply the putty supplied in the package on the contours of the lower housing of the hob but make sure that the putty does not overlap 4 Fill the corners by forming bends at the corners as illustrated in the figure Form as much bend as required to fill the gap in the corners 13 EN
