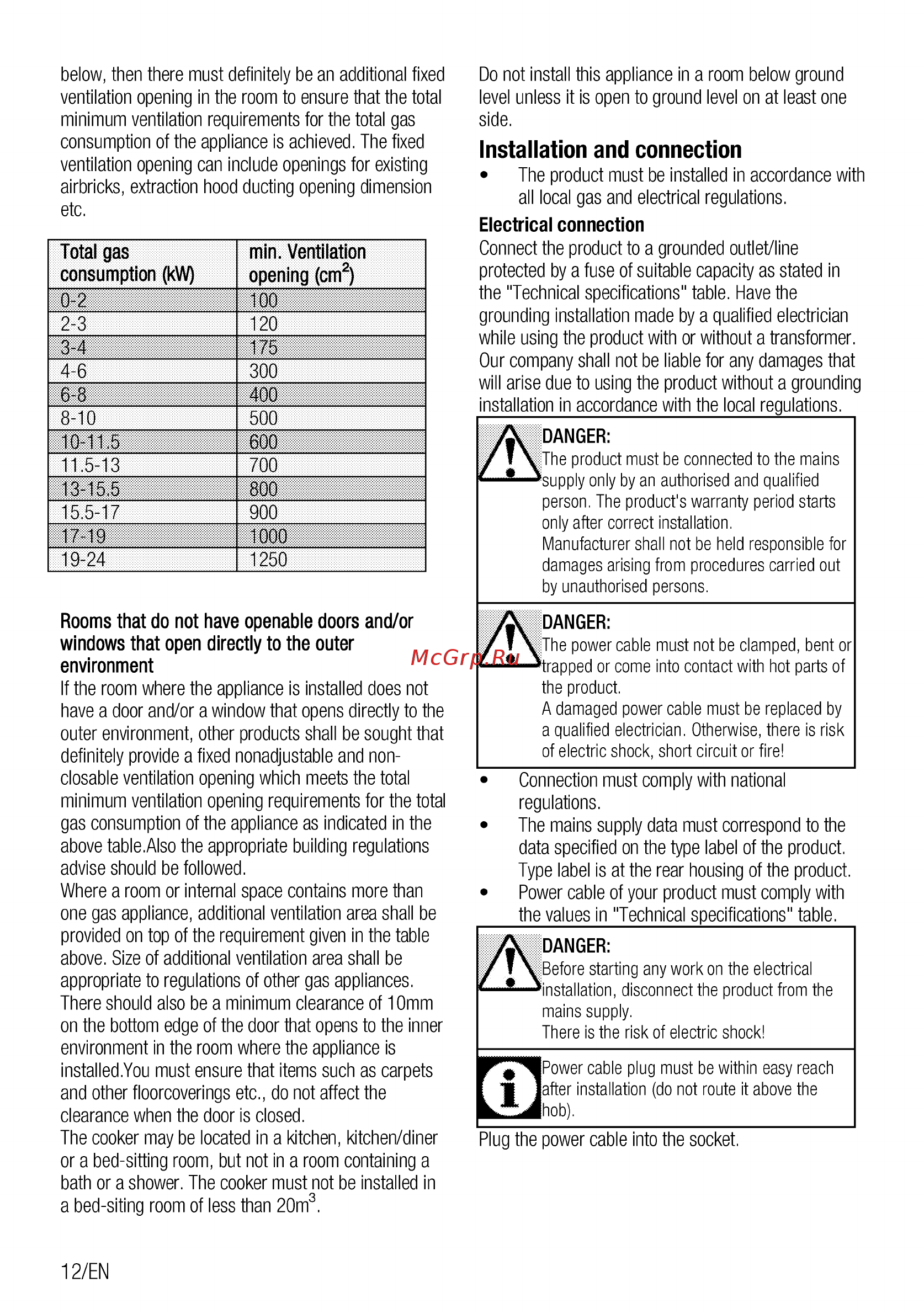

Beko HIAG64223B [12/68] Installation and connection

Содержание

Похожие устройства

below then there must definitely be an additional fixed ventilation opening in the room to ensure that the total minimum ventilation requirements for the total gas consumption of the appliance is achieved The fixed ventilation opening can include openings for existing airbricks extraction hood ducting opening dimension etc Do not install this appliance in a room below ground level unless it is open to ground level on at least one side Installation and connection The product must be installed in accordance with all local gas and electrical regulations Electrical connection min Ventilation Total gas consumption kW opening cm2 0 2 100 2 3 120 3 4 4 6 175 300 6 8 8 10 400 500 10 11 5 600 11 5 13 700 13 15 5 15 5 17 800 900 17 19 19 24 1000 DANGER The product must be connected to the mains supply only by an authorised and qualified person The product s warranty period starts only after correct installation Manufacturer shall not be held responsible for damages arising from procedures carried out by unauthorised persons 1250 Rooms that do not have openable doors and or windows that open directly to the outer environment If the room where the appliance is installed does not have a door and or a window that opens directly to the outer environment other products shall be sought that definitely provide a fixed nonadjustable and nonclosable ventilation opening which meets the total minimum ventilation opening requirements for the total gas consumption of the appliance as indicated in the above table Also the appropriate building regulations advise should be followed Where a room or internal space contains more than one gas appliance additional ventilation area shall be provided on top of the requirement given in the table above Size of additional ventilation area shall be appropriate to regulations of other gas appliances There should also be a minimum clearance of 10mm on the bottom edge of the door that opens to the inner environment in the room where the appliance is installed You must ensure that items such as carpets and other floorcoverings etc do not affect the clearance when the door is closed The cooker may be located in a kitchen kitchen diner or a bed sitting room but not in a room containing a bath or a shower The cooker must not be installed in a bed siting room of less than 20m3 12 EN Connect the product to a grounded outlet line protected by a fuse of suitable capacity as stated in the Technical specifications table Have the grounding installation made by a qualified electrician while using the product with or without a transformer Our company shall not be liable for any damages that will arise due to using the product without a grounding installation in accordance with the local regulations B DANGER The power cable must not be clamped bent or trapped or come into contact with hot parts of the product A damaged power cable must be replaced by a qualified electrician Otherwise there is risk of electric shock short circuit or fire Connection must comply with national regulations The mains supply data must correspond to the data specified on the type label of the product Type label is at the rear housing of the product Power cable of your product must comply with the values in Technical specifications table DANGER Before starting any work on the electrical installation disconnect the product from the mains supply There is the risk of electric shock J lPower cable plug must be within easy reach jafter installation do not route it above the iJhob I Plug the power cable into the socket
