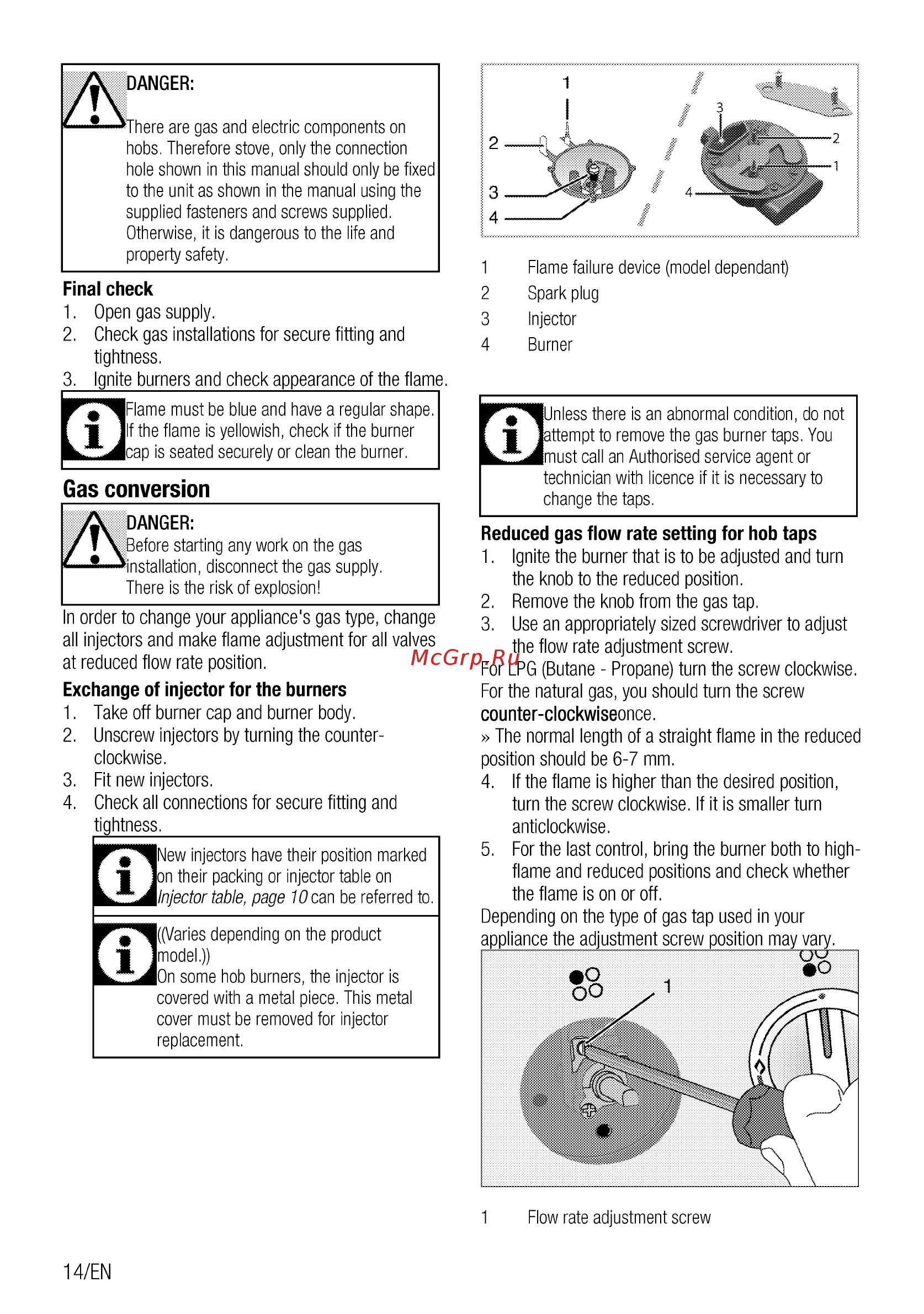

DANGER There are gas and electric components on hobs Therefore stove only the connection hole shown in this manual should only be fixed to the unit as shown in the manual using the supplied fasteners and screws supplied Otherwise it is dangerous to the life and property safety Final check 1 Open gas supply 2 Check gas installations for secure fitting and tightness 3 Ignite burners and check appearance of the flame Flame must be blue and have a regular shape If the flame is yellowish check if the burner cap is seated securely or clean the burner Gas conversion______________________ DANGER Before starting any work on the gas installation disconnect the gas supply There is the risk of explosion In order to change your appliance s gas type change all injectors and make flame adjustment for all valves at reduced flow rate position Exchange of injector for the burners 1 Take off burner cap and burner body 2 Unscrew injectors by turning the counter clockwise 3 Fit new injectors 4 Check all connections for secure fitting and tightness lew injectors have their position marked n their packing or injector table on ijector table page 10 can be referred to B Varies depending on the product lodel n some hob burners the injector is covered with a metal piece This metal cover must be removed for injector replacement 1 2 3 4 Flame failure device model dependant Spark plug Injector Burner Unless there is an abnormal condition do not V jattempt to remove the gas burner taps You must call an Authorised service agent or technician with licence if it is necessary to change the taps Reduced gas flow rate setting for hob taps 1 Ignite the burner that is to be adjusted and turn the knob to the reduced position 2 Remove the knob from the gas tap 3 Use an appropriately sized screwdriver to adjust the flow rate adjustment screw For LPG Butane Propane turn the screw clockwise For the natural gas you should turn the screw counter clockwiseonce The normal length of a straight flame in the reduced position should be 6 7 mm 4 If the flame is higher than the desired position turn the screw clockwise If it is smaller turn anticlockwise 5 For the last control bring the burner both to highflame and reduced positions and check whether the flame is on or off Depending on the type of gas tap used in your appliance the adjustment screw position may vary 1 Flow rate adjustment screw 14 EN
