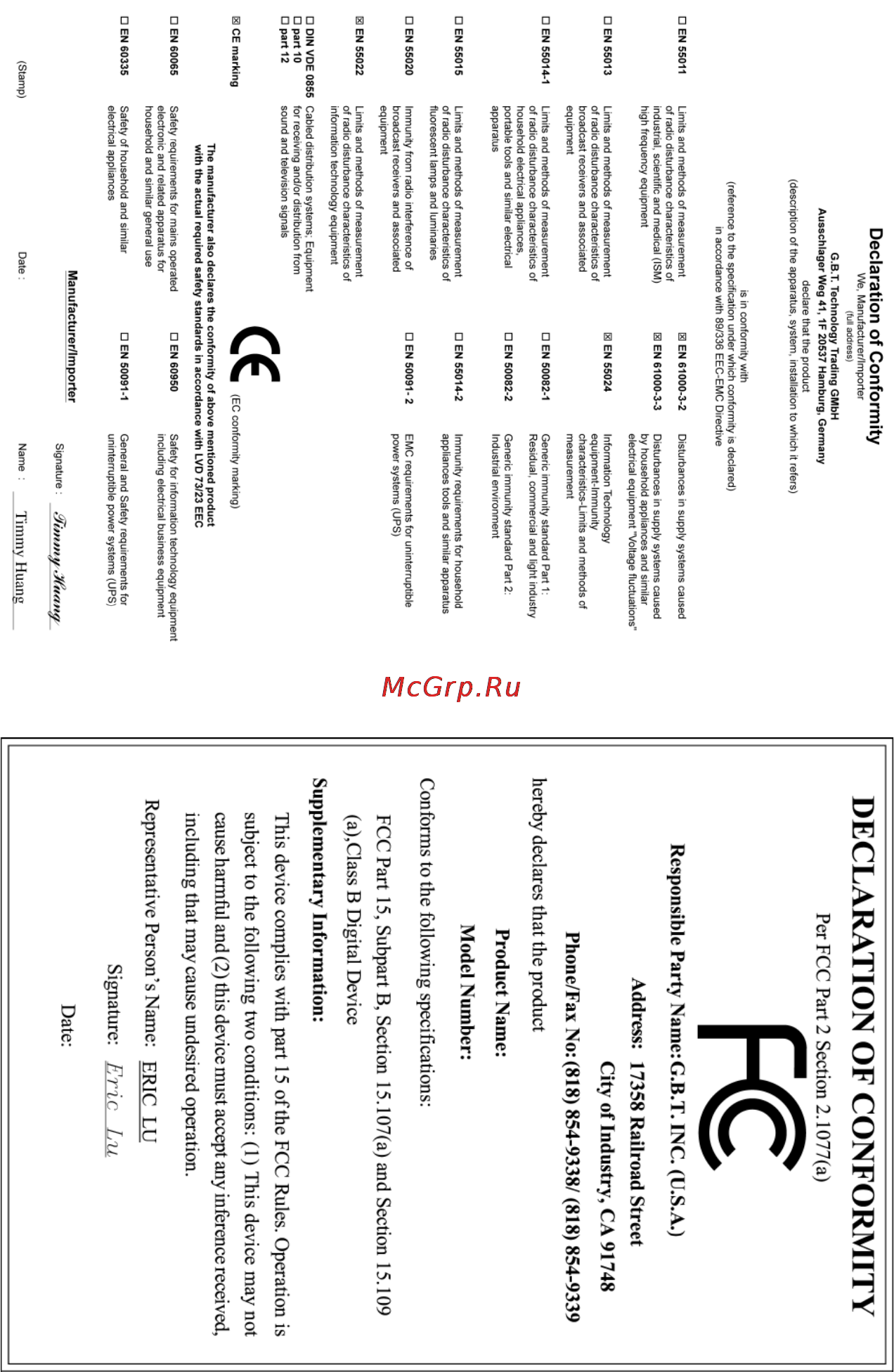

![Gigabyte GA-8VM800PMD-775-RH Инструкция по эксплуатации онлайн [2/88] 44065](/img/pdf.png)
Gigabyte GA-8VM800PMD-775-RH Инструкция по эксплуатации онлайн [2/88] 44065
![Gigabyte GA-8VM800PMD-775-RH Инструкция по эксплуатации онлайн [2/88] 44065](/views2/1047682/page2/bg2.png)
Содержание
- Ga 8vm800pmd 775 rh 1
- Lga775 processor motherboard 1
- Me vm800pmtr 1001r 1
- Pentiu 1
- Rev 1001 1
- User s manual 1
- Copyright 3
- Notice 3
- Product manual classification 3
- Chapter 1 hardware installation 9 4
- Chapter 2 bios setup 29 4
- Item checklist 6 optional accessories 6 ga 8vm800pmd 775 rh motherboard layout 7 block diagram 8 4
- Table of contents 4
- Chapter 3 drivers installation 47 5
- Chapter 4 appendix 51 5
- Item checklist 6
- Optional accessories 6
- Ga 8vm800pmd 775 rh 7
- Ga 8vm800pmd 775 rh motherboard layout 7
- Block diagram 8
- 1 considerations prior to installation 9
- Chapter 1 hardware installation 9
- English 9
- Installation notices 9
- Instances of non warranty 9
- Preparing your computer 9
- 2 feature summary 10
- English 10
- English 11
- 3 1 installation of the cpu 12
- 3 installation of the cpu and cpu cooler 12
- English 12
- 3 2 installation of the cpu cooler 13
- English 13
- 4 installation of memory 14
- English 14
- 5 installation of expansion cards 15
- English 15
- 6 i o back panel introduction 16
- English 16
- Lan port 16
- Line in 16
- Line out front speaker out 16
- Mic in 16
- Parallel port 16
- Ps 2 keyboard and ps 2 mouse connector 16
- Serial port 16
- Usb port 16
- Vga port 16
- 7 connectors introduction 17
- English 17
- 2 atx_12v atx power connector 18
- English 18
- Ga 8vm800pmd 775 rh motherboard 18 18
- With the use of the power connector the power supply can supply enough stable power to all the components on the motherboard before connecting the power connector please make sure that all components and devices are properly installed align the power connector with its proper location on the motherboard and connect tightly the atx_12v power connector mainly supplies power to the cpu if the atx_12v power connector is not connected the system will not start caution please use a power supply that is able to handle the system voltage requirements it is recommended that a power supply that can withstand high power consumption be used 300w or greater if a power supply is used that does not provide the required power the result can lead to an unstable system or a system that is unable to start 18
- 4 cpu_fan sys_fan cooler fan power connector 19
- English 19
- Fdd fdd connector 19
- Hardware installation 19 19
- The cooler fan power connector supplies a 12v power voltage via a 3 pin 4 pin cpu_fan power connector and possesses a foolproof connection design most coolers are designed with color coded power connector wires a red power connector wire indicates a positive connection and requires a 12v power voltage the black connector wire is the ground wire gnd remember to connect the cpu system fan cable to the cpu_fan sys_fan connector to prevent cpu damage or system hanging caused by overheating 19
- The fdd connector is used to connect the fdd cable while the other end of the cable connects to the fdd drive the types of fdd drives supported are 360kb 720kb 1 mb 1 4mb and 2 8mb before attaching the fdd cable please take note of the foolproof groove in the fdd connector 19
- An ide device connects to the computer via an ide connector one ide connector can connect to one ide cable and the single ide cable can then connect to two ide devices hard drive or optical drive if you wish to connect two ide devices please set the jumper on one ide device as master and the other as slave for information on settings please refer to the instructions located on the ide device before attaching the ide cable please take note of the foolproof groove in the ide connector 20
- English 20
- Ga 8vm800pmd 775 rh motherboard 20 20
- Ide1 ide2 ide connector 20
- Sata0 sata1 serial ata connector 20
- Serial ata can provide up to 150mb s transfer rate please refer to the bios setting for the serial ata and install the proper driver in order to work properly 20
- English 21
- F_panel front panel connector 21
- Hardware installation 21 21
- Please connect the power led pc speaker reset switch and power switch etc of your chassis front panel to the f_panel connector according to the pin assignments below 21
- English 22
- F_audio front audio panel connector 22
- Ga 8vm800pmd 775 rh motherboard 22 22
- Please make sure the pin assignment on the cable is the same as the pin assigment on the mb header to find out if the chassis you are buying support front audio panel connector please contact your dealer if you want to use front audio connector you must remove the jumpers from pins 5 6 9 10 22
- Pwr_led 22
- The pwr_led connector is connected with the system power indicator to indicate whether the system is on off it will blink when the system enters suspend mode 22
- Aux_in aux in connector white 23
- Cd_in cd in connector black 23
- Connect cd rom or dvd rom audio out to the connector 23
- Connect other device such as pci tv tunner audio out to the connector 23
- English 23
- Hardware installation 23 23
- English 24
- Ga 8vm800pmd 775 rh motherboard 24 24
- Please contact your nearest dealer for optional sur_cen cable 24
- Spdif_io spdif in out connector red 24
- Sur_cen surround center connector black 24
- The spdif output is capable of providing digital audio to external speakers or compressed ac3 data to an external dolby digital decoder use this feature only when your stereo system has digital input function use spdif in feature only when your device has digital output function be careful with the polarity of the spdif_io connector check the pin assignment carefully while you connect the spdif cable incorrect connection between the cable and connector will make the device unable to work or even damage it for optional spdif cable please contact your local dealer 24
- Be careful with the polarity of the comb connector check the pin assignments while you connect the comb cable please contact your nearest dealer for optional comb cable 25
- Be careful with the polarity of the front usb connector check the pin assignment carefully while you connect the front usb cable incorrect connection between the cable and connector will make the device unable to work or even damage it for optional front usb cable please contact your local dealer 25
- Comb comb connector 25
- English 25
- F_usb1 f_usb2 front usb connectors 25
- Hardware installation 25 25
- Ci chassis intrusion case open 26
- Clr_cmos clear cmos 26
- English 26
- Ga 8vm800pmd 775 rh motherboard 26 26
- This 2 pin connector allows your system to detect if the chassis cover is removed you can check the case opened status in bios setup 26
- You may clear the cmos data to its default values by this header to clear cmos temporarily short the two pins default doesn t include the jumper to avoid improper use of this header 26
- Battery 27
- English 27
- Hardware installation 27 27
- English 28
- Chapter 2 bios setup 29
- Control keys 29
- English 29
- Main menu 29
- Status page setup menu option page setup menu 29
- Advanced bios features 30
- English 30
- Fail safe defaults indicates the value of the system parameters which the system would be in safe configuration 30
- Frequency voltage control 30
- Ga 8vm800pmd 775 rh motherboard 30 30
- Integrated peripherals 30
- Load fail safe defaults 30
- Pc health status 30
- Please load optimized defaults in the bios when somehow the system works not stable as usual this action makes the system reset to the default for stability the bios setup menus described in this chapter are for reference only and may differ from the exact settings for your motherboard 30
- Pnp pci configuration 30
- Power management setup 30
- Standard cmos features 30
- The main menu for example bios ver f4a 30
- This setup page includes all onboard peripherals 30
- This setup page includes all the configurations of pci pnp isa resources 30
- This setup page includes all the items in standard compatible bios 30
- This setup page includes all the items of award special enhanced features 30
- This setup page includes all the items of green function features 30
- This setup page is control cpu s clock and frequency ratio 30
- This setup page is the system auto detect temperature voltage fan speed 30
- To accept or enter the sub menu 30
- English 31
- 1 standard cmos features 32
- Access mode use this to set the access mode for the hard drive the four options are chs lba large auto default auto 32
- Access mode use this to set the access mode for the hard drive the two options are large auto default auto 32
- Day the day from 1 to 31 or the maximum allowed in the month 32
- English 32
- Ga 8vm800pmd 775 rh motherboard 32 32
- Ide channel 0 1 master slave 32
- Ide channel 2 3 master 32
- Ide hdd auto detection press enter to select this option for automatic device detection extended ide drive ide sata devices setup you can use one of two methods auto allows bios to automatically detect sata ide devices during post default value none select this if no sata devices are used and the system will skip the automatic detection step and allow for faster system start up 32
- Ide hdd auto detection press enter to select this option for automatic device detection ide device setup you can use one of three methods auto allows bios to automatically detect ide sata devices during post default none select this if no ide sata devices are used and the system will skip the automatic detection step and allow for faster system start up manual user can manually input the correct settings 32
- Month the month jan through dec 32
- The time is calculated base on the 24 hour military time clock for example 1 p m is 13 00 00 32
- Week the week from sun to sat determined by the bios and is display only 32
- Year the year from 1999 through 2098 32
- Base memory 33
- Drive a 33
- English 33
- Extended memory 33
- Floppy 3 mode support for japan area 33
- Halt on 33
- Memory 33
- 2 advanced bios features 34
- Cdrom select your boot device priority by cdrom 34
- Disabled disable this function 34
- English 34
- First second third boot device 34
- Floppy select your boot device priority by floppy 34
- Ga 8vm800pmd 775 rh motherboard 34 34
- Hard disk boot priority 34
- Hard disk select your boot device priority by hard disk 34
- Legacy lan select your boot device priority by legacy lan 34
- Ls120 select your boot device priority by ls120 34
- Note this item will show up when you install a processor that supports this function 34
- Password check 34
- Setup the system will boot but access to setup will be denied if the correct password is not entered at the prompt default value 34
- System the system can not boot and can not access to setup page will be denied if the correct password is not entered at the prompt 34
- To exit this menu 34
- Usb cdrom select your boot device priority by usb cdrom usb hdd select your boot device priority by usb hdd 34
- Usb fdd select your boot device priority by usb fdd 34
- Usb zip select your boot device priority by usb zip 34
- Zip select your boot device priority by zip 34
- Cpu eist functio 35
- Cpu enhanced halt c1e 35
- Cpu hyper threadin 35
- Cpu thermal monitor 2 tm2 35
- English 35
- Limit cpuid max to 35
- No execute memory protec 35
- Virtualization technology 35
- 3 integrated peripherals 36
- Ac97 audio 36
- Auto enable onboard ac 97 audio function default value 36
- Disabled disable onboard 1st channel ide port 36
- Disabled disable onboard 2nd channel ide port 36
- Disabled disable this function 36
- Disabled disable usb 1 controller 36
- Disabled disable usb 2 controller 36
- Disabled disable usb keyboard support default value 36
- Disabled disable vt8237r plus serial ata supported 36
- Enabled enable onboard 1st channel ide port default value 36
- Enabled enable onboard 2nd channel ide port default value 36
- Enabled enable usb 1 controller default value 36
- Enabled enable usb 2 controller default value 36
- Enabled enable usb keyboard support 36
- Enabled enable vt8237r plus serial ata supported default value 36
- English 36
- Ga 8vm800pmd 775 rh motherboard 36 36
- Ide set onboard sata mode to ide default value 36
- Onchip ide channel0 36
- Onchip ide channel1 36
- Onchip serial ata 36
- Raid set onboard sata mode to raid 36
- Sata mode 36
- Usb 1 controller 36
- Usb 2 controller 36
- Usb keyboard support 36
- English 37
- Epp mode select 37
- Legacy usb storage detect 37
- Onboard h w lan 37
- Onboard lan boot rom 37
- Onboard parallel port 37
- Onboard serial port 1 37
- Onboard serial port 2 37
- Parallel port mode 37
- Usb mouse support 37
- 4 power management setup 38
- Ac back function 38
- Acpi suspend type 38
- Delay 4 sec press power button 4 sec to power off enter suspend if button is pressed less than 4 sec 38
- Disabled disable usb device wake up from s3 default value 38
- Disabled disabled this function default value 38
- Enabled enable usb device wake up from s3 38
- English 38
- Full on when ac power back to the system the system always in on state 38
- Ga 8vm800pmd 775 rh motherboard 38 38
- Instant off press power button then power off instantly default value 38
- Keyboard 98 if your keyboard have power key button you can press the key to power on the system 38
- Keyboard power on 38
- Memory when ac power back to the system the system will be back to the last state before ac power is lost 38
- Password enter from 1 to 8 characters to set the keyboard power on password 38
- S1 pos set acpi suspend type to s1 pos power on suspend default value 38
- S3 str set acpi suspend type to s3 str suspend to ram 38
- Soft off by pwrbtn 38
- Soft off when ac power back to the system the system will be in off state default value 38
- Usb device wake up from s3 38
- English 39
- Modem ring resume 39
- Mouse power on 39
- Pme event wake up 39
- Resume by alarm 39
- 4 5 7 9 10 11 12 14 15 set irq 3 4 5 7 9 10 11 12 14 15 to pci 1 40
- 4 5 7 9 10 11 12 14 15 set irq 3 4 5 7 9 10 11 12 14 15 to pci 2 40
- 4 5 7 9 10 11 12 14 15 set irq 3 4 5 7 9 10 11 12 14 15 to pci 3 40
- 5 pnp pci configurations 40
- Auto auto assign irq to pci 1 default value 40
- Auto auto assign irq to pci 2 default value 40
- Auto auto assign irq to pci 3 default value 40
- English 40
- Ga 8vm800pmd 775 rh motherboard 40 40
- Pci 1 irq assignment 40
- Pci 2 irq assignment 40
- Pci 3 irq assignment 40
- 6 pc health status 41
- Bios setup 41 41
- Case opened 41
- Cpu smart fan contro 41
- Current sys cpu fan speed rpm 41
- Current voltage v vcore ddr18v 3 v 12v 41
- Detect system cpu fan speed status automatically 41
- Detect system cpu temperature automatically 41
- Detect system s voltage status automatically 41
- Disabled disable fan warning function default value 41
- Disabled disable this function 41
- Disabled don t reset case open status default value 41
- Enabled clear case open status at next boot 41
- Enabled enable fan warning function 41
- Enabled when this function is enabled cpu fan will run at different speed depending on cpu temperature users can adjust the fan speed with easy tune based on their requirements default value 41
- English 41
- If the case is closed case opened will show no if the case has been opened case opened will show yes if you want to reset case opened value set reset case open status to enabled then save bios setup and restart your system 41
- Note this function is only supported on 4 pin cpu fans 41
- Reset case open status 41
- System cpu fan fail warning 41
- System cpu temperature 41
- 7 frequency voltage control 42
- Auto detect pci clk 42
- Cpu clock rati 42
- Dram clock 42
- English 42
- Spread spectrum 42
- 8 load fail safe defaults 43
- 9 load optimized defaults 43
- Bios setup 43 43
- English 43
- Fail safe defaults contain the most appropriate values of the system parameters that allow minimum system performance 43
- Selecting this field loads the factory defaults for bios and chipset features which the system automatically detects 43
- 10 set supervisor user password 44
- English 44
- Ga 8vm800pmd 775 rh motherboard 44 44
- When you are prompted to enter password a message password disabled will appear to confirm the password being disabled once the password is disabled the system will boot and you can enter setup freely the bios setup program allows you to specify two separate passwords supervisor password and a user password when disabled anyone may access all bios setup program function when enabled the supervisor password is required for entering the bios setup program and having full configuration fields the user password is required to access only basic items if you select system at password check in advance bios features menu you will be prompted for the password every time the system is rebooted or any time you try to enter setup menu if you select setup at password check in advance bios features menu you will be prompted only when you try to enter setup 44
- 11 save exit setup 45
- 12 exit without saving 45
- Bios setup 45 45
- English 45
- Type y will quit the setup utility and save the user setup value to rtc cmos type n will return to setup utility 45
- Type y will quit the setup utility without saving to rtc cmos type n will return to setup utility 45
- English 46
- 1 install chipset drivers 47
- Chapter 3drivers installation 47
- English 47
- 2 software application 48
- 3 software information 48
- English 48
- 4 hardware information 49
- 5 contact us 49
- English 49
- English 50
- 1 1 easytune 5 introduction 51
- 1 unique software utilities 51
- Chapter 4 appendix 51
- English 51
- 1 2 xpress recovery introduction 52
- Boot from cd dvd 52
- English 52
- How to use the xpress recovery2 52
- System requirements 52
- Xpress recovery2 52
- Backup 53
- English 53
- Limitations 53
- Precautions 53
- Reboot 53
- Remove 53
- Restore 53
- The main screen of xpress recovery2 53
- 1 3 flash bios method introduction 54
- Before you begin 54
- English 54
- Method 1 q flas 54
- Part one updating bios with q flas 54
- Utility 54
- Utility on dual bios motherboards 54
- Action bar 55
- Appendix 55 55
- Contains the names of eight tasks and two item showing information about the bios rom type blocking a task and pressing enter key on your keyboard to enable execution of the task 55
- Contains the names of four actions needed to operate the q flash dual bios utility pressing the buttons mentioned on your keyboards to perform these actions 55
- Contains the names of four tasks blocking a task and pressing enter key on your keyboard to enable execu tion of the task 55
- Dual bios utility bar 55
- Dual bios utility screen 55
- English 55
- Entering the q flas 55
- Exploring the q flas 55
- Q flas 55
- Step 2 press f8 button on your keyboard and then y button to enter the dual bios q flash utility 55
- Step1 to use q flash utility you must press del in the boot screen to enter bios menu 55
- Task menu for dual bios 55
- Task menu for dual bios utility 55
- Task menu for q flas 55
- Task menu for q flash utility 55
- The q flash dual bios utility screen consists of the following key components 55
- Utility 55
- Utility title 55
- After bios file is read you ll see a confirmation dialog box asking you are you sure to update bios 56
- After pressing enter you ll then see the progress of reading the bios file from the floppy disk 56
- Bios file in the floppy disk 56
- Do not turn off power or 56
- English 56
- Ga 8vm800pmd 775 rh motherboard 56 56
- If you want to save the current bios for backup purpose you can begin step 1 with save main bios to floppy item 56
- In this example we only download one bios file to the floppy disk so only one bios file 8knxpu fba is listed 56
- Move to the bios file you want to flash and press enter 56
- Please confirm again you have the correct bios file for your motherboard 56
- Press arrow buttons on your keyboard to move the light bar to load main bios from floppy item in the q flash menu and press enter button later you will see a box pop up showing the bios files you previously downloaded to the floppy disk 56
- Reset your system at this stage 56
- This section tells you how to update bios using the q flash utility as described in the before you begin section above you must prepare a floppy disk having the bios file for your motherboard and insert it to your computer if you have already put the floppy disk into your system and have entered the q flash utility please follow the steps below to flash bios 56
- Using the q flas 56
- Utility 56
- After system reboots you may find the bios version on your boot screen becomes the one you flashed 57
- Appendix 57 57
- English 57
- Please do not take out the floppy disk when it begins flashing bios 57
- Press any keys to return to the q flash menu when the bios updating procedure is completed 57
- Press esc and then y button to exit the q flash utility the computer will restart automatically after you exit q flash 57
- Press y button on your keyboard after you are sure to update bios then it will begin to update bios the progress of updating bios will be displayed 57
- The bios file becomes fba after 57
- To flash the backup bios too 57
- Updating 57
- You can repeat step 1 to 57
- English 58
- Ga 8vm800pmd 775 rh motherboard 58 58
- Part two 58
- Press del to enter bios menu after system reboots when you are in bios menu move to load optimized defaults item and press enter to load bios optimized defaults normally the system redetects all devices after bios has been upgraded therefore we highly recommend reloading the bios defaults after bios has been upgraded 58
- Press y on your keyboard to load defaults 58
- Press y on your keyboard to save and exit 58
- Select save exit setup item to save the settings to cmos and exit the bios menu system will reboot after you exit the bios menu the procedure is completed 58
- This part guides users of single bios motherboards how to update bios using the q flas 58
- Updating bios with q flas 58
- Utility 58
- Utility on single bios motherboards 58
- Action bar 59
- After bios file is read you ll see a confirmation dialog box asking you are you sure to update bios 59
- Appendix 59 59
- Bios file in the floppy 59
- Contains the names of four actions needed to operate the q flash utility pressing the buttons mentioned on your keyboards to perform these actions 59
- Contains the names of three tasks blocking a task and pressing enter key on your keyboard to enable execution of the task 59
- Do not turn off power or 59
- English 59
- Exploring the q flas 59
- If you want to save the current bios for backup purpose you can begin step 1 with save bios to floppy item 59
- Move to the bios file you want to flash and press enter in this example we only download one bios file to the floppy disk so only one bios file 8ge800 f4 is listed 59
- Please confirm again you have the correct bios file for your motherboard 59
- Please do not take out the floppy disk when it begins flashing bios 59
- Press arrow buttons on your keyboard to move the light bar to update bios from floppy item in the q flash menu and press enter button later you will see a box pop up showing the bios files you previously downloaded to the floppy disk 59
- Q flas 59
- Reset your system at this stage 59
- Task menu for q flas 59
- Task menu for q flash utility 59
- The q flashbios utility screen consists of the following key components 59
- This section tells you how to update bios using the q flash utility as described in the before you begin section above you must prepare a floppy disk having the bios file for your motherboard and insert it to your computer if you have already put the floppy disk into your system and have entered the q flash utility please follow the steps below to flash bios 59
- Using the q flas 59
- Utility 59
- Utility bar 59
- Utility screen 59
- After system reboots you may find the bios version on your boot screen becomes the one you flashed 60
- At this stage 60
- Congratulation you have updated bios successfully 60
- Do not turn off power or reset your system 60
- English 60
- Ga 8vm800pmd 775 rh motherboard 60 60
- Press any keys to return to the q flash menu when the bios updating procedure is completed 60
- Press del to enter bios menu after system reboots and load bios fail safe defaults see how to load bios fail safe defaults please kindly refer to step 6 to 7 in part one 60
- Press esc and then y button to exit the q flash utility the computer will restart automatically after you exit q flash 60
- Press y button on your keyboard after you are sure to update bios then it will begin to update bios the progress of updating bios will be shown at the same time 60
- The bios file becomes f4 after updating 60
- English 61
- Method 2 bio 61
- Methods and steps 61
- Utility 61
- English 62
- 1 4 configuring sata hard drive s 63
- 1 install sata hard drive s in your system 63
- 2 configure sata controller mode and boot sequence in bios setup 3 configure raid set in raid bios 63
- 4 make a floppy disk containing the sata controller driver 5 install the sata controller driver during os installation 63
- Before you begin 63
- English 63
- To configure sata hard drive s follow the steps below 1 install sata hard drive s in your system 63
- 2 configuring sata controller mode and boot sequence in bios setup 64
- English 64
- Figure 1 64
- Ga 8vm800pmd 775 rh motherboard 64 64
- The bios setup menus described in this section may not show the exact settings for your motherboard the actual bios setup menu options you will see shall depend on the motherboard you have and the bios version 64
- You have to make sure whether the sata controller is configured correctly in system bios setup and set bios boot sequence for the sata hard drive s step 1 turn on your computer and press del to enter bios setup during post power on self test if you want to create raid select sata mode under the integrated peripherals menu figure 1 and set this item to raid ide by default set sata mode to ide if you do not want to create raid 64
- Appendix 65 65
- English 65
- Figure 2 65
- Step 2 set first boot device under the advanced bios features menu to cdrom to boot from cd rom after system restarts figure 2 65
- Step 3 save and exit bios setup 65
- 3 configuring raid set in raid bios 66
- English 66
- Enter the raid bios setup utility to configure a raid array skip this step and proceed to section 4 if you do not want to create raid 66
- Figure 3 66
- Figure 4 66
- Ga 8vm800pmd 775 rh motherboard 66 66
- Step 1 after the post memory test begins and before the operating system boot begins the following information will appear on screen figure 3 press the tab key to enter the vt8237 serial ata raid bios configuration utility 66
- Step 2 in the vt8237 sata raid bios utility screen figure 4 you can use the up or down arrow key to highlight through choices highlight an item that you want to execute and press enter 66
- A create array in main menu select create array and press enter a screen similar to figure 5 below will appear 67
- Appendix 67 67
- English 67
- Figure 5 67
- Figure 6 67
- The first step to create a raid array is to set the raid mode select array mode and press enter and the raid mode selection menu will appear figure 6 the supported raid modes include raid 0 for performance raid 1 for data protection and raid span for capacity use the up or down arrow key to select a raid mode 67
- After selecting a raid mode you must decide whether you want the raid array to be configured automatically or manually auto setup allows bios to assign the hard drives and create arrays automatically but it does not duplicate the mirroring drives even if user selects create and duplicate for raid 1 it is recom mended all hard drives are new ones when you want to create an array select disk drives lets users select the array drives by their requirements select the select disk drives item and press enter use the arrow keys to select the target hard drive s the selected hard drives will be marked with an asterisk figure 7 68
- English 68
- Figure 7 68
- Figure 8 68
- Ga 8vm800pmd 775 rh motherboard 68 68
- If you select to create raid 0 array manually you can specify the block size use the up or down arrow keys to select block size and press enter select the block size from the popup menu the block size can be set between 4kb to 64kb figure 8 68
- Next use the arrow keys to select start create process and press enter the prompt the data on the selected disks will be destroied continue y n will appear press y to confirm or n to abort important all existing contents in the hard drive will be destroyed after the array creation 68
- Appendix 69 69
- B delete array if you want to delete an existing array select delete array in main menu and press enter the channel column will be activated select the member of an array that is to be deleted and press enter a warning message will show up press y to confirm or press n to cancel figure 9 69
- C select boot array you can select a disk array as boot device if you want to boot operating system from an array boot disk array cannot be selected if the operating system does not boot from the disk array highlight the select boot array item in main menu press enter and the channel column will be activated then highlight the target disk array and press enter press esc to go back to main menu if you want to cancel the boot array setting select the disk array that has an asterisk and press enter its boot setting will be canceled figure 10 69
- Deleting a disk array will destroy all the data on the disk array except for raid 1 array s when a raid 1 array is deleted the data on the two hard drives will be reserved and the two hard drives will become two normal drives 69
- English 69
- Figure 10 69
- Figure 9 69
- D serial number view highlight serial number view and press enter use the arrow keys to select a drive and the selected drive s serial number can be viewed in the last line the serial number is assigned by the disk drive manufacturer figure 11 70
- E view array status press f1 to show the array status on the lower screen if there are no disk arrays then nothing will be displayed on the screen figure 12 70
- English 70
- Figure 11 70
- Figure 12 70
- Ga 8vm800pmd 775 rh motherboard 70 70
- English 71
- 5 installing sata controller driver during os installation 72
- English 72
- Appendix 73 73
- English 73
- Figure 18 73
- Figure 19 73
- If a message appears saying one or some file s cannot be found please check the floppy disk or copy the correct sata driver again from the motherboard driver cd 73
- Step 3 if setup correctly recognizes the driver in the floppy disk a controller menu similar to figure 18 below will appear if you want to install windows xp use the arrow keys to select via vt8237 6421 6410 sata raid controller and press enter then it will begin to load the sata driver from the floppy disk 73
- Step 4 when the screen as shown below appears press enter to continue the sata driver installation from the floppy disk the driver installation will be finished in about one minute 73
- After the sata controller driver installation is completed you should see a screen as below it indicates that you have installed the sata controller driver successfully you can proceed with the windows 2000 xp installation 74
- English 74
- Figure 20 74
- Ga 8vm800pmd 775 rh motherboard 74 74
- Note each time you add a new hard drive to a raid array the raid driver will have to be installed under windows once for that hard drive after that the driver will not have to be installed 74
- 1 5 2 4 6 channel audio function introduction 75
- Channel audio setup 75
- English 75
- Channel analog audio output mode 76
- English 76
- Basic 6 channel analog audio output mode 77
- English 77
- Advanced 6 channel analog audio output mode using audio combo kit optional device 78
- English 78
- Basic advanced 6 channel analog audio output mode notes 79
- English 79
- English 80
- Spdif output device optional device 80
- 2 troubleshooting 81
- English 81
- English 82
- English 83
- English 84
- English 85
- English 86
- Appendix 87 87
- Contact us 87
- English 87
- English 88
- Ga 8vm800pmd 775 rh motherboard 88 88
- Gigabyte global service system 88
- To submit a technical or non technical sales marketing question please link to http ggts gigabyte com tw then select your language to enter the system 88
