- 8 -

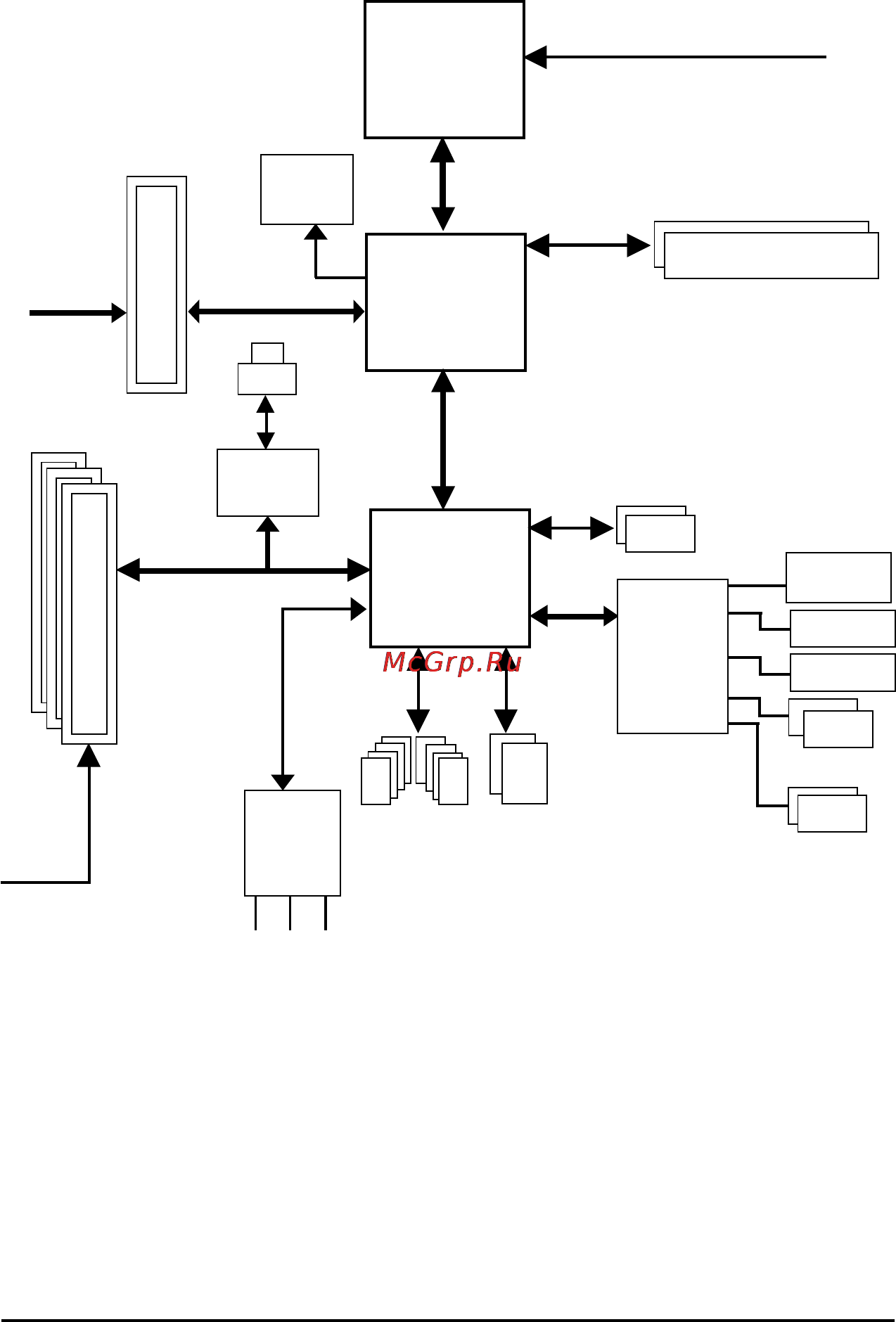

Block Diagram
VIA
P4M800 Pro
VIA
VT8237R+
CPUCLK+/- (133/200MHz)
System Bus
533/800MHz
LPC BUS
AGP 4X/8X
3 PCI
PCI CLK
(33MHz)
AC97 Link
8 USB
Ports
ATA33/66/
100/133
IDE Channels
RTL8100C
Floppy
LPT Port
PS/2 KB/Mouse
COMA/COMB
MIC
LINE-IN
LGA 775
Processor
6 Channel
CODEC
400/533MHz
DDR II
AGP CLK
(66MHz)
66MHz V_Link
VGA Port
BIOS
LINE-OUT
2 Serial ATA
RJ45
Winbond
W83627
