Appendix- 81 -
English
STEP 3:

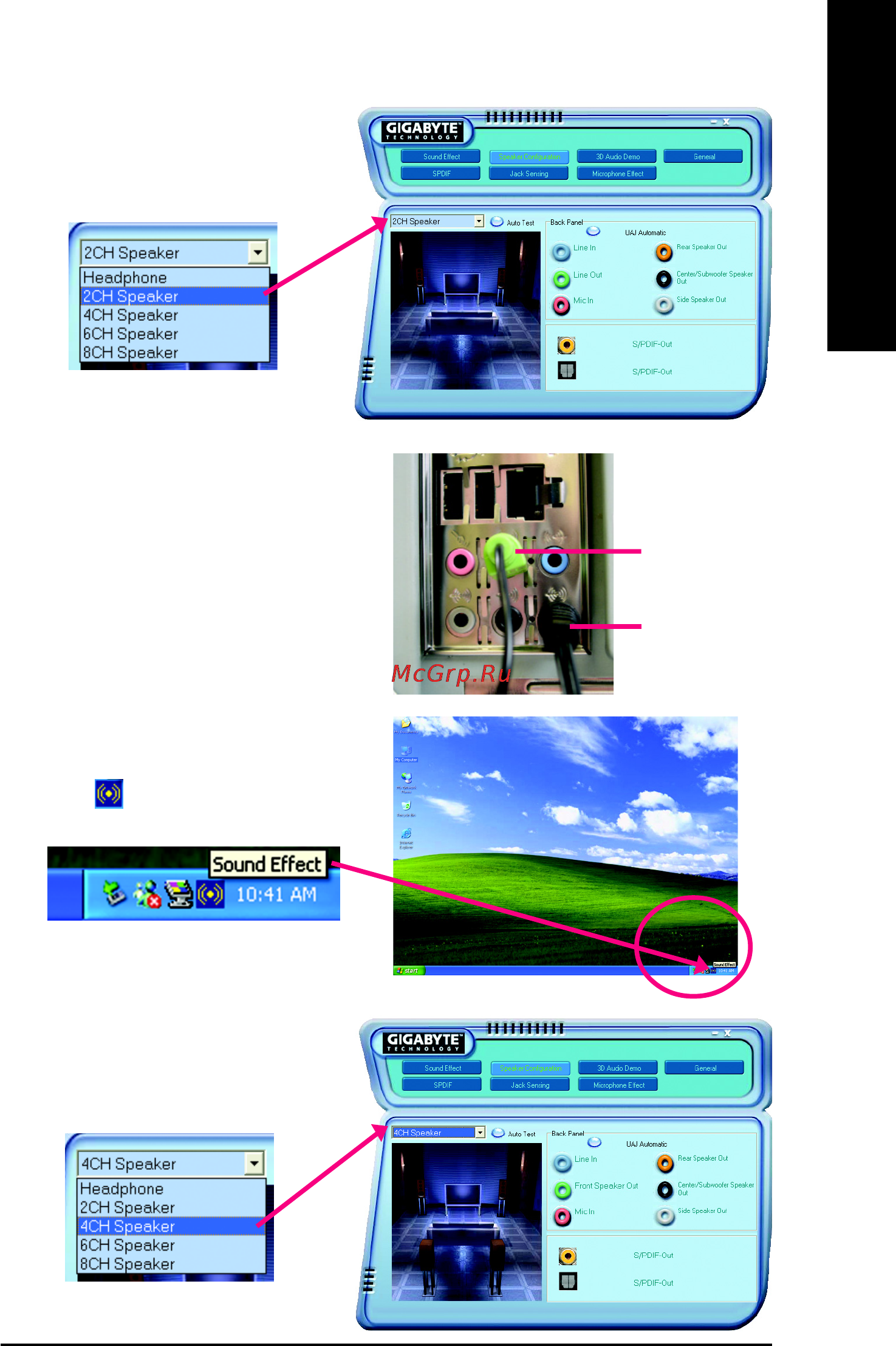

Click "Speaker Configuration" then click on the
left selection bar and select "2CH Speaker" to
complete 2 channel audio configuration.
4 Channel Audio Setup
STEP 1 :
Connect the front channels to "Front Speaker Out",
the rear channels to "Rear Speaker Out".
STEP 2 :
Following installation of the audio driver, you find a
Sound Effect icon on the lower right hand taskbar.
Click the icon to select the function.
STEP 3:
Click "Speaker Configuration" then click on the
left selection bar and select "4CH Speaker" to
complete 4 channel audio configuration.
Front Speaker Out
Rear Speaker Out
Содержание
- Ga 8n775 1
- Lga775 processor motherboard 1
- Pentiu 1
- Rev 1002 12me 8n775 1002r 1
- User s manual 1
- Copyright 3
- Notice 3
- Product manual classification 3
- Block diagram 7 4
- Chapter 1 hardware installation 9 4
- Chapter 2 bios setup 29 4
- Ga 8n775 motherboard layout 6 4
- Table of contents 4
- Chapter 3 drivers installation 49 5
- Chapter 4 appendix 53 5
- Ga 8n775 6
- Ga 8n775 motherboard layout 6
- Block diagram 7
- 1 considerations prior to installation 9
- Chapter 1 hardware installation 9
- English 9
- Installation notices 9
- Instances of non warranty 9
- Preparing your computer 9
- 2 feature summary 10
- English 10
- English 11
- 3 1 installation of the cpu 12
- 3 installation of the cpu and heatsink 12
- English 12
- 3 2 installation of the heatsink 13
- English 13
- 4 installation of memory 14
- English 14
- Channel a ddr ii 1 ddr ii 2 channel b ddr ii 3 ddr ii 4 if you want to operate the dual channel technology please note the following explanations due to the limitation of intel chipset specifications 1 dual channel mode will not be enabled if only one ddr ii memory module is installed 2 to enable dual channel mode with two or four memory modules it is recommended to use memory modules of identical brand size chips and speed you must install them into dimm sockets of the same color 15
- Dual channel memory configuration 15
- English 15
- Ga 8n775 includes 4 dimm sockets and each channel has two dimm sockets as following 15
- Hardware installation 15 15
- The following is a dual channel memory configuration table ds double side ss single side 15
- The ga 8n775 supports the dual channel technology after operating the dual channel technology the bandwidth of memory bus will add double 15
- 5 installation of expansion cards 16
- English 16
- 6 i o back panel introduction 17
- Center subwoofer speaker out 17
- Coaxial spdif_o 17
- Com a serial port 17
- English 17
- Lan port 17
- Line in 17
- Line out front speaker out 17
- Lpt parallel port 17
- Mic in 17
- Optical spdif_o 17
- Ps 2 keyboard and ps 2 mouse connector 17
- Rear speaker out 17
- Usb port 17
- 7 connectors introduction 18
- English 18
- Side speaker out 18
- 2 atx_12v atx power connector 19
- English 19
- Hardware installation 19 19
- With the use of the power connector the power supply can supply enough stable power to all the components on the motherboard before connecting the power connector please make sure that all components and devices are properly installed align the power connector with its proper location on the motherboard and connect tightly the atx_12v power connector mainly supplies power to the cpu if the atx_12v power connector is not connected the system will not start caution please use a power supply that is able to handle the system voltage requirements it is recommended that a power supply that can withstand high power consumption be used 300w or greater if a power supply is used that does not provide the required power the result can lead to an unstable system or a system that is unable to start if you use a 24 pin atx power supply please remove the small cover on the power connector on the motherboard before plugging in the power cord otherwise please do not remove it 19
- 4 cpu_fan sys_fan cooler fan power connector 20
- English 20
- Fdd floppy connector 20
- An ide device connects to the computer via an ide connector one ide connector can connect to one ide cable and the single ide cable can then connect to two ide devices hard drive or optical drive if you wish to connect two ide devices please set the jumper on one ide device as master and the other as slave for information on settings please refer to the instructions located on the ide device to ensure that an ide cd rom drive can work properly please attach it to the ide 1 ide 2 connector 21
- English 21
- Hardware installation 21 21
- Ide1 ide2 ide connector 21
- Sata 3gb s can provide up to 300mb s transfer rate please refer to the bios setting for the sata 3gb s and install the proper driver in order to work properly 21
- Sataii0_1 sataii2_3 sata 3gb s connectors controlled by mcp 04 21
- Battery 22
- English 22
- Ga 8n775 motherboard 22 22
- Pwr_led 22
- Pwr_led is connected with the system power indicator to indicate whether the system is on off it will blink when the system enters suspend mode 22
- English 23
- F_panel front panel jumper 23
- Hardware installation 23 23
- Please connect the power led pc speaker reset switch and power switch etc of your chassis front panel to the f_panel connector according to the pin assignment below 23
- Cd_in cd in 24
- Connect cd rom or dvd rom audio out to the connector 24
- English 24
- F_audio front audio panel connector 24
- Ga 8n775 motherboard 24 24
- If you want to use front audio connector you must remove 5 6 9 10 jumper in order to utilize the front audio header your chassis must have front audio connector also please make sure the pin assignments for the cable are the same as the pin assignments for the front audio header to find out if the chassis you are buying support front audio connector please contact your dealer please note you can have the alternative of using front audio connector or of using rear audio connector to play sound 24
- Be careful with the polarity of the front usb connector check the pin assignment carefully while you connect the front usb cable incorrect connection between the cable and connector will make the device unable to work or even damage it for optional front usb cable please contact your local dealer 25
- English 25
- F_ usb1 f_usb2 f_usb3 front usb connector 25
- Hardware installation 25 25
- Spdif_i spdif in connector 25
- Use spdif in feature only when your device has digital output function be careful with the polarity of the spdif_i connector check the pin assignment carefully while you connect the spdif cable incorrect connection between the cable and connector will make the device unable to work or even damage it for optional spdif cable please contact your local dealer 25
- Ci chassis intrusion case open 26
- Clr_cmos clear cmos 26
- English 26
- Ga 8n775 motherboard 26 26
- This 2 pin connector allows your system to detect if the chassis cover is removed you can check the case opened status in bios setup 26
- You may clear the cmos data to its default values by this header to clear cmos temporarily short 1 2 pin default doesn t include the jumper to prevent from improper use of this header 26
- English 27
- Hardware installation 27 27
- This connector allows you to connect external devices to use extra function check the pin assignments before you connect the external device cable please contact your nearest dealer for the optional gigabyte external device 27
- English 28
- Chapter 2 bios setup 29
- Control keys 29
- English 29
- Main menu 29
- Status page setup menu option page setup menu 29
- English 30
- For boot menu 30
- Ga 8n775 motherboard 30 30
- If you can t find the setting you want please press ctrl f1 to search the advanced option hidden please load optimized defaults in the bios when somehow the system works not stable as usual this action makes the system reset to the default for stability the bios setup menus described in this chapter are for reference only and may differ from the exact settings for your motherboard 30
- Select boot sequence for onboard or add on cards device 30
- The main menu for example bios ver e5 30
- To accept or enter the sub menu 30
- To exit this menu 30
- English 31
- 1 standard cmos features 32
- Access mode use this to set the access mode for the hard drive the four options are chs lba large auto default auto 32
- Access mode use this to set the access mode for the hard drive the two options are large auto default auto 32
- Capacity capacity of currectly installed hard drive 32
- Day the day from 1 to 31 or the maximum allowed in the month 32
- English 32
- Ga 8n775 motherboard 32 32
- Ide channel 0 master slave ide channel 1 master slave 32
- Ide channel 2 3 4 5 master 32
- Ide hdd auto detection press enter to select this option for automatic device detection extended ide drive you can use one of the two methods auto allows bios to automatically detect ide devices during post default none select this if no ide devices are used and the system will skip the automatic detection step and allow for faster system start up 32
- Ide hdd auto detection press enter to select this option for automatic device detection ide channel 0 master slave ide channel 1 master slave ide devices setup you can use one of three methods auto allows bios to automatically detect ide devices during post default value none select this if no ide devices are used and the system will skip the automatic detection step and allow for faster system start up manual user can manually input the correct settings 32
- Month the month jan through dec 32
- The time is calculated base on the 24 hour military time clock for example 1 p m is 13 00 00 32
- Week the week from sun to sat determined by the bios and is displayed only 32
- Year the year from 1999 through 2098 32
- Base memory 33
- Drive a drive b 33
- English 33
- Extended memory 33
- Floppy 3 mode support for japan area 33
- Halt on 33
- Memory 33
- Total memory 33
- 2 advanced bios features 34
- Boot up floppy seek 34
- Cdrom select your boot device priority by cdrom 34
- Disabled bios will not search for the type of floppy disk drive by track number note that there will not be any warning message if the drive installed is 360k default value 34
- Disabled disable this function 34
- During post bios will determine the floppy disk drive installed is 40 or 80 tracks 360k type is 40 tracks 720k 1 m and 1 4m are all 80 tracks 34
- Enabled bios searches for floppy disk drive to determine it is 40 or 80 tracks note that bios can not tell from 720k 1 m or 1 4m drive type as they are all 80 tracks 34
- English 34
- First second third boot device 34
- Floppy select your boot device priority by floppy 34
- Ga 8n775 motherboard 34 34
- Hard disk boot priority 34
- Hard disk select your boot device priority by hard disk 34
- Lan select your boot device priority by lan 34
- Ls120 select your boot device priority by ls120 34
- Note this item will show up when you install a processor which supports this function 34
- Pentiu 34
- Processor with ht technology 34
- System will detect automatically and show up when you install the inte 34
- To exit this menu 34
- Usb cdrom select your boot device priority by usb cdrom usb hdd select your boot device priority by usb hdd 34
- Usb fdd select your boot device priority by usb fdd 34
- Usb zip select your boot device priority by usb zip 34
- Zip select your boot device priority by zip 34
- Cpu eist functio 35
- Cpu enhanced halt c1e 35
- Cpu hyper threading 35
- Cpu thermal monitor 2 tm2 35
- English 35
- Full screen logo show 35
- Init display first 35
- Limit cpuid max to 3 35
- No execute memory protec 35
- Password check 35
- 3 integrated peripherals 36
- Disabled disable ide sataii raid function default value 36
- Disabled disable this function default value 36
- Enabled enable 1st master channel ide raid function 36
- Enabled enable 1st slave channel ide raid function 36
- Enabled enable 2nd master channel ide raid function 36
- Enabled enable ide sataii raid function 36
- English 36
- Ga 8n775 motherboard 36 36
- Ide primary master raid 36
- Ide primary slave raid 36
- Ide sataii raid config 36
- Ide sataii raid function 36
- Ide secndry master raid 36
- English 37
- Ide secndry slave raid 37
- Ide1 conductor cable 37
- Ide2 conductor cable 37
- On chip ide channel0 37
- On chip ide channel1 37
- Sataii 1 primary raid 37
- Sataii 1 secondary raid 37
- Sataii 2 primary raid 37
- Sataii 2 secondary raid 37
- Serial ataii 1 37
- Serial ataii 2 37
- Ac97 audio 38
- English 38
- I lock 38
- Legacy usb storage detect 38
- On chip usb 38
- Onboard lan boot rom 38
- Onboard lan function 38
- Onboard parallel port 38
- Onboard serial port 1 38
- Parallel port mode 38
- Usb keyboard support 38
- Usb mouse support 38
- 4 power management setup 39
- Acpi suspend type 39
- An incoming call via modem can awake the system from any suspend state 39
- Bios setup 39 39
- Day of month alarm everyday 1 31 39
- Delay 4 sec press power button 4 sec to power off enter suspend if button is pressed less than 4 sec 39
- Disabled disable this function 39
- Disabled disable this function default value 39
- Enabled enable alarm function to power on system if power on by alarm is enabled 39
- Enabled enable modem ring on function default value 39
- Enabled enable pme as wake up event default value 39
- Enabled enable usb device wake up system from suspend mode default value 39
- English 39
- Instant off press power button then power off instantly default value 39
- Modem ring on 39
- Pme event wake up 39
- Power on by alarm 39
- S1 pos set acpi suspend type to s1 pos power on suspend default value 39
- S3 str set acpi suspend type to s3 str suspend to ram 39
- Soft off by power button 39
- This feature requires an atx power supply that provides at least 1a on the 5vsb lead 39
- Time hh mm ss alarm 0 23 0 59 0 59 39
- Usb resume from suspend 39
- You can set power on by alarm item to enabled and key in date time to power on system 39
- Ac back function 40
- English 40
- Kb power on password 40
- Power on by keyboard 40
- Power on by mouse 40
- 4 5 7 9 10 11 12 14 15 set irq 3 4 5 7 9 10 11 12 14 15 to pci 1 41
- 4 5 7 9 10 11 12 14 15 set irq 3 4 5 7 9 10 11 12 14 15 to pci 2 41
- 5 pnp pci configurations 41
- Auto auto assign irq to pci 1 default value 41
- Auto auto assign irq to pci 2 default value 41
- Bios setup 41 41
- English 41
- Pci 1 irq assignment 41
- Pci 2 irq assignment 41
- 6 pc health status 42
- Case opened 42
- Cpu system fan fail warning 42
- Cpu warning temperature 42
- Current cpu system fan speed rpm 42
- Current cpu temperature 42
- Current voltage v vcore ddr18v 3 v 12v vbat 42
- Detect cpu system fan speed status automatically 42
- Detect cpu temperature automatically 42
- Detect system s voltage status automatically 42
- Disabled disable fan warning function default value 42
- Disabled disable this function default value 42
- Disabled don t reset case open status default value 42
- Enabled clear case open status at next boot 42
- Enabled enable fan warning function 42
- English 42
- F monitor cpu temperature at 6 42
- F monitor cpu temperature at 7 42
- F monitor cpu temperature at 8 42
- F monitor cpu temperature at 9 42
- Ga 8n775 motherboard 42 42
- If the case is closed case opened will show no if the case have been opened case opened will show yes if you want to reset case opened value set reset case open status to enabled and save cmos your computer will restart 42
- Reset case open status 42
- Cpu smart fan control 43
- Cpu smart fan mode 43
- English 43
- 7 mb intelligent tweaker m i t 44
- C i a cpu intelligent accelerator 2 is designed to detect cpu loading during software program executing and automatically adjust cpu computing power to maximize system performance 44
- Cpu clock ratio 44
- Cruiseset c i a to cruise automatically increase cpu frequency 5 7 by cpu loading sports set c i a to sports automatically increase cpu frequency 7 9 by cpu loading 44
- Disabled disable fsb turbo mode default value 44
- Disabled disable this function default value 44
- Enabled enable fsb turbo mode 44
- English 44
- Fsb turbo mode 44
- Full thrust set c i a to full thrust automatically increase cpu frequency 17 19 by cpu loading warning stability is highly dependent on system components 44
- Ga 8n775 motherboard 44 44
- High set clock ratio for frequency locked cpu to high default value 44
- Incorrect using these features may cause your system broken for power end user use only 44
- Low set clock ratio for frequency locked cpu to low 44
- Note this item will show up when you install a processor which supports this function 44
- Racing set c i a to racing automatically increase cpu frequency 9 11 by cpu loading 44
- This setup option will automatically assign by cpu detection the option will display locked and read only if the cpu ratio is not changeable 44
- Turbo set c i a to turbo automatically increase cpu frequency 15 17 by cpu loading 44
- Cpu voltage control 45
- Current fsb speed qdr 45
- Current mem speed ddr 45
- Dimm overvoltage control 45
- English 45
- Fsb overvoltage control 45
- Ldt frequency 45
- New fsb speed qdr 45
- New mem speed ddr 45
- Normal cpu vcore 45
- Pci e overvoltage control 45
- Pcie frequency mhz 45
- Robust graphics booster 45
- Sli broadcast aperture 45
- System clock mode 45
- Target fsb speed qdr 45
- Target mem speed ddr 45
- 8 load fail safe defaults 46
- 9 load optimized defaults 46
- English 46
- Fail safe defaults contain the most appropriate values of the system parameters that allow minimum system performance 46
- Ga 8n775 motherboard 46 46
- Selecting this field loads the factory defaults for bios and chipset features which the system automatically detects 46
- 10 set supervisor user password 47
- Bios setup 47 47
- English 47
- When you are prompted to enter password a message password disabled will appear to confirm the password being disabled once the password is disabled the system will boot and you can enter setup freely the bios setup program allows you to specify two separate passwords supervisor password and a user password when disabled anyone may access all bios setup program function when enabled the supervisor password is required for entering the bios setup program and having full configuration fields the user password is required to access only basic items if you select system at password check in advance bios features menu you will be prompted for the password every time the system is rebooted or any time you try to enter setup menu if you select setup at password check in advance bios features menu you will be prompted only when you try to enter setup 47
- 11 save exit setup 48
- 12 exit without saving 48
- English 48
- Ga 8n775 motherboard 48 48
- Type y will quit the setup utility and save the user setup value to rtc cmos type n will return to setup utility 48
- Type y will quit the setup utility without saving to rtc cmos type n will return to setup utility 48
- 1 install chipset drivers 49
- Chapter 3drivers installation 49
- English 49
- 2 software application 50
- 3 software information 50
- English 50
- 4 hardware information 51
- 5 contact us 51
- English 51
- English 52
- 1 unique software utilities 53
- C i a cpu intelligent accelerator 2 53
- C o m corporate online management 53
- Chapter 4 appendix 53
- Download center 53
- English 53
- M i b memory intelligent booster 2 53
- M i t motherboard intelligent tweaker 53
- S o s system overclock saver 53
- U plus d p s universal plus dual power system 53
- 1 1 easytune 5 introduction 54
- English 54
- User interface overview 54
- 1 2 xpress recovery2 introduction 55
- Boot from cd dvd 55
- English 55
- How to use the xpress recovery2 55
- System requirements 55
- Xpress recovery2 55
- Backup 56
- English 56
- Limitations 56
- Precautions 56
- Reboot 56
- Remove 56
- Restore 56
- The main screen of xpress recovery2 56
- 1 3 flash bios method introduction 57
- Before you begin 57
- English 57
- Method 1 q flas 57
- Part one 57
- Updating bios with q flas 57
- Utility 57
- Utility on dual bios motherboards 57
- Action bar 58
- Contains the names of eight tasks and two item showing information about the bios rom type blocking a task and pressing enter key on your keyboard to enable execution of the task 58
- Contains the names of four actions needed to operate the q flash dual bios utility pressing the buttons mentioned on your keyboards to perform these actions 58
- Contains the names of four tasks blocking a task and pressing enter key on your keyboard to enable execu tion of the task 58
- Dual bios 58
- Dual bios utility bar 58
- Dual bios utility screen 58
- English 58
- Entering the q flas 58
- Exploring the q flas 58
- Ga 8n775 motherboard 58 58
- Q flas 58
- Step 2 press f8 button on your keyboard and then y button to enter the dual bios q flash utility 58
- Step1 to use q flash utility you must press del in the boot screen to enter bios menu 58
- Task menu for 58
- Task menu for dual bios utility 58
- Task menu for q flash utility 58
- The q flash dual bios utility screen consists of the following key components 58
- Utility 58
- Utility title 58
- After bios file is read you ll see a confirmation dialog box asking you are you sure to update bios 59
- After pressing enter you ll then see the progress of reading the bios file from the floppy disk 59
- Appendix 59 59
- Bios file in the floppy 59
- Do not turn off power or 59
- English 59
- If you want to save the current bios for backup purpose you can begin step 1 with save main bios to floppy item 59
- In this example we only download one bios file to the floppy disk so only one bios file 59
- Knxpu fba is listed 59
- Move to the bios file you want to flash and press enter 59
- Please confirm again you have the correct bios file for your motherboard 59
- Press arrow buttons on your keyboard to move the light bar to load main bios from floppy item in the q flash menu and press enter button later you will see a box pop up showing the bios files you previously downloaded to the floppy disk 59
- Reset your system at this 59
- This section tells you how to update bios using the q flash utility as described in the before you begin section above you must prepare a floppy disk having the bios file for your motherboard and insert it to your computer if you have already put the floppy disk into your system and have entered the q flash utility please follow the steps below to flash bios 59
- Using the q flas 59
- Utility 59
- After system reboots you may find the bios version on your boot screen becomes the one you flashed 60
- Becomes fba after 60
- Bios too 60
- English 60
- Ga 8n775 motherboard 60 60
- Please do not take out the floppy disk when it begins flashing bios 60
- Press any keys to return to the q flash menu when the bios updating procedure is completed 60
- Press esc and then y button to exit the q flash utility the computer will restart automatically after you exit q flash 60
- Press y button on your keyboard after you are sure to update bios then it will begin to update bios the progress of updating bios will be displayed 60
- The bios file 60
- To flash the backup 60
- Updating 60
- You can repeat step 1 to 60
- Appendix 61 61
- English 61
- Part two updating bios with q flas 61
- Press del to enter bios menu after system reboots when you are in bios menu move to load fail safe defaults item and press enter to load bios fail safe defaults normally the system redetects all devices after bios has been upgraded therefore we highly recommend reloading the bios defaults after bios has been upgraded 61
- Press y on your keyboard to load defaults 61
- Press y on your keyboard to save and exit 61
- Select save exit setup item to save the settings to cmos and exit the bios menu system will reboot after you exit the bios menu the procedure is completed 61
- This part guides users of single bios motherboards how to update bios using the q flas 61
- Utility 61
- Utility on single bios motherboards 61
- Action bar 62
- After bios file is read you ll see a confirmation dialog box asking you are you sure to update bios 62
- Bios file in the floppy disk 62
- Contains the names of four actions needed to operate the q flash utility pressing the buttons mentioned on your keyboards to perform these actions 62
- Contains the names of three tasks blocking a task and pressing enter key on your keyboard to enable execution of the task 62
- Do not turn off power or reset your system at this 62
- English 62
- Exploring the q flas 62
- Ga 8n775 motherboard 62 62
- If you want to save the current bios for backup purpose you can begin step 1 with save bios to floppy item 62
- Move to the bios file you want to flash and press enter in this example we only download one bios file to the floppy disk so only one bios file 8ge800 f4 is listed 62
- Please confirm again you have the correct bios file for your motherboard 62
- Please do not take out the floppy disk when it begins flashing bios 62
- Press arrow buttons on your keyboard to move the light bar to update bios from floppy item in the q flash menu and press enter button later you will see a box pop up showing the bios files you previously downloaded to the floppy disk 62
- Q flas 62
- Task menu for 62
- Task menu for q flash utility 62
- The q flashbios utility screen consists of the following key components 62
- This section tells you how to update bios using the q flash utility as described in the before you begin section above you must prepare a floppy disk having the bios file for your motherboard and insert it to your computer if you have already put the floppy disk into your system and have entered the q flash utility please follow the steps below to flash bios 62
- Using the q flas 62
- Utility 62
- Utility bar 62
- Utility screen 62
- After system reboots you may find the bios version on your boot screen becomes the one you flashed 63
- Appendix 63 63
- Congratulation you have updated bios successfully 63
- Do not turn off power or 63
- English 63
- Press any keys to return to the q flash menu when the bios updating procedure is completed 63
- Press del to enter bios menu after system reboots and load bios fail safe defaults see how to load bios fail safe defaults please kindly refer to step 6 to 7 in part one 63
- Press esc and then y button to exit the q flash utility the computer will restart automatically after you exit q flash 63
- Press y button on your keyboard after you are sure to update bios then it will begin to update bios the progress of updating bios will be shown at the same time 63
- Reset your system at this stage 63
- The bios file becomes f4 after updating 63
- English 64
- Method 2 bio 64
- Methods and steps 64
- Utility 64
- English 65
- 1 4 configuring sata hard drive s 66
- 1 install sata hard drive s in your system 66
- 2 configuring sata controller mode and boot sequence in bios setup 66
- 3 configure raid set in raid bios 66
- 4 make a floppy disk containing the sata controller driver 5 install the sata controller driver during os installation 66
- Before you begin 66
- English 66
- To configure sata hard drive s follow the steps below 1 install sata hard drive s in your system 2 configure sata controller mode and boot sequence in bios setup 66
- Appendix 67 67
- English 67
- Figure 1 67
- Figure 2 67
- In the ide sataii raid config submenu enable ide sataii raid function then enable the sata ports with hard disks that you want to use for raid in the example in figure 2 enable sataii 1 primary secondary raid or sataii 2 primary secondary raid for example if you wish to create raid with hard disks on the sataii0 and sataii1 connectors set sataii 1 primary secondary raid to enabled 67
- The bios setup menus described in this section may not show the exact settings for your motherboard the actual bios setup menu options you will see shall depend on the motherboard you have and the bios version 67
- After configuring the sata controller mode in system bios if you wish to create raid save the settings and exit then go to raid bios refer to 3 configure raid set in raid bios section to configure the raid array after finished re enter the system bios setup to set hard disk boot priority before os installation select hard disk boot priority under the advanced bios features menu in the hard disk boot priority submenu select the raid array onto which you wish to install microsoft windows 2000 xp figure 4 68
- English 68
- Figure 3 68
- Figure 4 68
- Ga 8n775 motherboard 68 68
- Step 2 if you do not create raid select hard disk boot priority under the advanced bios features menu in the hard disk boot priority submenu select the model of the sata hard drive onto which you wish to install microsoft windows 2000 xp you should see a screen similar to figure 3 below 68
- Appendix 69 69
- English 69
- Figure 5 69
- Step 3 to boot from windows installation cd rom set first boot device under the advanced bios features menu to cdrom figure 5 69
- Step 4 save and exit bios setup 69
- 3 configuring raid set in raid bios 70
- English 70
- Enter the raid bios setup utility to configure a raid array skip this step and proceed to section 4 if you do not want to create raid 70
- Figure 6 70
- Figure 7 70
- Ga 8n775 motherboard 70 70
- Step 1 after the post memory test begins and before the operating system boot begins look for a message which says press f10 to enter raid setup utility figure 6 hit the f10 key to enter the raid bios setup utility 70
- Step 2 the define a new array screen is the first option screen when you enter the nvidia raid setup utility figure 7 you can press the tab key to highlight through options 70
- Step 3 in the raid mode field use the up or down arrow key to select a raid mode the supported raid modes include mirroring default striping stripe mirroring spanning and raid 5 the following is an example of raid 0 array creation 70
- Step 4 if raid 0 is selected select striping in the raid mode field you can manually set the striping block size in the striping block field use the up or down arrow key to set the striping block size the kb is the standard unit of striping block size we recommend you leaving it to the default setting optimal 64k the size range is from 4k to 128k 70
- Appendix 71 71
- English 71
- Figure 8 71
- Figure 9 71
- Step 5 next select the hard drives which you wish to be included in the disk array the free disks section displays the information about the currently installed sata hard drives press the tab key to move to the free disks section select the target hard drives using the up or down arrow key and use the right arrow key to add the hard drives to the array disks section figure 8 71
- Step 6 press f7 after selecting the target hard disks a message which says clear disk data will appear figure 9 if you are sure to clear the data in the selected hard drives press y if the hard drives contain previously created raid array you need to press y to clear the data from the hard drives 71
- After that the array list screen displaying the raid array you created will appear figure 10 if you want to set the disk array as boot device use the up or down arrow key to select the array and press b the boot section will show yes 72
- English 72
- Figure 10 72
- Figure 11 72
- Ga 8n775 motherboard 72 72
- Now you can proceed to install the sata controller driver and operating system 72
- To delete the array press d in the array detail screen when the delete this array message appears press y to confirm or n to cancel press enter to return to the array list screen 72
- To exit the nvidia raid utility press esc in the main menu or ctrl x in the array list screen 72
- To read more information about the raid array press enter to enter the array detail screen figure 11 where you should see detailed information about raid mode disk block size disk model name and disk capacity etc 72
- 4 making a sata driver disk 73
- English 73
- 5 installing sata controller driver during os installation 74
- English 74
- English 75
- After the sata controller driver installation is completed you should see a screen similar to that below you can proceed with the windows 2000 xp installation now 76
- English 76
- Figure 19 76
- Figure 20 76
- Ga 8n775 motherboard 76 76
- Step 4 when the next screen figure 19 appears press enter to continue the sata driver installation from the floppy disk 76
- 6 configuring a bootable raid array with microsoft windows 2000 77
- Appendix 77 77
- English 77
- Figure 21 77
- Figure22 77
- Problem users cannot install windows 2000 with service pack 2 or previous versions to a bootable raid volume there are two solutions to resolve this issue solutions 1 use the nvraid tool nforce driver version 5 xx to convert the boot volume to a raid array here are the detailed step by step instructions 77
- Step 1 install windows 2000 onto a selected hard drive download and install windows 2000 service pack 4 from microsoft s website step 2 after system restarts press del to enter system bios setup during post power on self test under the integrated peripherals menu figure 21 assure the sata port connecting the sata hard disk the one containing the windows 2000 is enabled figure 21 22 save settings and exit the bios setup 77
- English 78
- Figure 23 78
- Figure 24 78
- Ga 8n775 motherboard 78 78
- Step 3 after system restarts press f10 to enter the nvidia raid setup utility select striping in the raid mode filed figure 23 move to the free disks section with the tab key select the desired disk and use the right arrow key to add it to array disks menu 78
- Step 4 after all the settings press f7 to complete the configuration when prompted to clear disk data figure 24 press n then press ctrl x to exit the nvidia raid bios restart the computer to boot into windows 2000 78
- English 79
- 1 5 2 4 6 8 channel audio function introduction 80
- English 80
- Introduction of audio connectors 80
- Stereo speakers connection and settings 80
- Channel audio setup 81
- English 81
- Channel audio setup 82
- English 82
- Channel audio setup 83
- English 83
- 2 troubleshooting 84
- English 84
- English 85
- English 86
- Appendix 87 87
- Contact us 87
- English 87
- English 88
- Ga 8n775 motherboard 88 88
