Instruction Manual PMC-24V300W1BA

1. Safety instructions

 To ensure suffici ent fan cooling, always maintain a safety

distance of >20mm between fan and socket side surfaces while the

device is in operation.

 The device is not recommended to be placed on low thermal

conductive surface, for example, plastics.

 Note that the enclosure of the device can become ver y hot

depending on the ambient temperature and load of the power supply.

Do not touch the device while it is in operation or immediately after

power is turned OFF. Risk of burning!

 Do not touch the terminals while power is being supplied. Risk of

electric shock.

 Prevent any foreign metal, particles or conductors to enter the device

thro u gh t h e ope nin gs d u ri ng insta ll ati on. It c an cau se: -

- El e c tr i c s h o c k ; S a f e t y H a z a r d; F i re ; P r o d uc t f a i l ur e

 Warning: When connecting the device, secure Earth connection

before connecting L and N. When disconnecting the device, remove

L and N connections before removing the Earth connection.

2. Device descriptions

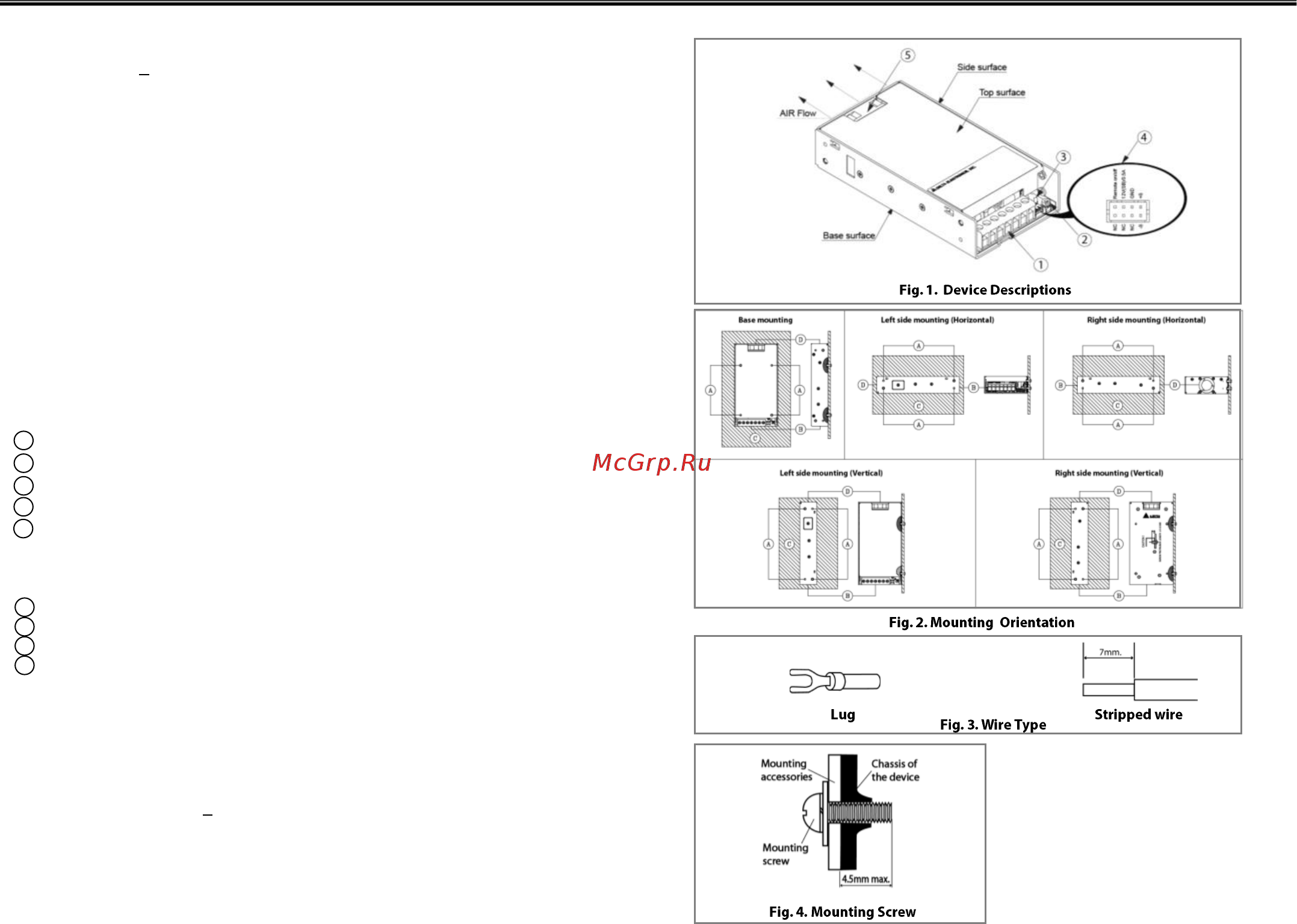

Refer to Fig.1.:

1 Input & Output terminal block connector

2 DC voltage adjustment potentiometer

3 DC OK control LED (green)

4 Remote Sense Function & 12V STANDBY / 0.5A

5 DC - FAN

3. Installation of the Device

Refer to Fig. 2.:

A Mounting holes

B Input / Output connector

C Mounting surface (customer)

D DC FAN

 Use flexible cable (solid), AWG no. 20-16. The torque at the

Connector shall not exceed 13Kgf.cm The insulation stripping length

should not exceed 0.275″ or 7mm Refer to Fig. 3.

4. Installation of Mounting Accessories

 Only use M4 screw < 4.5mm through the base mounting holes. This is to

keep a safety distance between the screw and internal components.

 Refer to Fig. 4.:

Recommended mounting tightening torque : 4~8Kgf.cm
