BIOS Setup- 45 -
English
2-9 Load Fail-Safe Defaults
Fail-Safe defaults contain the most appropriate values of the system parameters that allow minimum system
performance.
2-8 Select Language
Multi-language supports 7 languages. There are English, French, German, Spanish, Traditional Chinese,
Simplified Chinese and Japanese.

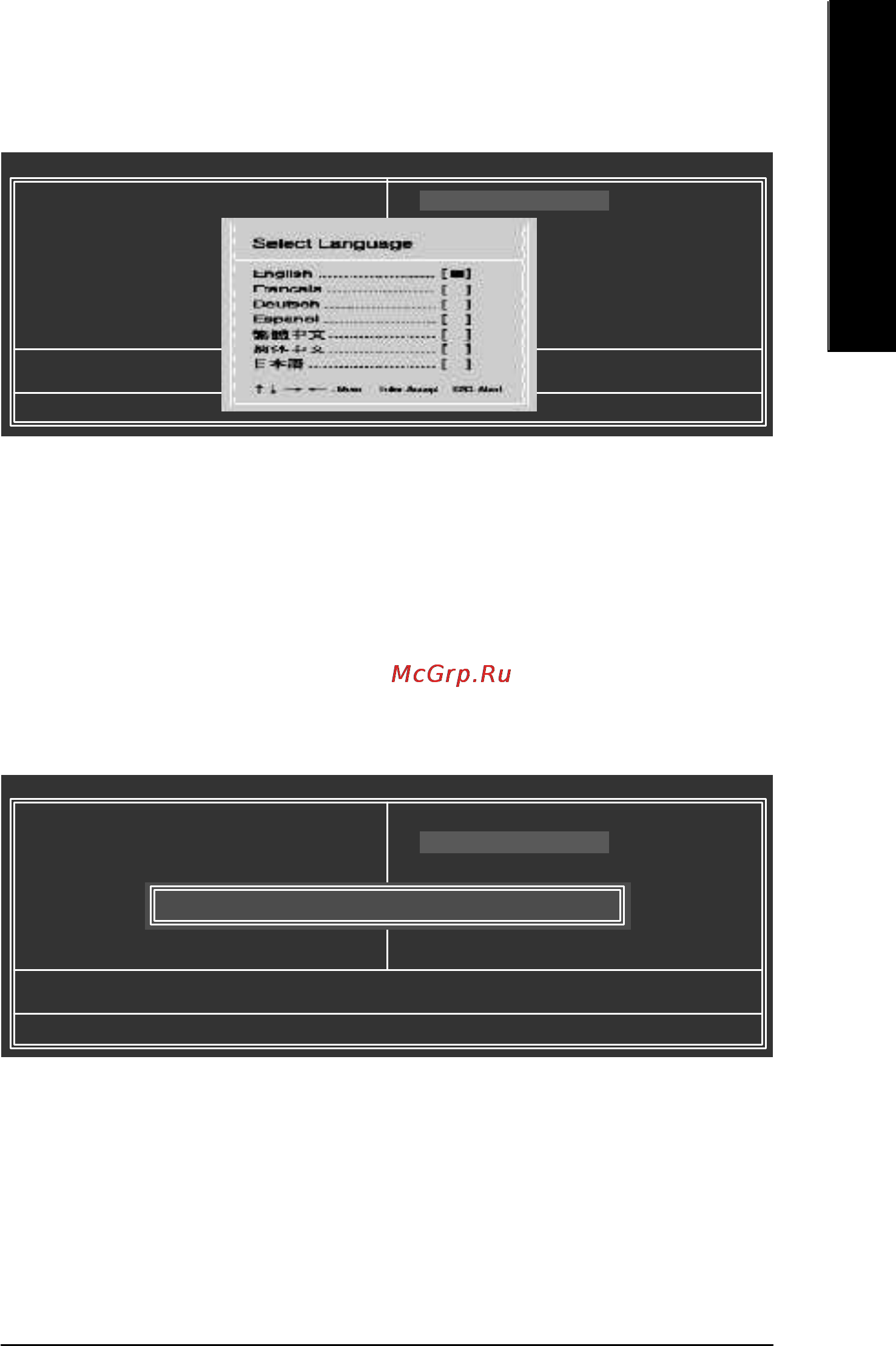

CMOS Setup Utility-Copyright (C) 1984-2004 Award Software
