Delta Electronics AFE075A43A [7/131] Frame d d1 afe370a23a afe370a43a afe450a43a afe750a43a

Chapter 1 Introduction AFE2000 Series

1-5

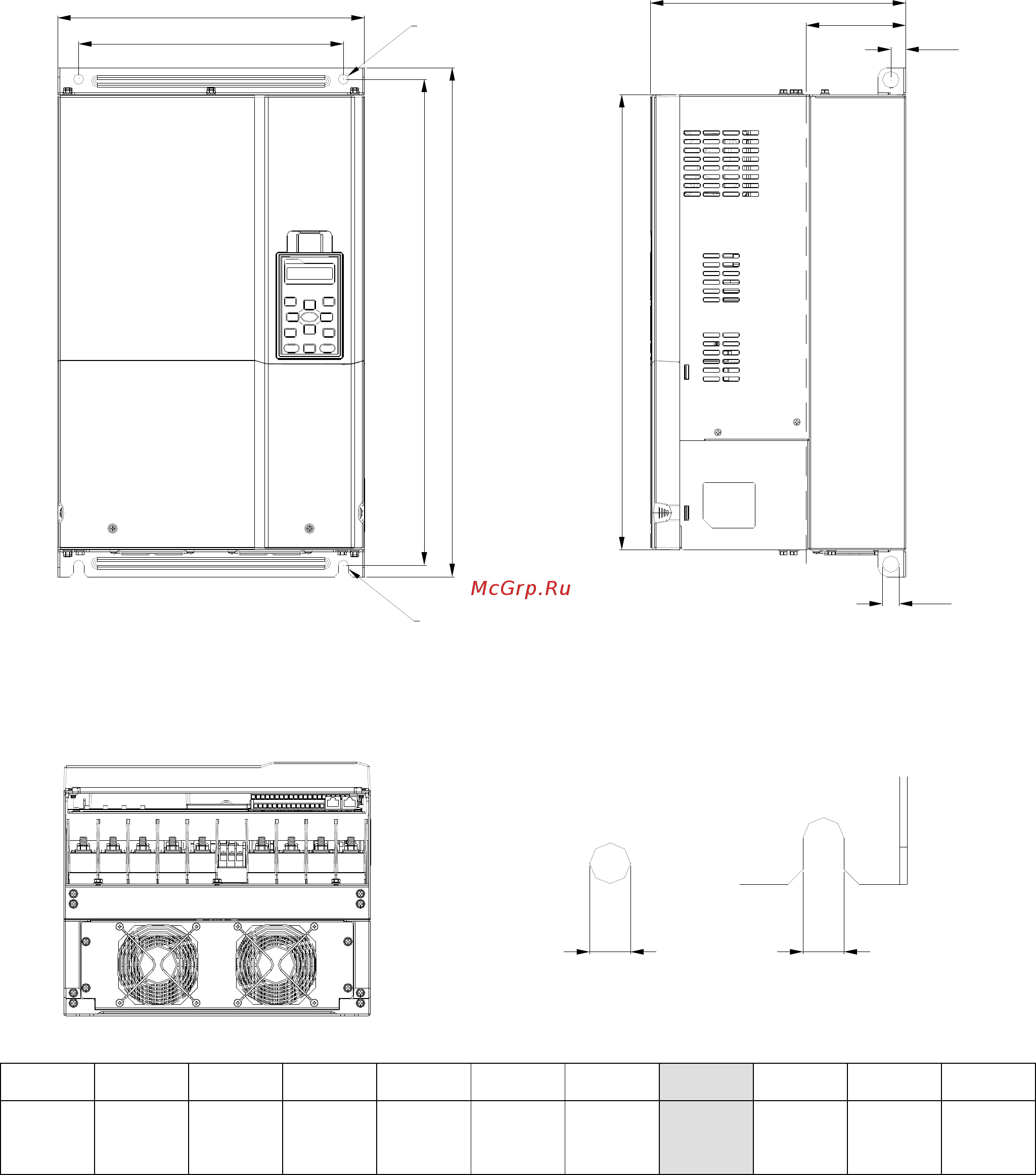

Frame D

D1: AFE370A23A; AFE370A43A; AFE450A43A; AFE750A43A;

S1S1

DETAIL A

(MOUNTING HOLE)

DETAIL B

(MOUNTING HOLE)

SEE DETAIL A

SEE DETAIL B

Unit:mm[inch]

Frame

W H D W1 H1 H2

D1* D2 S1 S2

330.0

[12.99]

550.0

[21.65]

275.0

[10.83]

285.0

[11.22]

525.0

[20.67]

492.0

[19.37]

107.2

[4.22]

16.0

[0.63]

11.0

[0.43]

18.0

[0.71]

D1*: Flange mounting
