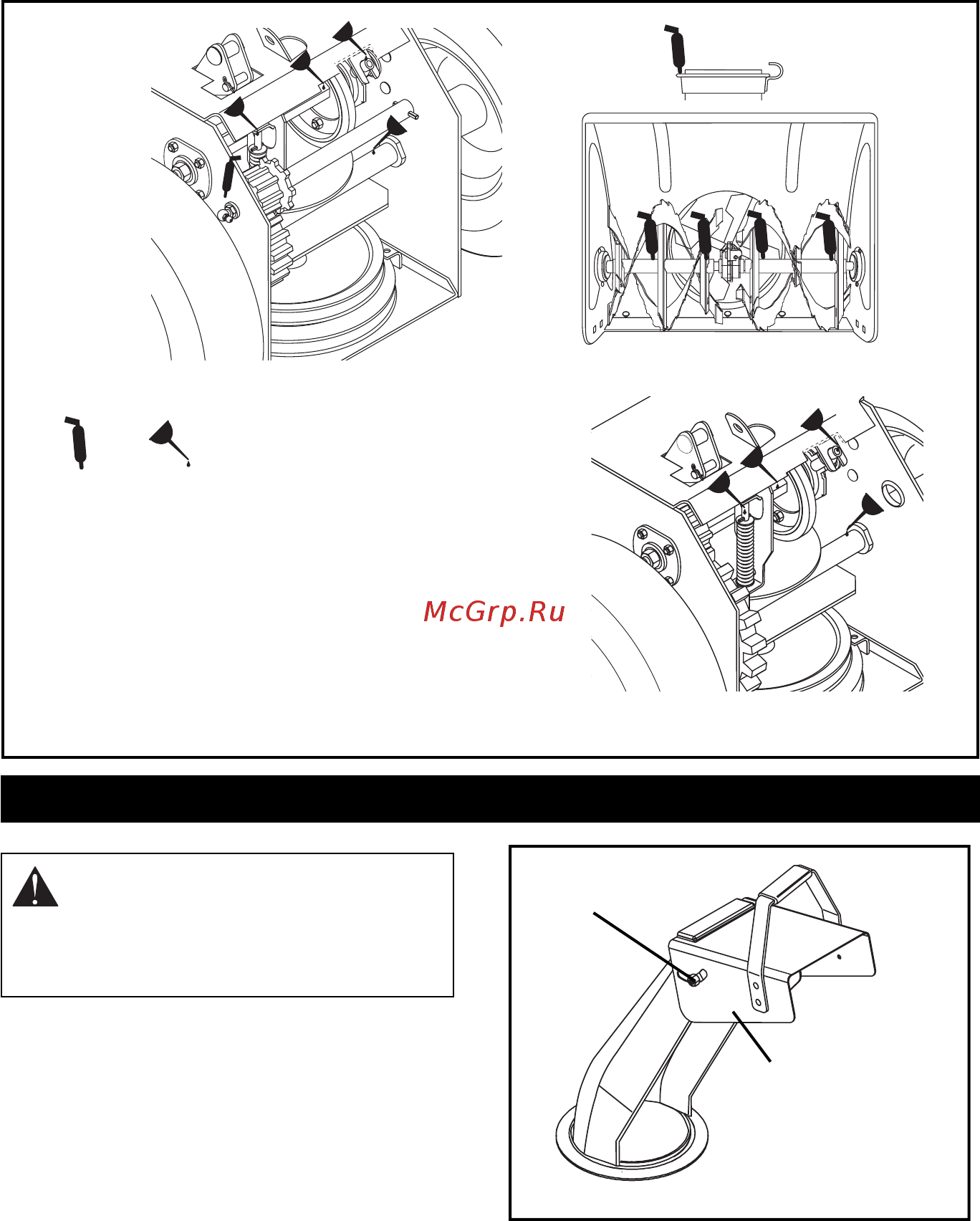

GB - 20
DISCHARGE CHUTE DEFLECTOR
Deflector must stay in selected position while
throwing snow.
To adjust, loosen then retighten hardware to
desired deflector drag force (Figure 9).
DISCHARGE CHUTE
If chute does not stay in position while
operating, tighten nut on carriage bolt at pivot
point to increase tension on spring (Figure 10).
Smooth and easy rotation of properly
lubricated chute with crank is obtained by
adjusting pinion and chute gear teeth so they
mesh together.
724
824
OS1373
OS1731
Figure 8
Grease
Oil
SERVICE AND ADJUSTMENTS
WARNING: AVOID INJURY. Read
and understand Maintenance and
Service Safety Rules in Safety
section before attempting service or
adjustments.
Figure 9
Adjusting
Hardware
OS0113
Discharge Chute
Deflector
