GA-8I865GME-775-RH Motherboard - 58 -
English

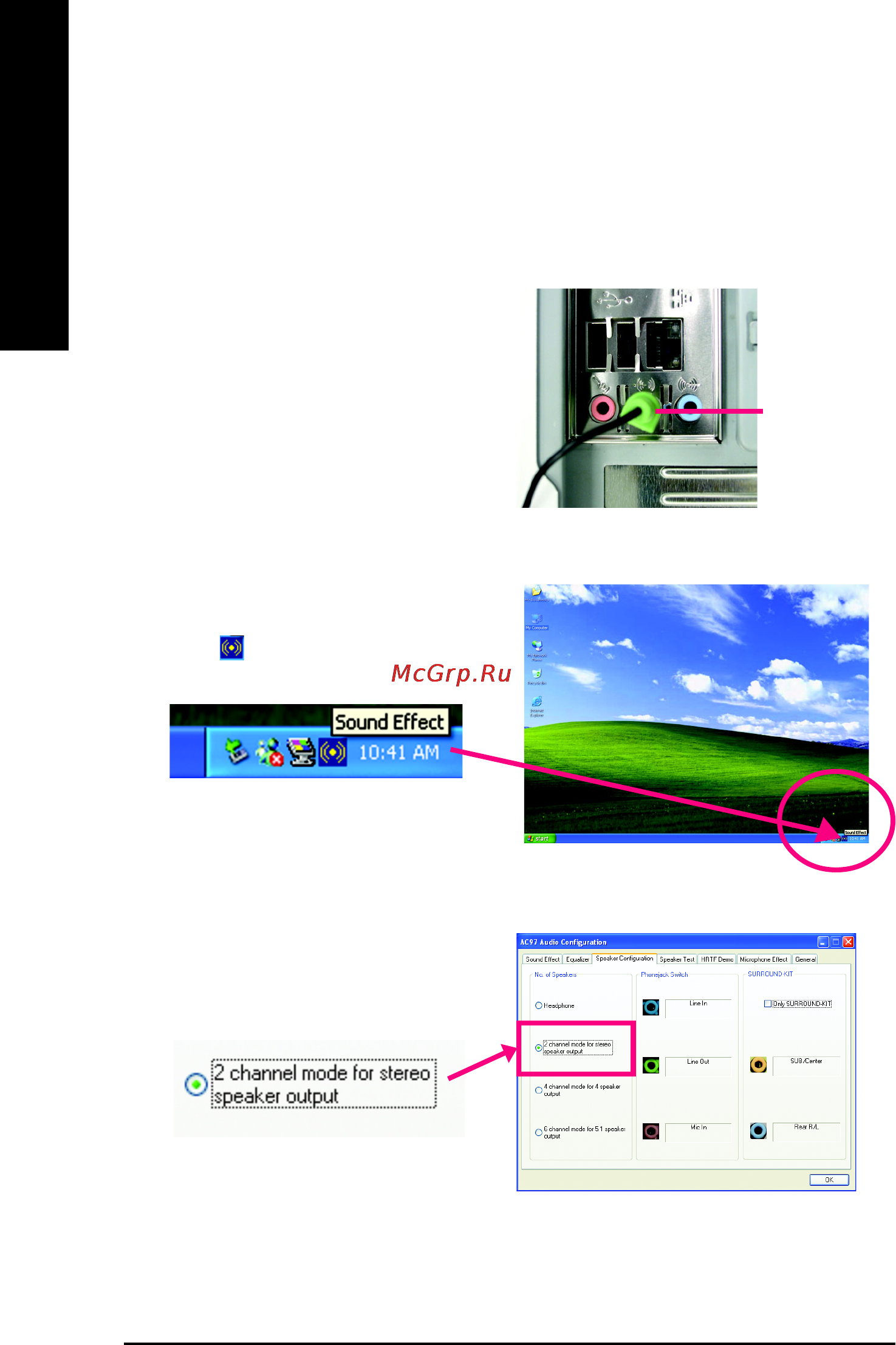

4-1-4 2 / 4 / 6 Channel Audio Function Introduction
STEP 1:
Connect the stereo speakers or earphone to "Line
Out" jack.
STEP 3:
On the AC97 Audio Configuration menu, click the
Speaker Configuration tab and select the 2 chan-
nel mode for stereo speaker output check box.
2 Channel Audio Setup
We recommend that you use the speaker with amplifier to acquire the best sound effect if the stereo
output is applied.
(Following pictures are in Windows XP)
Line Out
(speakers or
earphone)
STEP 2:
After installing the audio driver, you'll find a Sound
Effect icon on the lower right hand taskbar.
Click the icon to select the function.
