Connection

Precaution: Do not turn on the power of the player before all connections are done correctly.

Note: The diagram may be different from your DVD player; the connections are only for your

reference.

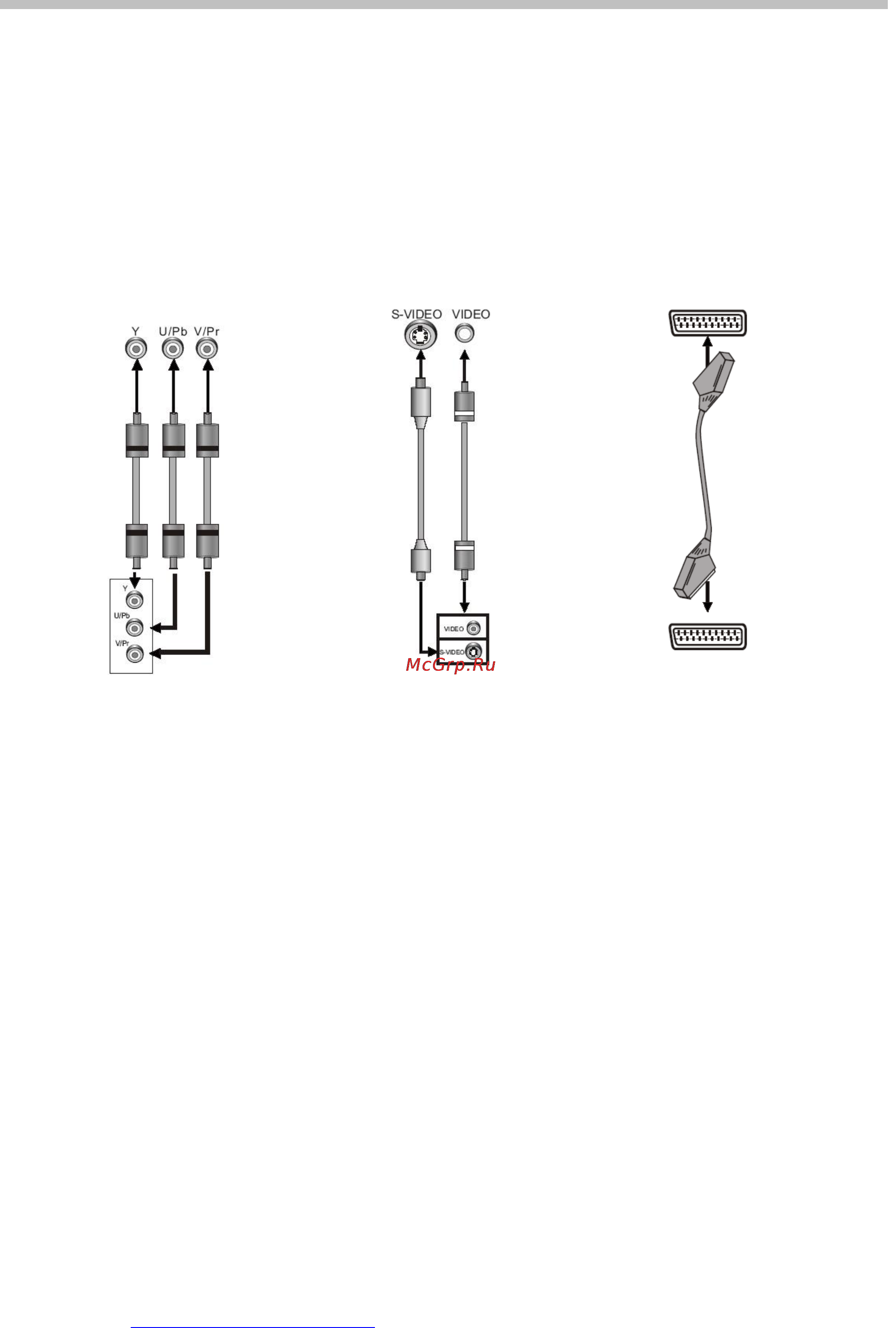

Video system connection

TV/Monitor video input

Component video Composite video and SCART input

input S-video input

Component video Composite video and SCART output

output S-video output

DVD player video output

These video outputs are available in this unit.

Composite video

Use the cable with yellow plug of an AV cable to connect the composite video output of this unit to

the video input of a TV/monitor.

Component video

Use a 3-core AV cable to connect the components outputs of this unit to the corresponding inputs of a

TV/monitor.

S-Video

Use an S-Video cable to connect the S-Video output of this unit to the S-Video input of a

TV/monitor.

SCART

Use a 21-pin SCART cable to connect the SCART output of this unit to the TV/monitor SCART

input.

Notes: The connection you should make depends on the TV/monitor input terminals. Don’t make all

the connections at the same time, otherwise the produced picture will be affected.
