28 Zebra ZXP Series 1 and ZXP Series 3 Ubuntu Driver User’s Manual P1075319-001

3 Magnetic Encoding

Magnetic Encoding Using Open Office

Direct Encoding

For writing data and reading encoded data.

• T

o Read Encoded Data: Click on the checkboxes to select Track 1, Track 2, and/or Track

3; click on the Read button, and validate the data read.

• To

Write Data: Click on the checkboxes to select Track 1, Track 2, and/or Track 3; enter

the data to be written following all the preconditions; and click on the Encode button.

• T

o Eject The Card: Click on the Eject Card button to eject the card.

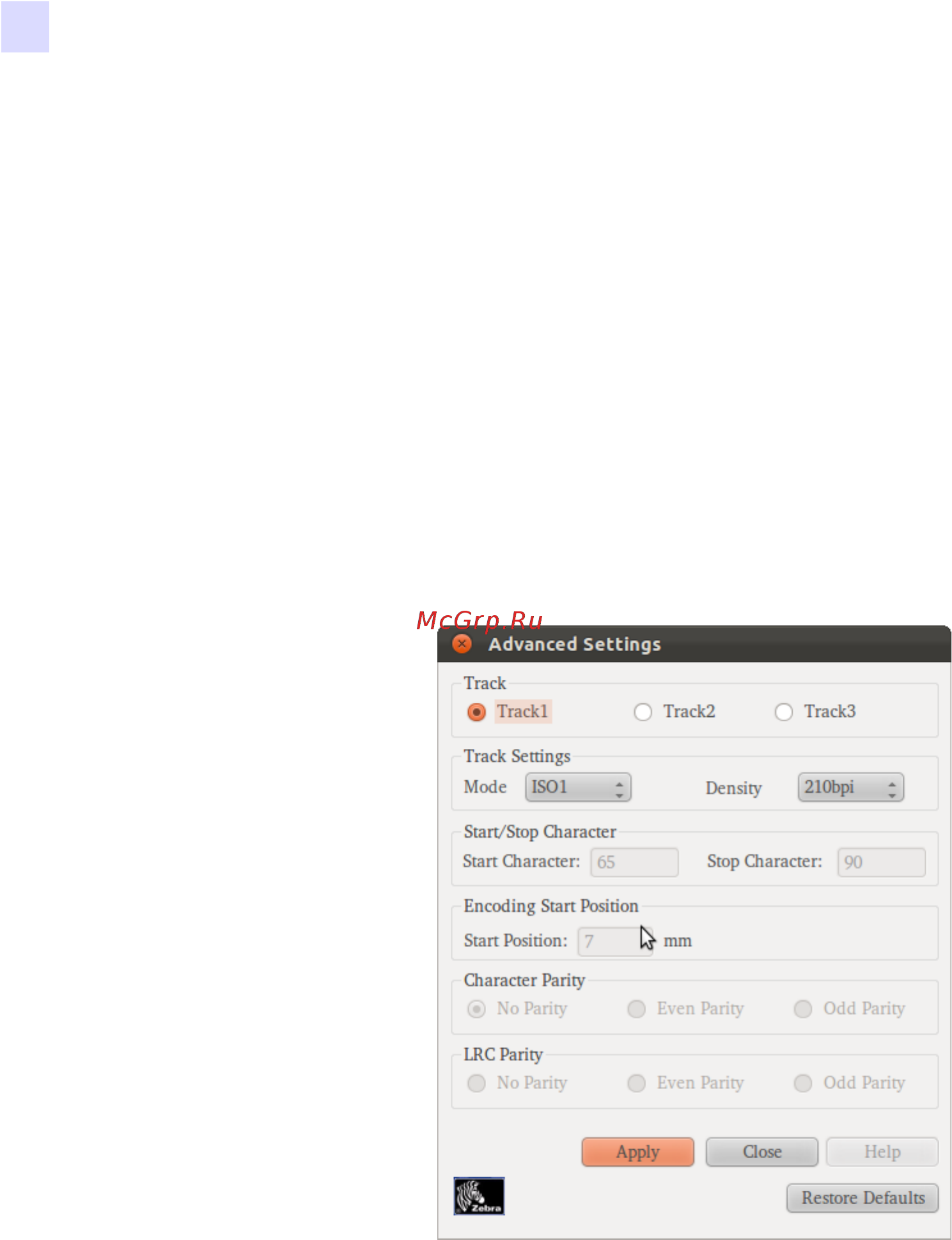

Advanced Settings: Ad

vanced Settings provides advanced configuration capabilities and

tools to manage magnetic encoder operation. This option is primarily used for selecting

advanced encoding options.

• Track: Select the track you want to configure.

• T

rack Settings: Select the Mode (ISO1, ISO2, ISO3, 3-bit, 4-bit, 5-bit, 6-bit, or 7-bit) and

Density (75bpi or 210 bpi) for the tracks.

Magnetic Encoding Using Open Office

Open any existing document with magnetic encoding data or create the new document.
