• Fan coil units • Wall mounted unit • FWT
15
• Fan coil units • Wall mounted unit • FWT

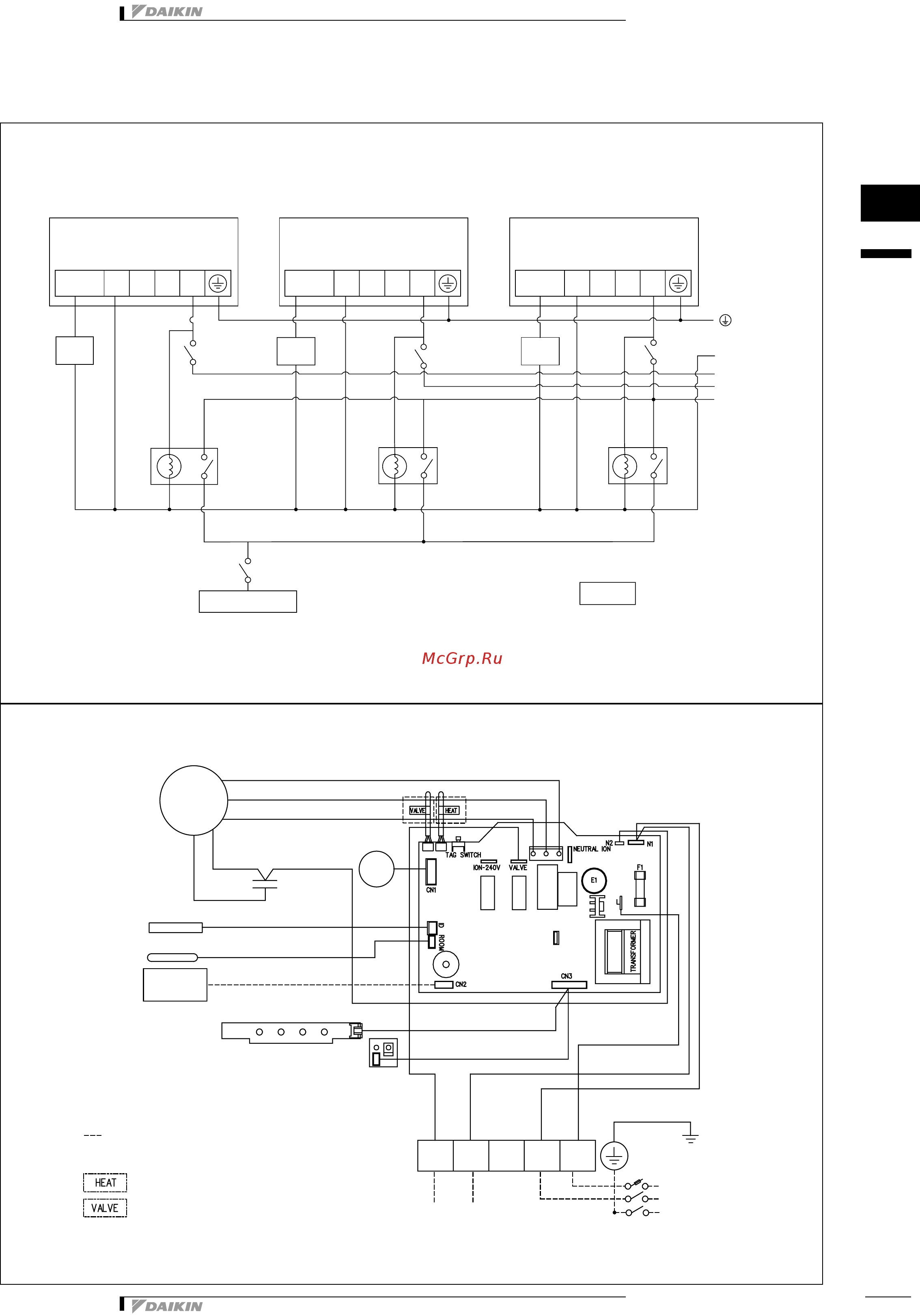

7 Wiring diagram
7 - 1 Wiring diagram
FWT02~06AATNMV1
FCU 3
VA LV E N
2
N
1
L
FCU 2
VA LV E N
2
N
1
L
FCU 1
VA LV E N
2
N
1
L
N
T
S
R
VW3VW3 3WV
3x2x1x
3WV
x1, x2, x3
Chiller
3 way valve
Relay (220-240V, 10A)
FWT02AATNMV1 / FWT03AATNMV1 / FWT04AATNMV1
ORANGE (LO)
BROWN (MED)
BLACK (HI)
VALVE
N2 N1 L
TO 3 WAY VALVE
220~240V AC
1 PHASE 50Hz
AS
FM
YELLOW/GREEN
INDOOR COIL THERMISTOR
ROOM THERMISTOR
IR BOARD
SLEEP COOL/HEAT TIMER ION
DISPLAY BOARD
BLUE BLUE
FAN MOTOR
CAPACITOR
RED
BLUE
RED
BLUE
PURPLE
- WITH JUMPER FOR HEAT PUMP
- WITHOUT JUMPER FOR COOLING ONLY
- WITH JUMPER FOR VALVE APPLICATION
- WITHOUT JUMPER FOR VALVELESS APPLICATION
PART NO: 08 02 4 091934
CAUTION !
FM : FAN MOTOR
AS : AIR SWING MOTOR
L
N
E
WIRED
CONTROLLER
FIELD INSTALLATION
