Hyundai H-DVD5036 [12/50] Connection

H-DVD5036 (www.hyundai-electronics.ru) 12

Connection

Precaution: Do not turn on the power of the player before all connections are done correctly.

Note: The diagram may be different from your DVD player; the connections are only for your

reference.

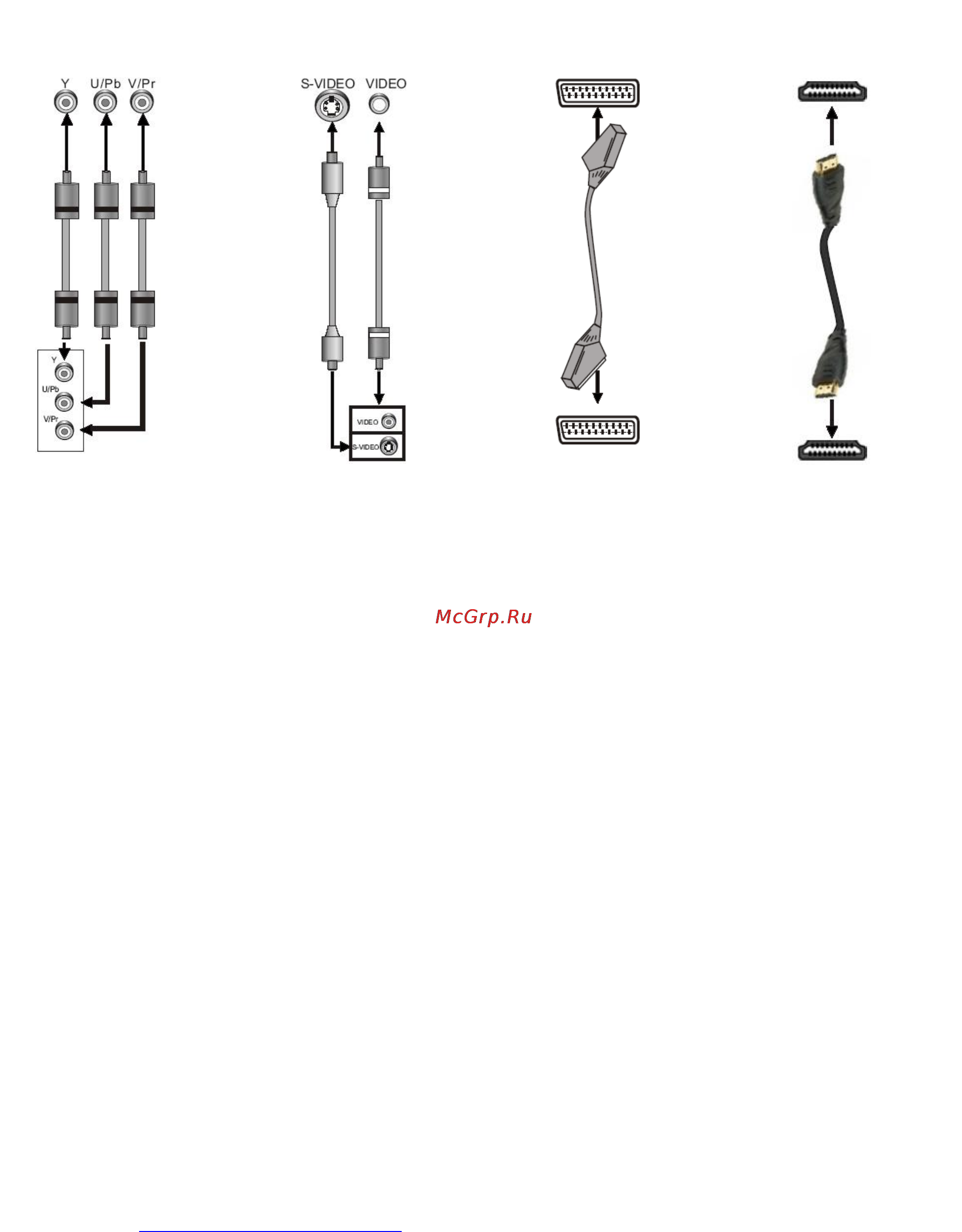

TV/Monitor video input

Component video Composite video and SCART input HDMI input

input S-video input

Component video Composite video and SCART output HDMI output

output S-video output

Video system connection

Five video outputs are available in this unit.

Composite video

Use the cable with yellow plug of an AV cable to connect the composite video output of this unit to

the video input of a TV/monitor.

S-Video

Use an S-Video cable to connect the S-Video output of this unit to the S-Video input of a

TV/monitor.

SCART

Use a 21-pin SCART cable to connect the SCART output of this unit to the TV/monitor SCART

input.

Component video

Use a 3-core AV cable to connect the components outputs of this unit to the corresponding inputs of a

TV/monitor.

HDMI

HDMI can transmit both audio and video signal over a single cable. HDMI output presents the

highest possible resolutions and video quality. If an HDMI input is available in your TV, use it.

Use a HDMI cable to connect the HDMI output of this unit to the HDMI input of a TV/monitor.
