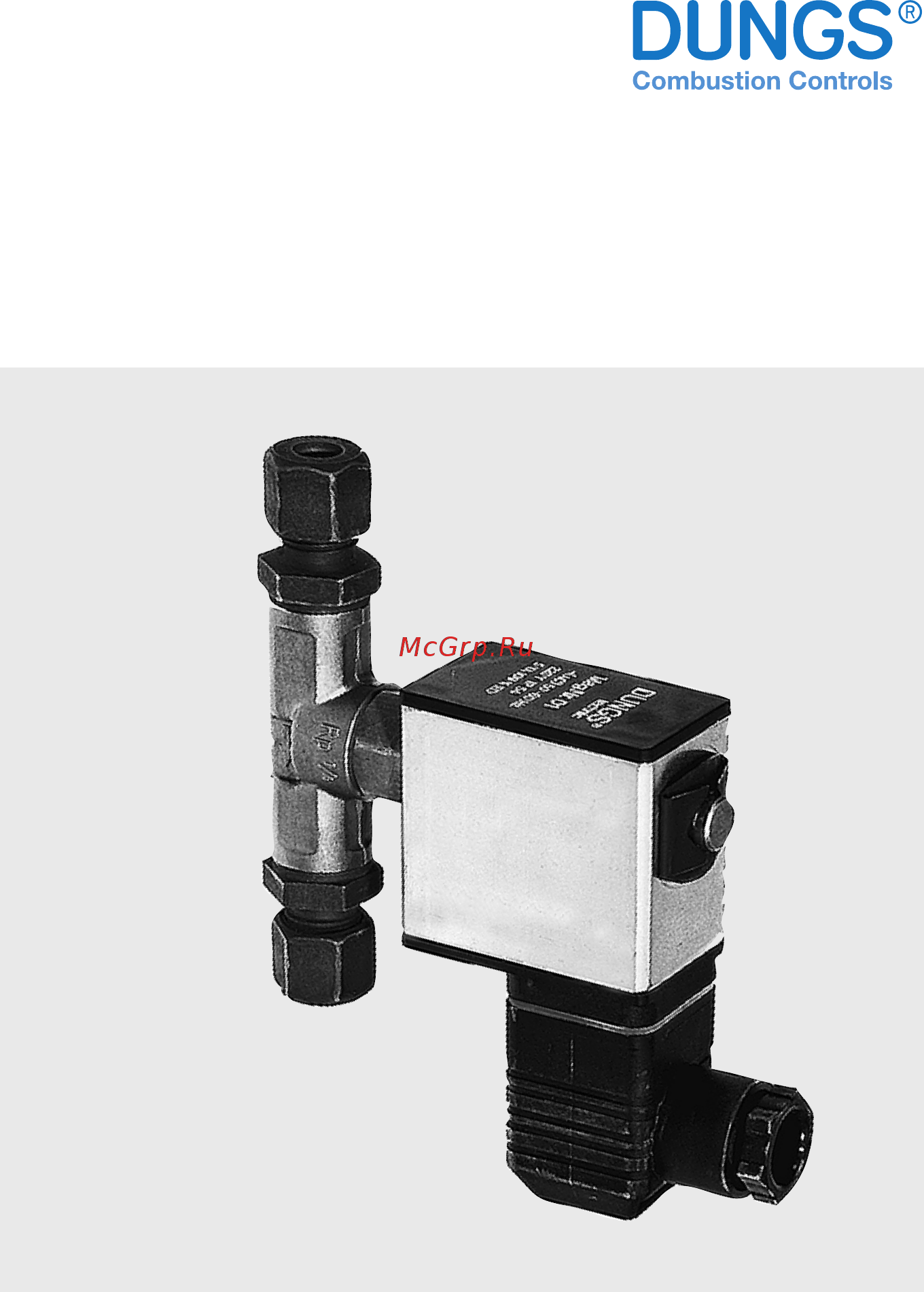

Safety solenoid valve,
ignition gas valve
MV 502
6.21
Technical description
The DUNGS safety solenoid valve MV
502 is a single-stage automatic shut-o
valve as per EN 161 for gas burners
and gas appliances.
-
Max. operating pressure up to 500 mbar
(50 kPa)
- Class A, Group 2 as per EN 161
- normally closed
- Fast opening
- Fast closing
- DC solenoid, rectier wiring and radio
interference suppression integrated
in solenoid housing
-
Electrical connection by plug connection
as per DIN EN 175 301-803 or xed con-
nected connection cable (1.300 mm)
- Optionally with tube screw union or
Rp 1/4 thread connection
- Reliable function, rugged and main-
tenance-free
Application
The MV 502 solenoid valves are suit-
able for shutting o and releasing gases
of families 1, 2, 3 and other neutral
gaseous media.
The MV 502 is used as ignition or start
gas valve.
Approvals
EC type test approval as per EC Gas
Appliance Directive:
MV 502 CE-0085AQ 0674
EC type test approval as per EC Pres-
sure Equipment Directive:
MV 502 CE 0036
Approvals in other important gas con-
suming countries.
